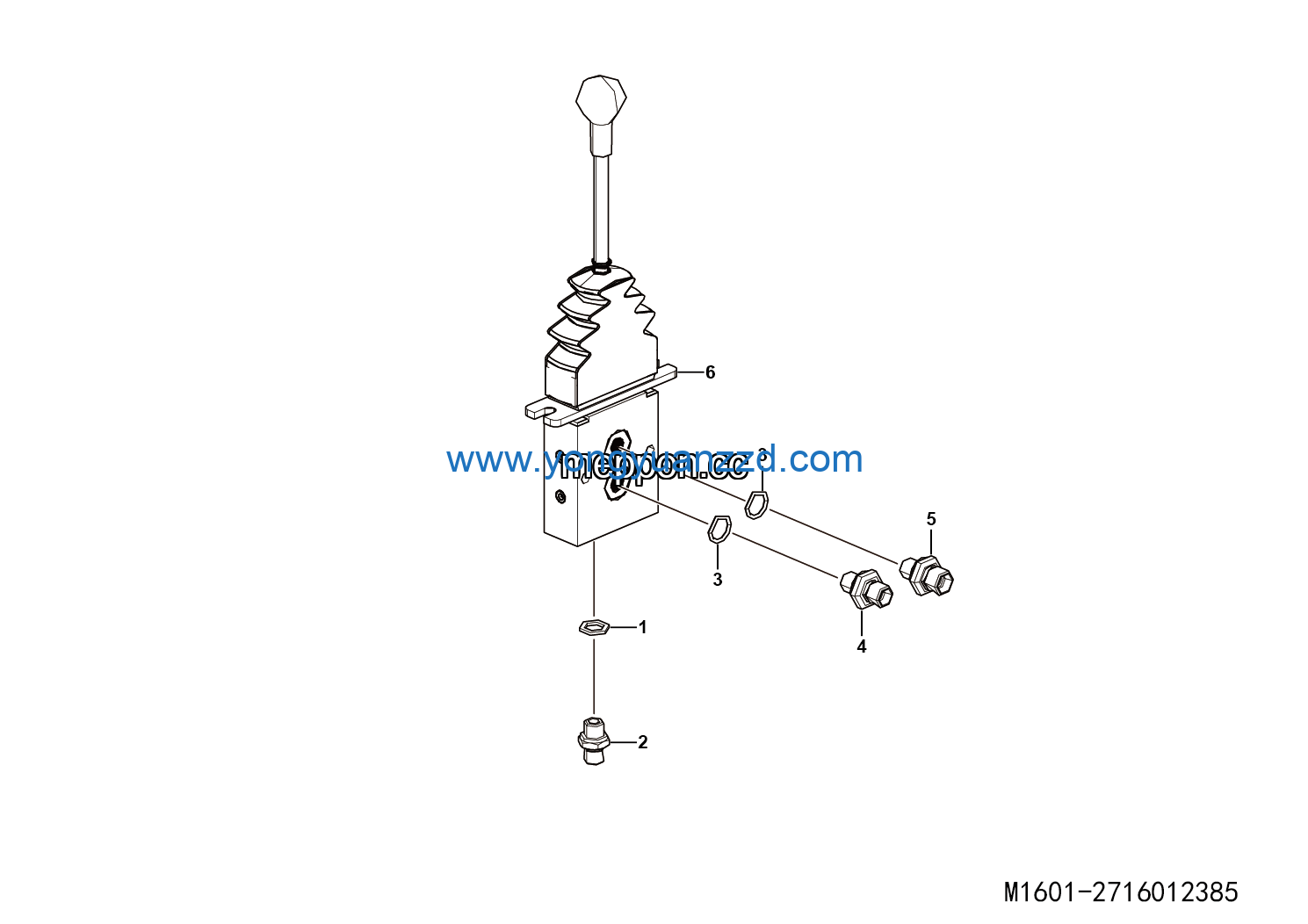

LGMG Off-Highway Dump Truck 2022 – ASM-Pilot valve assy – M1601-2716012385
Category: 2022 > Off-Highway Dump Truck > RT136 > R1260W3A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer | 29120014931 | 2 |
| 2 | Nipple | 29120015401 | 2 |
| 3 | O-ring GB3452.1-16.0*2.65G | 4030000020 | 2 |
| 4 | JOINT LGB155-01416 | 4041000035 | 1 |
| 5 | JOINT LGB155-01418 | 4041000208 | 1 |
| 6 | Pilot valve | 4120002227 | 1 |
