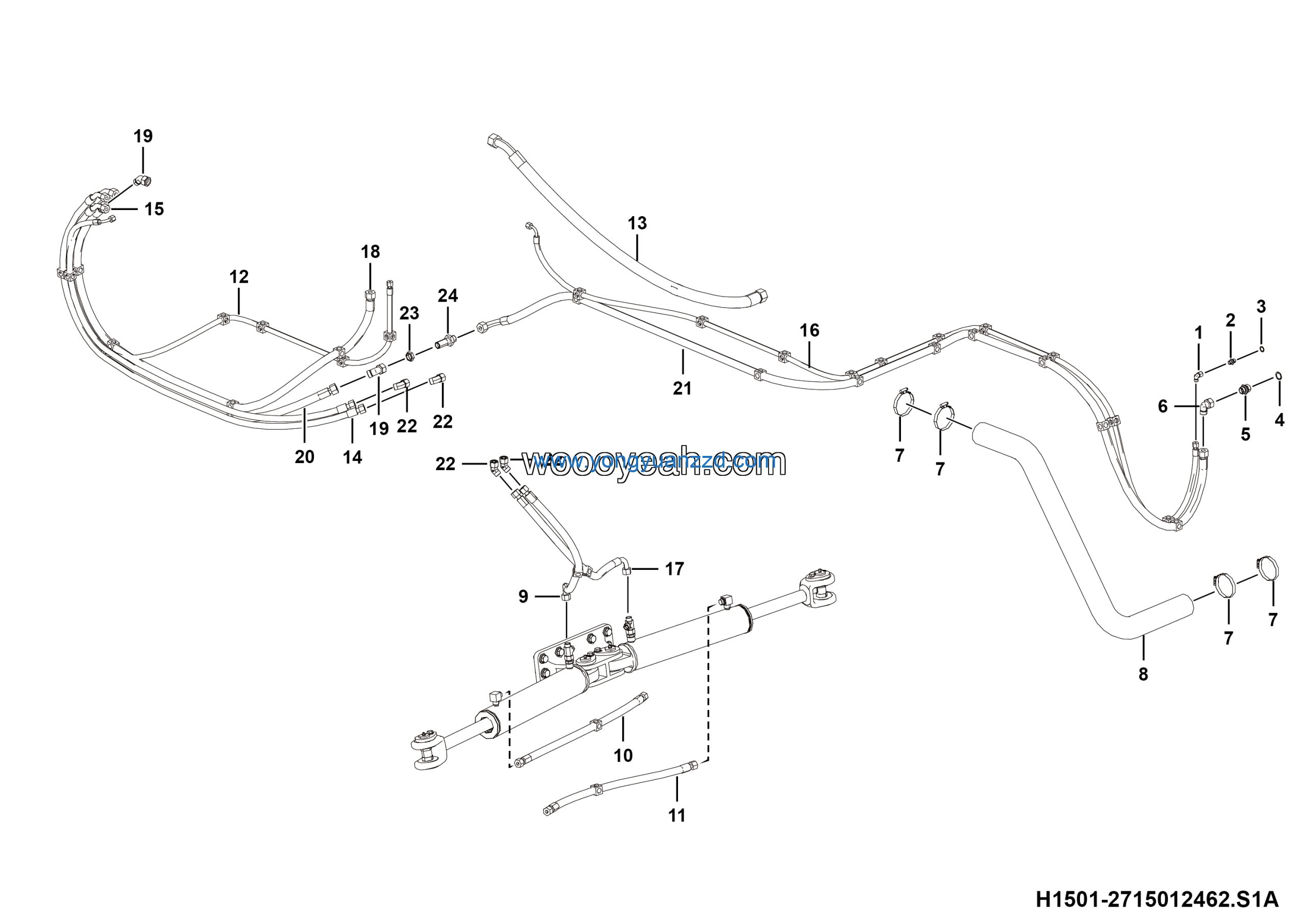

LGMG Off-Highway Dump Truck 2022 – ASM-Pipeline assy – H1501-2715012462.S1A
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M103
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose LGB127-206075 | 4041011075 | 1 |
| 2 | Hose LGB127-206075 | 4041011075-006 | 1 |
| 3 | Hose LGB125-003242 | 4041010340 | 1 |
| 4 | Hose-1250 | 27160116101 | 1 |
| 5 | Hose LGB129-006187 | 4041010379 | 1 |
| 6 | Hose LGB129-006187 | 4041010379-004 | 1 |
| 7 | Pipe | 4041010725 | 1 |
| 8 | Hose LGB128-006102 | 4041010404 | 1 |
| 9 | Hose LGB127-010210 | 4041001051 | 1 |
| 10 | Combination joint LGB143-12616 | 4041001417 | 2 |
| 11 | Combination joint LGB143-01406 | 4041001047 | 1 |
| 12 | Hose LGB166-010180 | 4041010169 | 1 |
| 13 | Hose LGB165-010400 | 4041010515 | 1 |
| 14 | Combination joint LGB143-12213 | 4041001218 | 4 |
| 15 | Nut | 27150103221 | 1 |
| 16 | Clapboard joint m26 | 27150116661 | 1 |
| 17 | Straight joint LGB120-01414 | 4041000133 | 1 |
| 18 | O-ring LGB168-11124 | 4041000767 | 1 |
| 19 | O-ring LGB168-12331 | 4041000779 | 1 |
| 20 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 21 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 22 | Hose clamp JB8870-D90 | 4017000013 | 4 |
| 23 | Hose | 27150124641 | 1 |
| 24 | Hose LGB128-006074 | 4041010405 | 1 |
