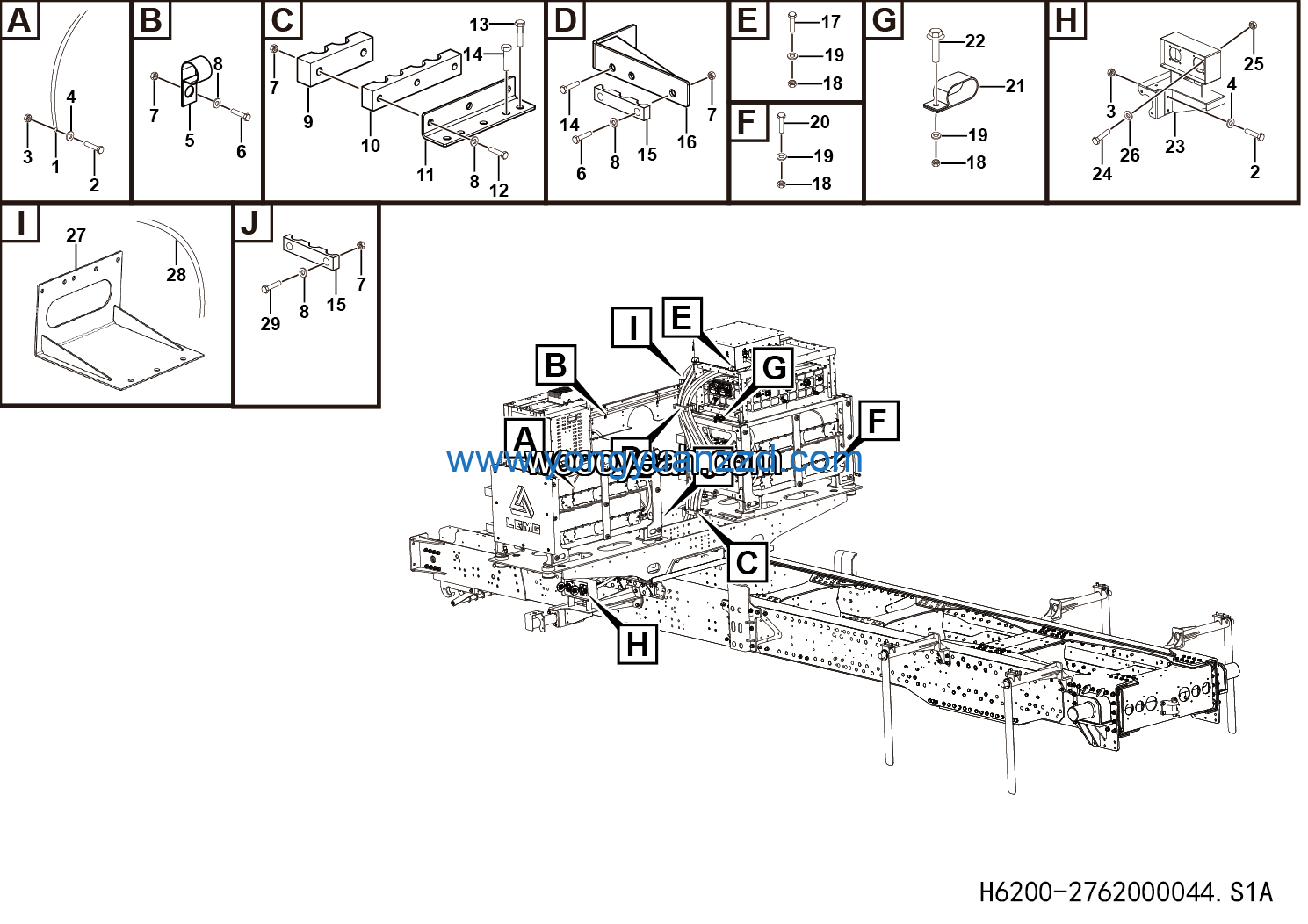

LGMG Off-Highway Dump Truck 2022 – Battery assy – H6200-2762000044.S1A
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HE0A2A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Row of tube-d-26d | 27200125631 | 8 |
| 2 | Bracket-85 | 27620000461 | 3 |
| 3 | Bolt GB5782-M10*30EpZn-8.8 | 4011010174 | 9 |
| 4 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 10 |
| 5 | Bolt GB5782-M10*125EpZn-8.8 | 4011010193 | 6 |
| 6 | Row of tubes | 27620000291 | 12 |
| 7 | Holder-200 | 27620000351 | 1 |
| 8 | Bolt GB5783-M12*25EpZn-10.9 | 4011000756 | 4 |
| 9 | Nut GB889.1-M12EpZn-10 | 4013010167 | 30 |
| 10 | Washer GB97.1-12EpZn-300HV | 4015000168 | 30 |
| 11 | Ground wire | 27340103011 | 4 |
| 12 | Bolt GB5782-M12*50EpZn-8.8 | 4011000064 | 24 |
| 13 | Pipe clamp LGB169-B25*12.5 | 4041010653 | 2 |
| 14 | Bolt GB5782-M12*35EpZn-8.8 | 4011000061 | 2 |
| 15 | Holder | 27200123531 | 1 |
| 16 | Bolt GB5782-M6*30-8.8 | 4011000712 | 1 |
| 17 | Nut GB889.1-M6EpZn-8 | 4013000211 | 1 |
| 18 | Washer GB97.1-6EpZn-300HV | 4015000207 | 1 |
| 19 | Bracket assembly | 27620000491 | 1 |
| 20 | Wire | 27620000171 | 1 |
| 21 | Bolt GB5782-M10*130EpZn-8.8 | 4011000535 | 4 |
| 22 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 11 |
| 23 | Nut GB889.1-M8EpZn-8 | 4013000210 | 4 |
| 24 | Washer GB97.1-8EpZn-300HV | 4015000072 | 9 |
| 25 | Pipe clamp LGB169-A20*12.5 | 4041010363 | 18 |
| 26 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 11 |
| 27 | Nut GB889.1-M10EpZn-8 | 4013000189 | 43 |
| 28 | Washer GB97.1-10EpZn-300HV | 4015000162 | 43 |
| 29 | Row of tube-b-26d | 27200125611 | 8 |
