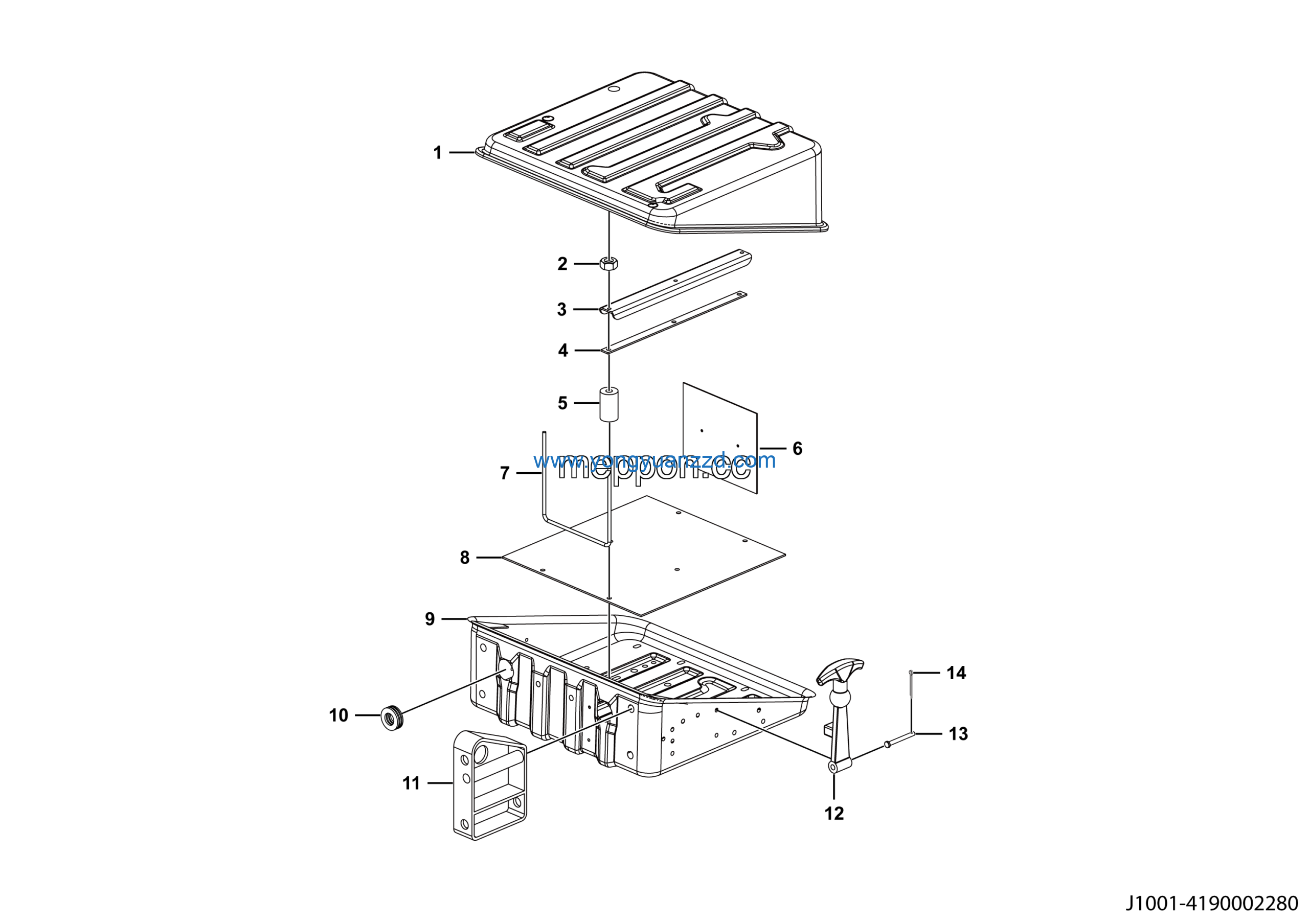

LGMG Off-Highway Dump Truck 2022 – Battery box assy – J1001-4190002280
Category: 2022 > Off-Highway Dump Truck > – > M096DW3A0M006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Threading sheath | 4120000222 | 1 |
| 2 | Battery box bracket | 4110000027 | 2 |
| 3 | Rubber hook | 4110000028 | 2 |
| 4 | Pin GB882-B4*50EpZn-35 | 4016010103 | 2 |
| 5 | Pin GB91-1*10EpZn-Q235A | 4016000096 | 2 |
| 6 | Battery box cover | 4110000026 | 1 |
| 7 | Nut GB6177.1-M8EpZn-8 | 4013010186 | 6 |
| 8 | Bracket | 27100105511 | 2 |
| 9 | Tighten supporting plate | 27100105501 | 2 |
| 10 | The bolt damping block | 27100105471 | 12 |
| 11 | Rubber plate in middle | 27100105491 | 1 |
| 12 | U bolt | 27100105521 | 3 |
| 13 | tube plate | 27100105481 | 1 |
| 14 | Battery box | 4190002281 | 1 |
