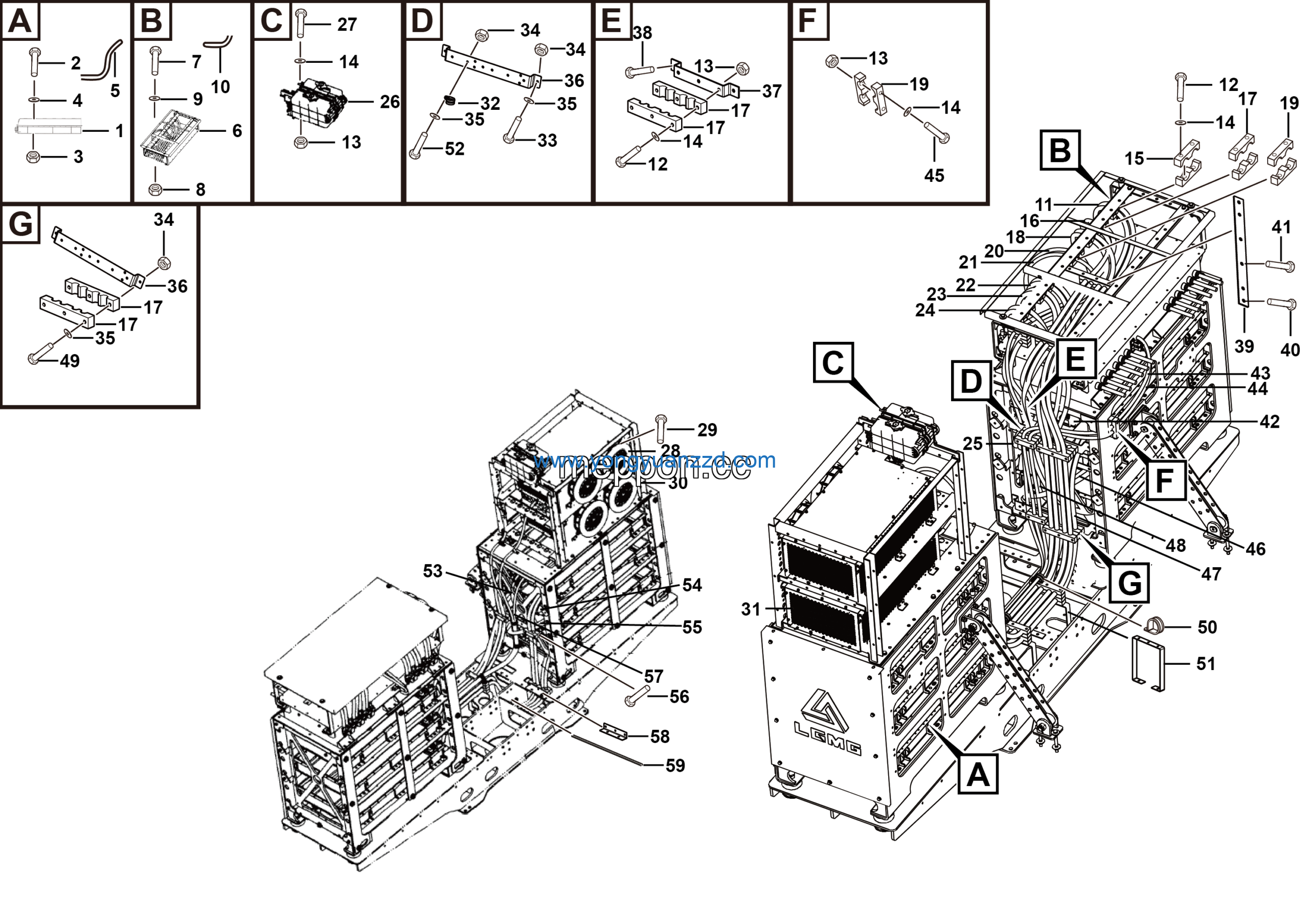

LGMG Off-Highway Dump Truck 2022 – Battery systen assy – K2001-2720012588.S1A
Category: 2022 > Off-Highway Dump Truck > MTE108 > -C1080W3A0M301
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Power cord P70*700 | 27340100221 | 1 |
| 2 | PDU Main Line 1 | 4130704626 | 1 |
| 3 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 15 |
| 4 | Nut GB889.1-M10EpZn-8 | 4013000189 | 54 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 108 |
| 6 | Row of tube-b-26d | 27200125611 | 12 |
| 7 | PDU Main Line 3 | 4130704633 | 1 |
| 8 | Row of tube-d-26d | 27200125631 | 32 |
| 9 | PDU Main Line 2 | 4130704629 | 1 |
| 10 | Row of tube-b-20d | 27200125621 | 10 |
| 11 | Baterry box(156S)RTH120 | 4130703736 | 6 |
| 12 | PDU Heating line 1 | 4130704625 | 1 |
| 13 | PDU Heating line 2 | 4130704628 | 1 |
| 14 | PDU Total negative line 2 | 4130704630 | 1 |
| 15 | PDU Total negative line 3 | 4130704634 | 1 |
| 16 | PDU Total negative line 1 | 4130704627 | 1 |
| 17 | 1A to 1C Heating series line | 4130704636 | 1 |
| 18 | Liquid cooling assy water tank | 4130704393 | 2 |
| 19 | Bolt GB5782-M10*250EpZn-8.8 | 4011001008 | 3 |
| 20 | Battery liquid cooling ZT020116 | 4130704392 | 1 |
| 21 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 16 |
| 22 | Bolt GB5783-M14*35EpZn-10.9 | 4011000540 | 36 |
| 23 | Battery liquid cooling ZT020116-B | 4130704404 | 1 |
| 24 | Liquid cooling assy grounding wire XS010073 | 4130704405 | 2 |
| 25 | Pipe clamp LGB169-A20*12.5 | 4041010363 | 5 |
| 26 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 6 |
| 27 | Nut GB889.1-M8EpZn-8 | 4013000210 | 26 |
| 28 | Washer GB97.1-8EpZn-300HV | 4015000072 | 52 |
| 29 | Vent tank stents1 | 27200124461 | 3 |
| 30 | Support 8 | 27200122671 | 1 |
| 31 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 10 |
| 32 | Holder pdu | 27200125641 | 1 |
| 33 | Nut GB6170-M14EpZn-10 | 4013010010 | 36 |
| 34 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 35 | Bolt GB5782-M10*130EpZn-8.8 | 4011000535 | 22 |
| 36 | MSD SNCBFD-M-P-500-M | 4130703951 | 3 |
| 37 | Air conditioning high voltage line 1 | 4130704631 | 1 |
| 38 | Air conditioning high voltage line 2 | 4130704632 | 1 |
| 39 | Bolt GB5782-M10*80EpZn-8.8 | 4011000503 | 2 |
| 40 | C Group high-voltage series line | 4130704641 | 1 |
| 41 | A-High voltage series line | 4130704635 | 1 |
| 42 | 1C to 2C Heating series line | 4130704640 | 1 |
| 43 | Bolt GB5782-M8*120EpZn-8.8 | 4011000697 | 8 |
| 44 | Washer GB96.1-14EpZn-300HV | 4015000188 | 72 |
| 45 | Pipe clamp LGB169-A40*12.5 | 4041010917 | 4 |
| 46 | Holder-170 | 27200125651 | 2 |
| 47 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 3 |
| 48 | 2A to 1B Heating series line | 4130704637 | 1 |
| 49 | MSD(SNCBFD-M-P-000-H) | 4130703731 | 3 |
| 50 | B Group high-voltage series line | 4130704638 | 1 |
| 51 | Bolt GB5783-M8*75EpZn-8.8 | 4011000781 | 9 |
| 52 | 1B to 2B Heating series line | 4130704639 | 1 |
| 53 | Holder | 27200125871 | 1 |
| 54 | Protecting bush | 27200123791 | 1 |
| 55 | Wire | 27200122751 | 6 |
