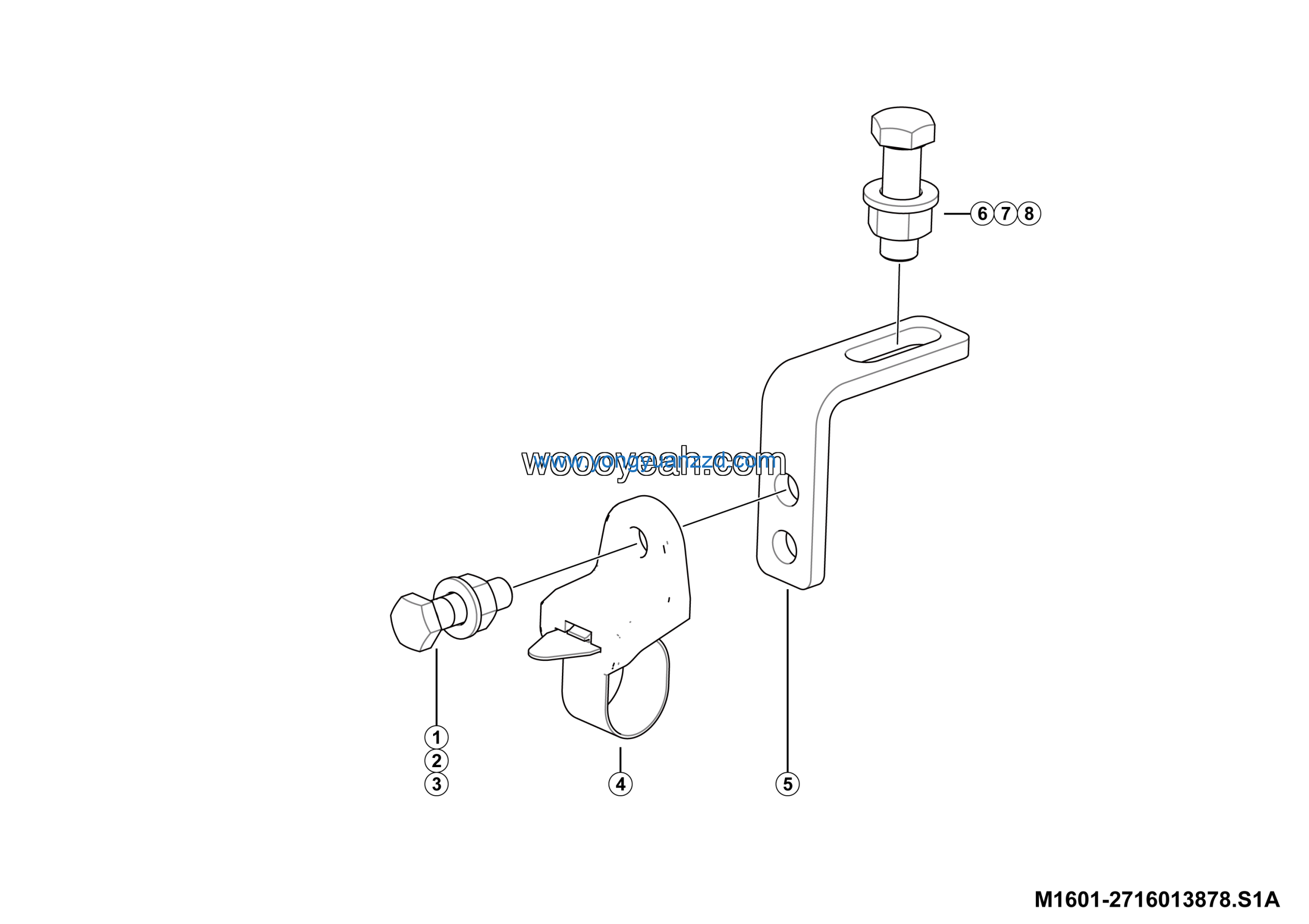

LGMG Off-Highway Dump Truck 2022 – Bracket assy – M1601-2716013878.S1A
Category: 2022 > Off-Highway Dump Truck > MT86D > M086DWAM2-2
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 3 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 4 | Cable tie HS-J117 | 4130704969 | 1 |
| 5 | Bracket 70*25*70 | 27160138571 | 1 |
| 6 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 1 |
| 7 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 8 | Nut GB6170-M12EpZn-8 | 4013000011 | 1 |
