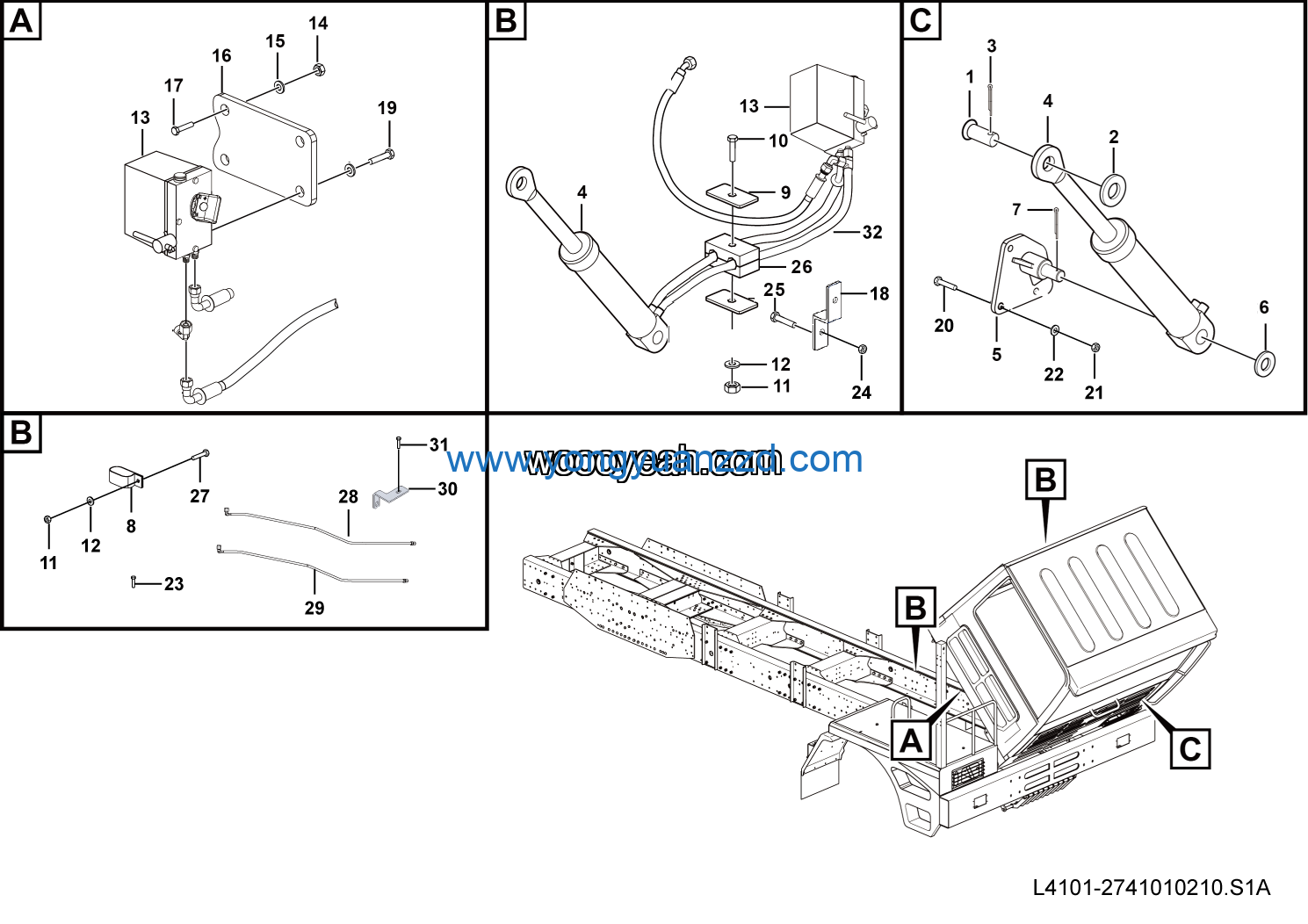

LGMG Off-Highway Dump Truck 2022 – Cab fliping hydraulic assy – L4101-2741010210.S1A
Category: 2022 > Off-Highway Dump Truck > MT106HF > M106HW4A0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 3 |
| 2 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 4 | Hand pump | 4120001103 | 1 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 7 | Hand pump mounting plate | 27410100601 | 1 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 9 | Bracket | 27410101421 | 3 |
| 10 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 11 | Pin GB882-B22*75EpZn-35 | 4016010114 | 1 |
| 12 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 3 |
| 13 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 3 |
| 14 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 3 |
| 15 | Bolt GB5783-M10*55flZnyc-8.8-480 | 4011010952 | 1 |
| 16 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 3 |
| 17 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 2 |
| 18 | Plate | 27410101502 | 4 |
| 19 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 2 |
| 20 | Pipe | 27410102111 | 1 |
| 21 | Pipe | 27410102131 | 1 |
| 22 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 23 | Plate | 27410102151 | 1 |
| 24 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 1 |
| 25 | Pipe | 27410102161 | 2 |
| 26 | Pin GB91-5*45EpZn-Q235A | 4016010004 | 1 |
| 27 | Cab overturning cylinder | 4120001145 | 1 |
| 28 | Seat | 27410101401 | 1 |
| 29 | Washer GB97.1-24EpZn-300HV | 4015000167 | 1 |
| 30 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 1 |
| 31 | Twin tube clamp | 4120002035 | 3 |
| 32 | Cover plate | 27410100861 | 5 |
