LGMG Off-Highway Dump Truck 2022 – Chassis electric system – K2003-2720010750
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HWD96

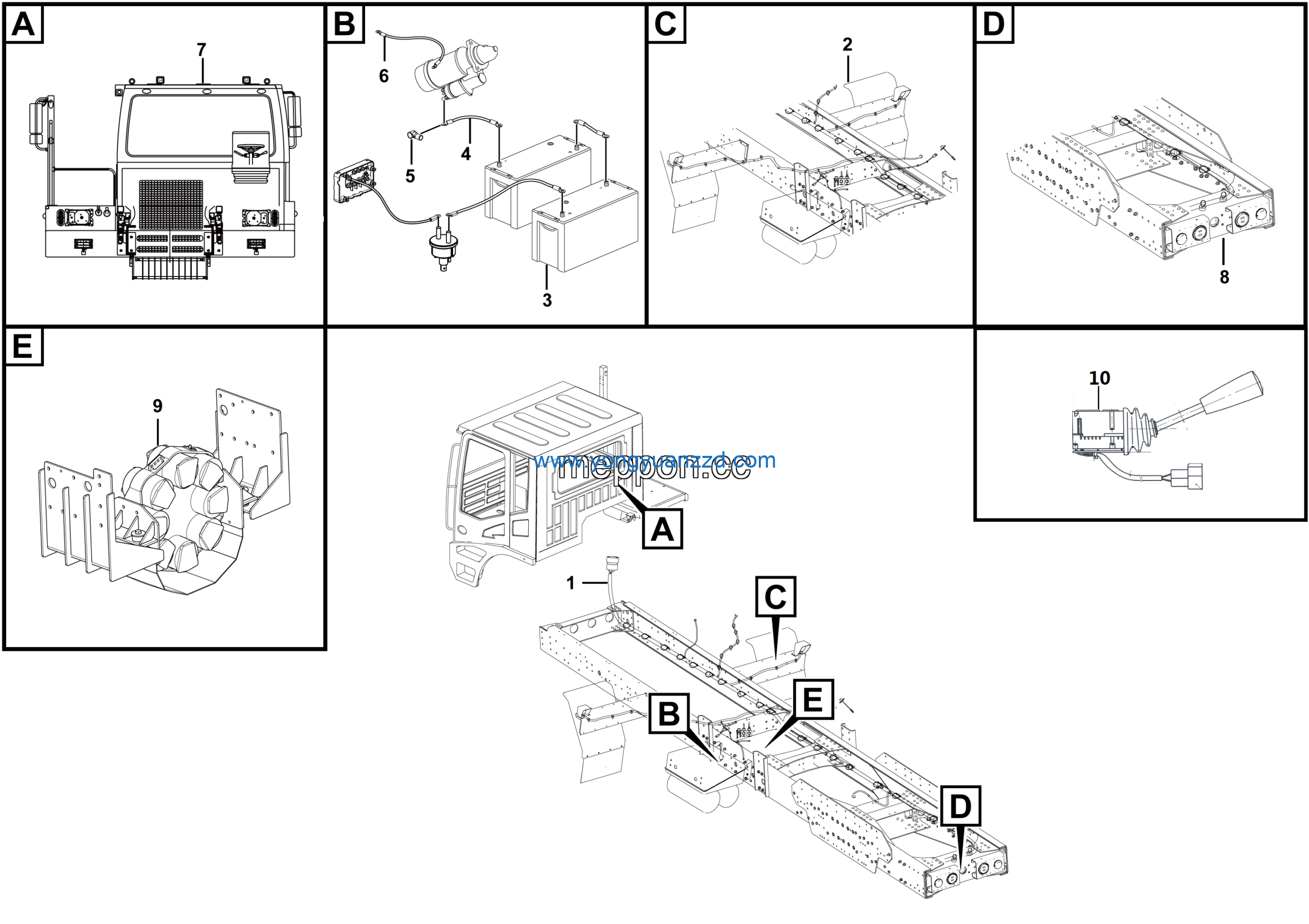

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Exhaust brake switch | 4130000701 | 1 |
| 2 | Wire | 27200108062 | 1 |
| 3 | Frame central electrical module | 27200107521 | 1 |
| 4 | Electrical module | 27200107511 | 1 |
| 5 | Battery wire p70*3900 | 27200106551 | 1 |
| 6 | Red battery cable sheath | 26370002451 | 1 |
| 7 | Wire p70*550 | 27200111461 | 1 |
| 8 | Electrical module | 27200107261 | 1 |
| 9 | Signal module | 27200115241 | 1 |
| 10 | Electrical system | 27370102081 | 1 |
