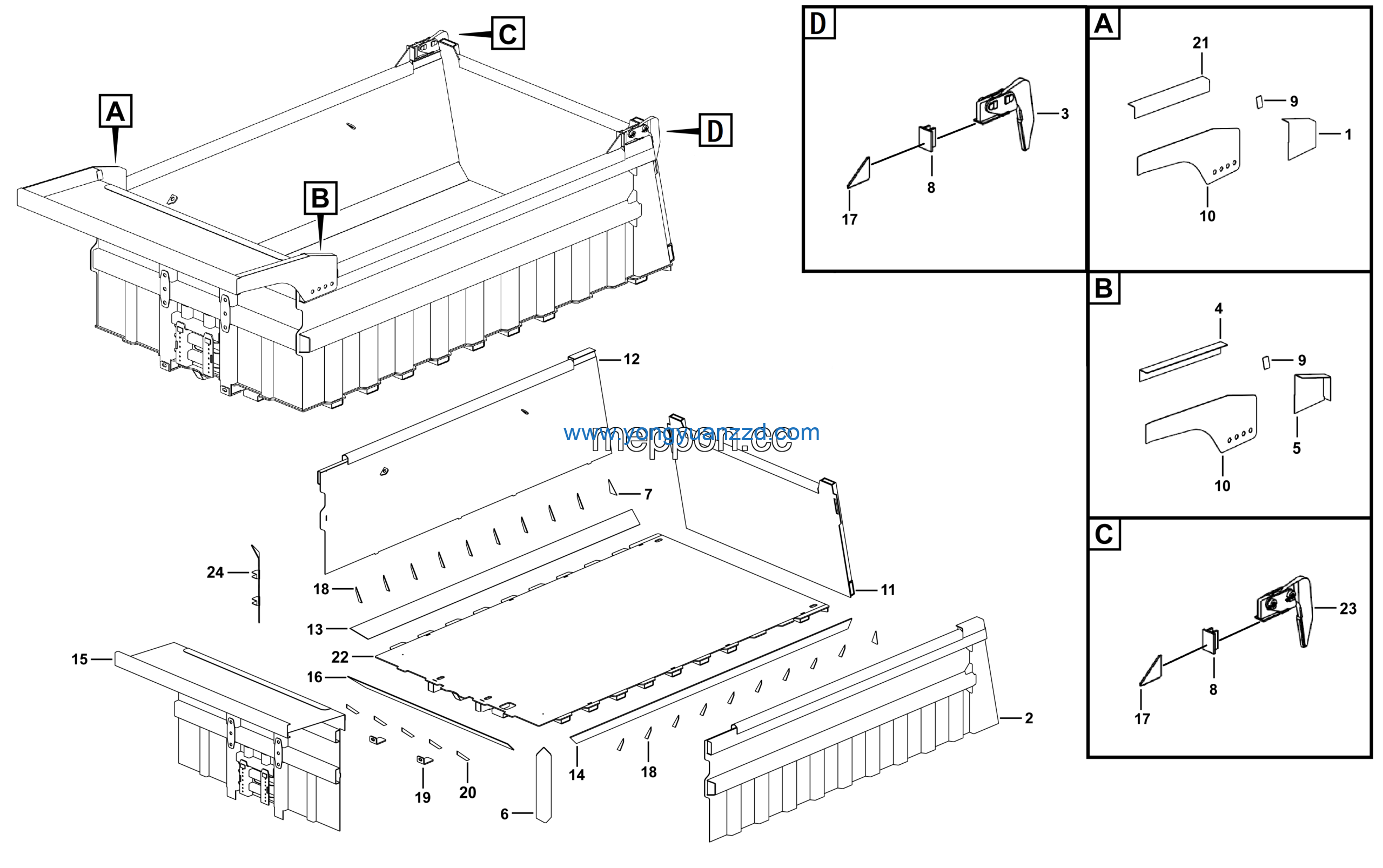

LGMG Off-Highway Dump Truck 2022 – Container – P1703-2717032177
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0M034
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27170243401 | 2 |
| 2 | Plate | 27170322481 | 1 |
| 3 | Right side plate assembly | 27170321821 | 1 |
| 4 | Plate | 27170321241 | 1 |
| 5 | Guide plate flr lh | 27170321231 | 1 |
| 6 | Front plate assembly | 27170321832 | 1 |
| 7 | Plate | 27170237701 | 1 |
| 8 | Plate | 27170242771 | 2 |
| 9 | Plate | 27170132841 | 18 |
| 10 | Plate | 27170166571 | 2 |
| 11 | Plate | 27170243461 | 1 |
| 12 | Plate | 27170133001 | 5 |
| 13 | Plate | 27170243451 | 1 |
| 14 | Flr plate assembly | 27170320981 | 1 |
| 15 | Right gemel assembly | 27170241392 | 1 |
| 16 | Plate | 27170158591 | 1 |
| 17 | Left side plate assembly | 27170321811 | 1 |
| 18 | Left gemel assembly | 27170241382 | 1 |
| 19 | Plate | 27170243411 | 1 |
| 20 | Plate | 27170243421 | 1 |
| 21 | Plate | 27170158581 | 1 |
| 22 | Plate | 27170146871 | 2 |
| 23 | Part assembly | 27170238211 | 2 |
| 24 | Plate | 27170317491 | 2 |
