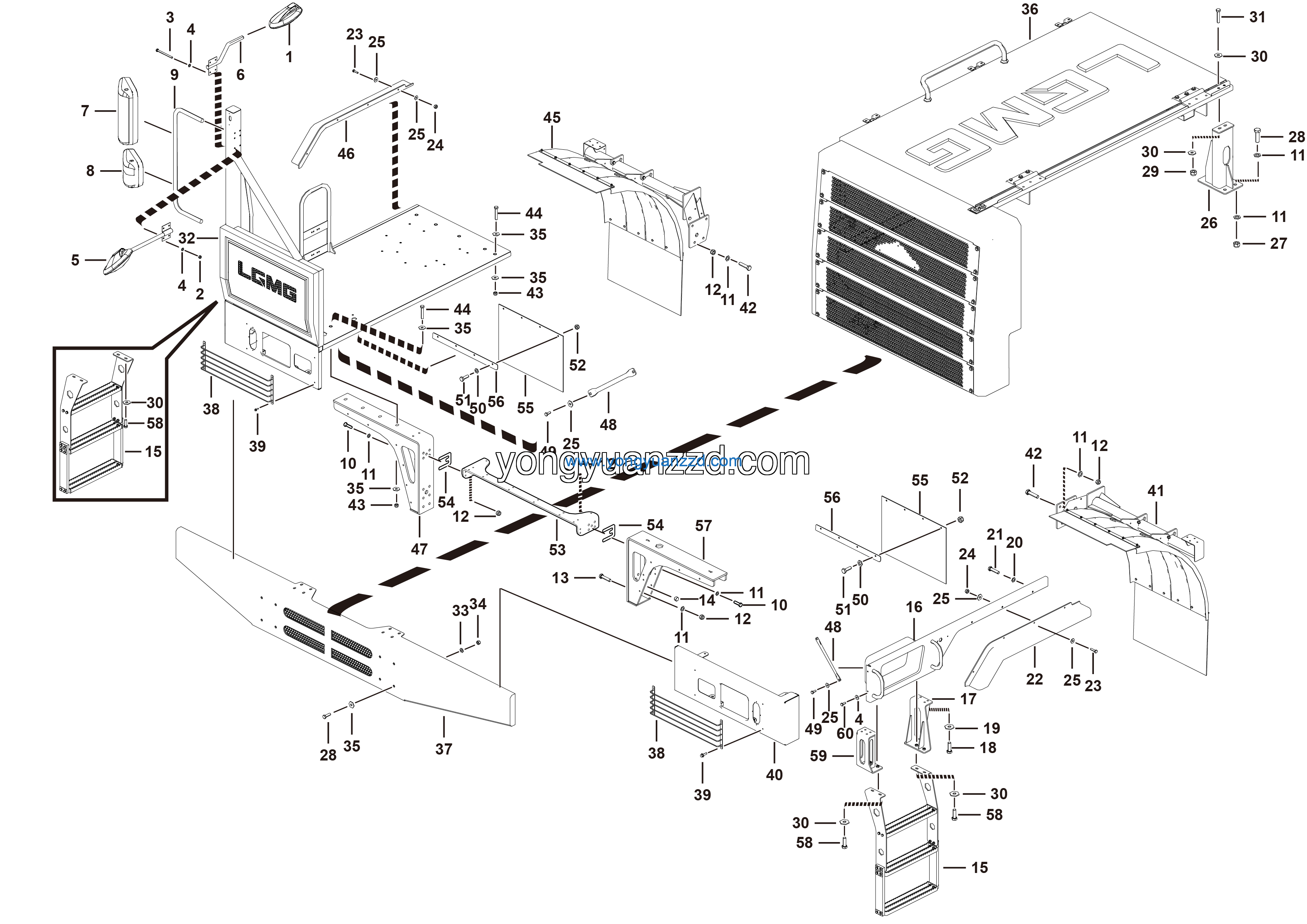

LGMG Off-Highway Dump Truck 2022 – Covering assy – L3601-2736014465
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A2A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M16*55EpZn-10.9 | 4011000562 | 10 |
| 2 | Washer GB97.1-16EpZn-300HV | 4015000181 | 38 |
| 3 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 30 |
| 4 | Bolt GB5783-M16*65EpZn-10.9 | 4011000665 | 12 |
| 5 | Cushion block | 27120113681 | 2 |
| 6 | Plate | 27360142511 | 2 |
| 7 | Sub-panel wing lh weldment | 27360144761 | 1 |
| 8 | Weldment | 27360137481 | 1 |
| 9 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 8 |
| 10 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 11 | Round mirror WS33002550051 | 4190703756 | 1 |
| 12 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 13 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 4 |
| 14 | Left wheel cover | 27360126341 | 1 |
| 15 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 12 |
| 16 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 17 | Washer GB96.1-8EpZn-300HV | 4015000256 | 20 |
| 18 | Plate | 27360139951 | 1 |
| 19 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 4 |
| 20 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 12 |
| 21 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 22 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 6 |
| 23 | Washer GB96.1-12EpZn-300HV | 4015000186 | 12 |
| 24 | Bolt GB5783-M12*60EpZn-8.8 | 4011000284 | 2 |
| 25 | Platform welding | 27360144501 | 1 |
| 26 | Washer GB1230-16EpZn-45 | 4015000001 | 8 |
| 27 | Nut GB6170-M16EpZn-8 | 4013000016 | 8 |
| 28 | Washer GB96.1-16EpZn-300HV | 4015000279 | 26 |
| 29 | Engine compartment installation assembly | 27360144351 | 1 |
| 30 | Cover | 27360139901 | 1 |
| 31 | Headlight guard | 27360131022 | 2 |
| 32 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 33 | Bolt GB5782-M8*100EpZn-8.8 | 4011000720 | 6 |
| 34 | Weldment | 27360142431 | 1 |
| 35 | Mudguard lh assembly | 27360144731 | 1 |
| 36 | Bolt GB5783-M16*65EpZn-8.8 | 4011000421 | 8 |
| 37 | Nut GB6185.2-M16*1.5EpZn-10 | 4013010171 | 9 |
| 38 | Bolt GB5785-M16*1.5*90EpZn-10.9 | 4011000879 | 9 |
| 39 | Mudguard rh assembly | 27360144671 | 1 |
| 40 | Right wheel cover | 27360126331 | 1 |
| 41 | Plate | 27360137421 | 1 |
| 42 | Pipe | 27360131111 | 2 |
| 43 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 44 | Washer GB97.1-8EpZn-300HV | 4015000072 | 18 |
| 45 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 46 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 8 |
| 47 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 48 | Plate | 27360140031 | 1 |
| 49 | Washer | 27360131421 | 2 |
| 50 | Plate | 27360144611 | 2 |
| 51 | Plate | 27360144621 | 2 |
| 52 | Plate | 27360137411 | 1 |
| 53 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 8 |
| 54 | Weldment | 27360137471 | 1 |
| 55 | RH blind mirror | 4190002282 | 1 |
| 56 | Bolt GB5783-M8*20-8.8 | 4011000723 | 2 |
| 57 | FR mirror support | 4190703758 | 1 |
| 58 | Main rearview mirror WS33002550049 | 4190703754 | 1 |
| 59 | Wide angle rearview mirror WS33002550050 | 4190703755 | 1 |
| 60 | Post mirror bracket（LH）WS33002550044 | 4190703718 | 1 |
