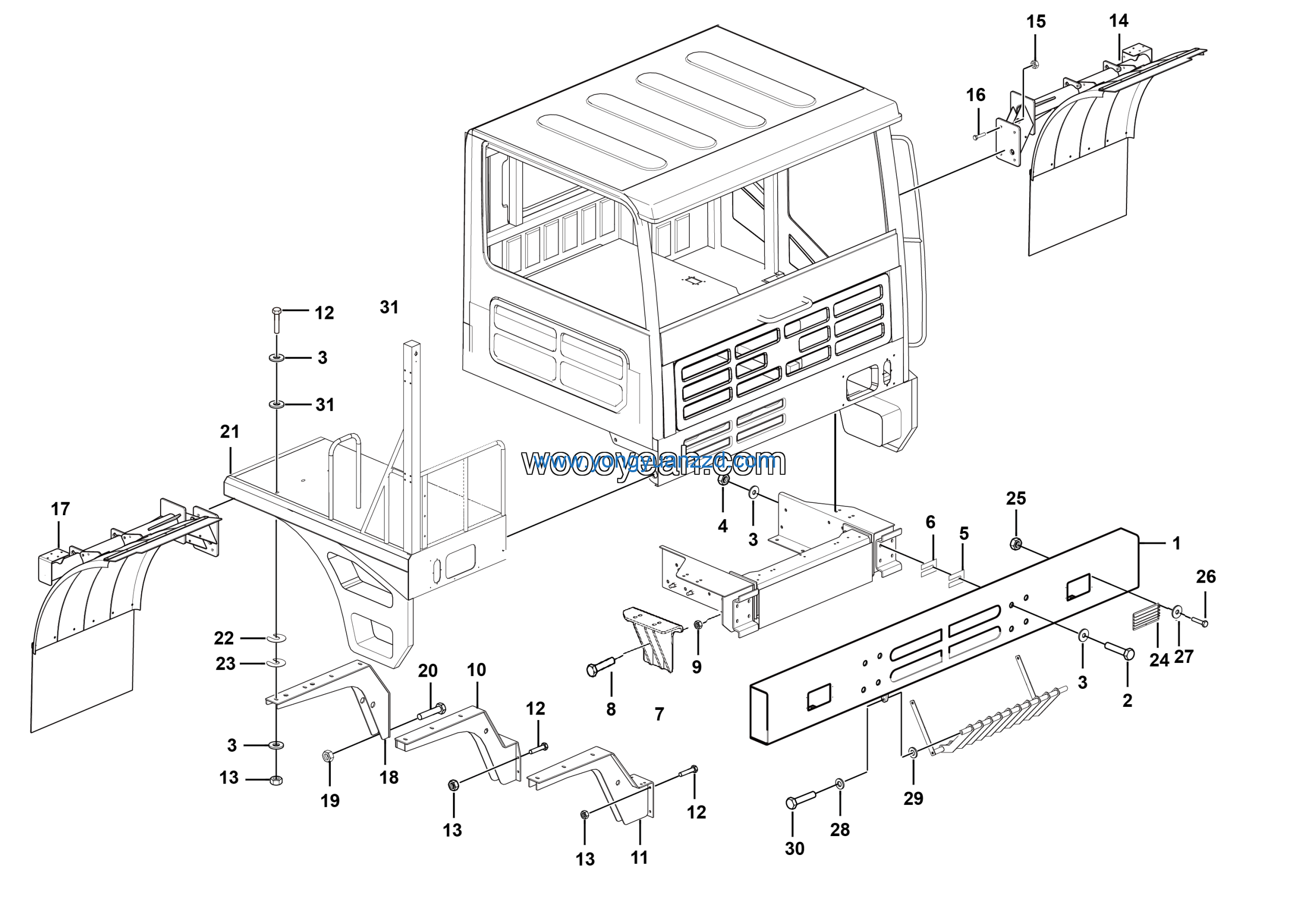

LGMG Off-Highway Dump Truck 2022 – Covering assy – L3604-2736011327-G1
Category: 2022 > Off-Highway Dump Truck > MT60D > M060DWA83
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Middle rack | 27360113311 | 1 |
| 2 | SIGN | 27360116241 | 1 |
| 3 | Bolt GB5782-M14*90EpZn-8.8 | 4011000420 | 1 |
| 4 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 1 |
| 5 | Left mudguard tile assembly | 27360113781 | 1 |
| 6 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 1 |
| 7 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 1 |
| 8 | CHASIS | 27360113791 | 1 |
| 9 | ENGINE LEFT FRONT BRACKET | 27360117741 | 1 |
| 10 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 1 |
| 11 | Plate | 27360109992 | 1 |
| 12 | Bolt GB5783-M14*45EpZn-10.9 | 4011000820 | 1 |
| 13 | Fixed RH platform | 4190704816 | 1 |
| 14 | Adjustment shim 2 | 27130113181 | 1 |
| 15 | Adjustment shim 1 | 27130113171 | 1 |
| 16 | Fog light protecting cap | 27130102161 | 1 |
| 17 | Nut GB6170-M5EpZn-8 | 4013010029 | 1 |
| 18 | Bolt GB16674.1-M5*25EpZn-8.8 | 4011000586 | 1 |
| 19 | Washer GB97.1-5EpZn-300HV | 4015000110 | 1 |
| 20 | Washer GB97.1-16EpZn-300HV | 4015000181 | 1 |
| 21 | Trim washer | 27130104412 | 1 |
| 22 | Bolt GB5783-M14*40EpZn-8.8 | 4011000814 | 1 |
| 23 | Bolt GB5786-M16*1.5*40EpZn-8.8 | 4011000126 | 1 |
| 24 | Rubber mat | 27130103912 | 1 |
| 25 | Washer GB96.1-14EpZn-300HV | 4015000188 | 1 |
| 26 | Nut GB6170-M14EpZn-8 | 4013000013 | 1 |
| 27 | Adjustment shim 1 | 27130111491 | 1 |
| 28 | Adjustment shim 2 | 27130111501 | 1 |
| 29 | SEAT | 27130113251 | 1 |
| 30 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 1 |
| 31 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 1 |
