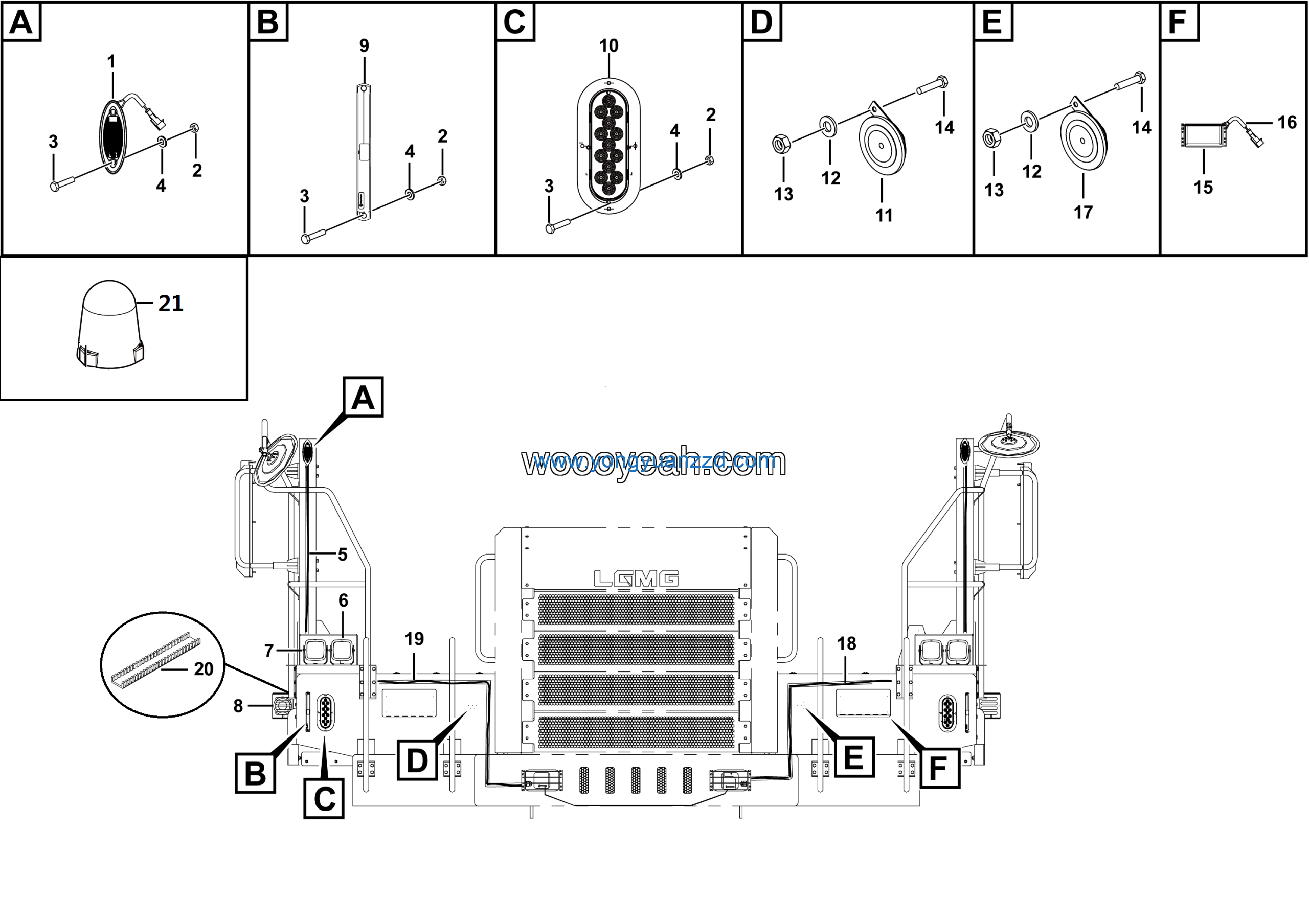

LGMG Off-Highway Dump Truck 2022 – Coverings electrical module assy – K2002-2720010917-G1
Category: 2022 > Off-Highway Dump Truck > CMT96 > C0960WF49
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering lamp DI-621 | 4130001146 | 2 |
| 2 | Monophonic disc woofer | 4130000906 | 1 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 5 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 6 | LED Fog lamp SM6053（three pin plug） | 4130000921 | 2 |
| 7 | Cmt fog lamp | 27200106591 | 1 |
| 8 | Monophonic disc wooFer（treble） | 4130000907 | 1 |
| 9 | Left platform wire | 27200107571 | 1 |
| 10 | Cargo tank | 27200109151 | 1 |
| 11 | SMG-011 Side marker lamp 3112040324 | 4130001148 | 2 |
| 12 | Fagging | 27130123361 | 2 |
| 13 | Large circular warning beacon YQDQ-JS-03 | 4130704079 | 1 |
| 14 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 16 |
| 15 | Bolt GB5783-M4*20EpZn-8.8 | 4011000615 | 16 |
| 16 | Washer GB97.1-4EpZn-300HV | 4015000135 | 16 |
| 17 | Wire | 27200107861 | 2 |
| 18 | Spotlamp work lamp WK-55HL（3312040131） | 4130001153 | 2 |
| 19 | Floodlamp work lamp WK-55HL（3312040210） | 4130001152 | 2 |
| 20 | White lamp work lamp WK-005 | 4130001150 | 2 |
| 21 | Daytime running lamp | 4130001212 | 2 |
