LGMG Off-Highway Dump Truck 2022 – Drive shaft assy – F0800-2709010316-G1
Category: 2022 > Off-Highway Dump Truck > CMT96 > C0960WF57

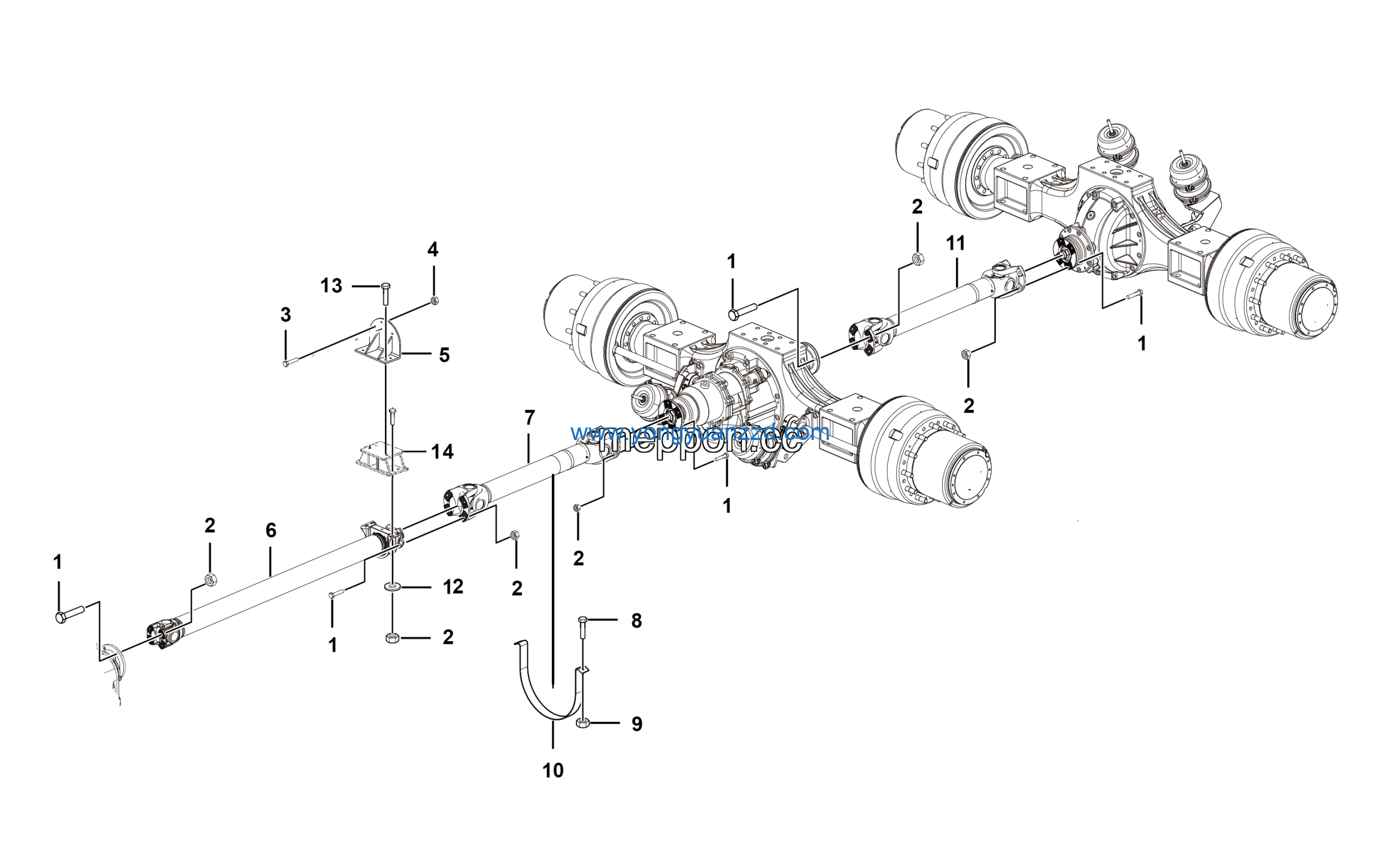

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | REAR THE THRUSTING ROD MOUNTING ASSEMBLY | 27090102791 | 1 |
| 2 | RR trabsmission shaft | 4110001384 | 1 |
| 3 | No longer used | 4015010281 | 4 |
| 4 | BOLT GB5785-M14*1.5*55FLZNYC-12.9 | 4110001647 | 4 |
| 5 | Support | 27090104251 | 1 |
| 6 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 12 |
| 7 | BOLT GB6185.2-M14*1.5FLZNYC-10-480 | 4110001648 | 24 |
| 8 | Bolt GB5782-M12*50EpZn-8.8 | 4011000064 | 2 |
| 9 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 10 | Plate | 27090103071 | 1 |
| 11 | FR transmission shaft LG09-QCDZ-610 | 4110703033 | 1 |
| 12 | Mid transmission shaft LG09-ZCDZ-1300 | 4110702879 | 1 |
| 13 | Bolt GB5783-M14*35EpZn-8.8 | 4011000191 | 2 |
| 14 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
