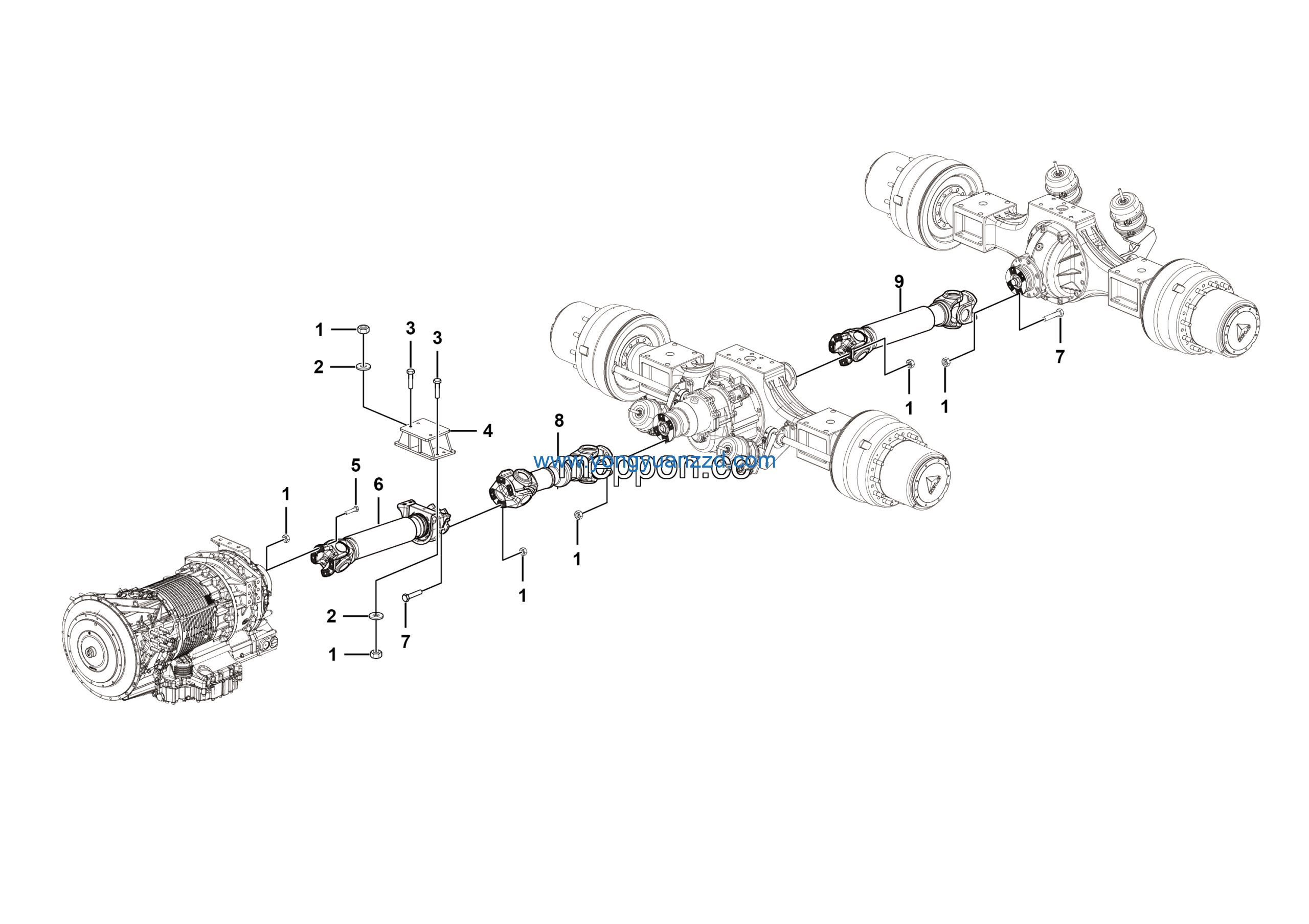

LGMG Off-Highway Dump Truck 2022 – Drive shaft assy – F0900-2709010433.S1A
Category: 2022 > Off-Highway Dump Truck > MT105 > M1050W3A0A004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB6185.2-M14*1.5FLZNYC-10-480 | 4110001648 | 28 |
| 2 | Washer GB97.1-14EpZn-300HV | 4015000177 | 8 |
| 3 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 8 |
| 4 | Support | 27090104321 | 1 |
| 5 | BOLT GB5785-M14*1.5*65flZnyc-12.9-480 | 4011010942 | 4 |
| 6 | FR transmission shaft LG09-QCDZ-520 | 4110702878 | 1 |
| 7 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 8 |
| 8 | Mid transmission shaft LG09-ZCDZ-1300 | 4110702879 | 1 |
| 9 | RR trabsmission shaft | 4110000911 | 1 |
