LGMG Off-Highway Dump Truck 2022 – Drive shaft assy – F0900-4110001131
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HWE59

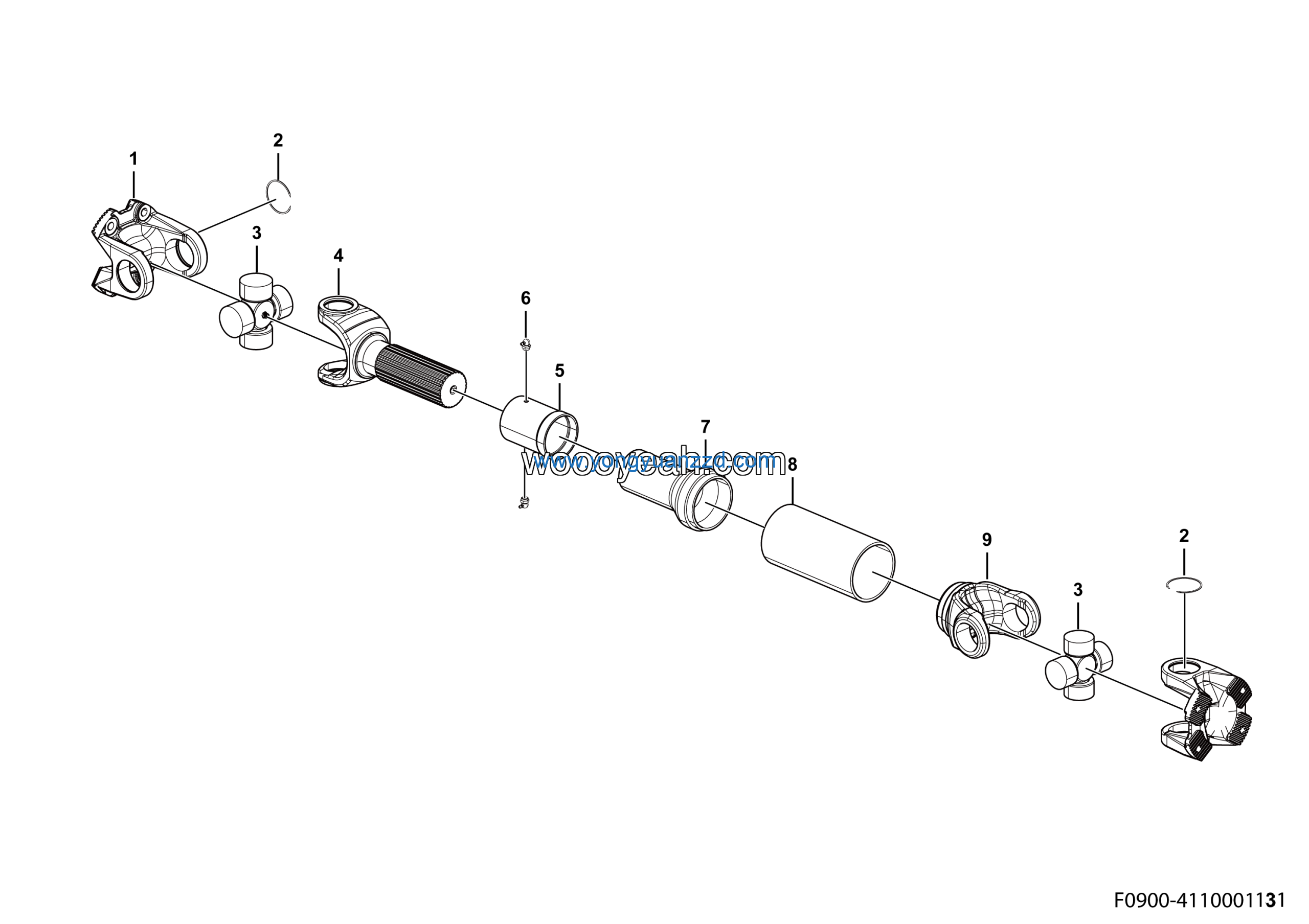

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flange fork 68011401111 | 4110001048001 | 2 |
| 2 | Snap ring 68011401201 | 4110001048002 | 4 |
| 3 | Cross shaft assy 680168165 | 4110001048003 | 2 |
| 4 | Spline shaft fork 68011401113 | 4110001048004 | 1 |
| 5 | Sheath pipe 3954100483-B | 4110000822005 | 1 |
| 6 | Grease nipple M6 | 4110001048006 | 2 |
| 7 | SPLINED HUB | 4110001048007 | 1 |
| 8 | Shaft tube φ140*5 | 4110001131001 | 1 |
| 9 | Universal joint fork 68011401301 | 4110001048009 | 1 |
