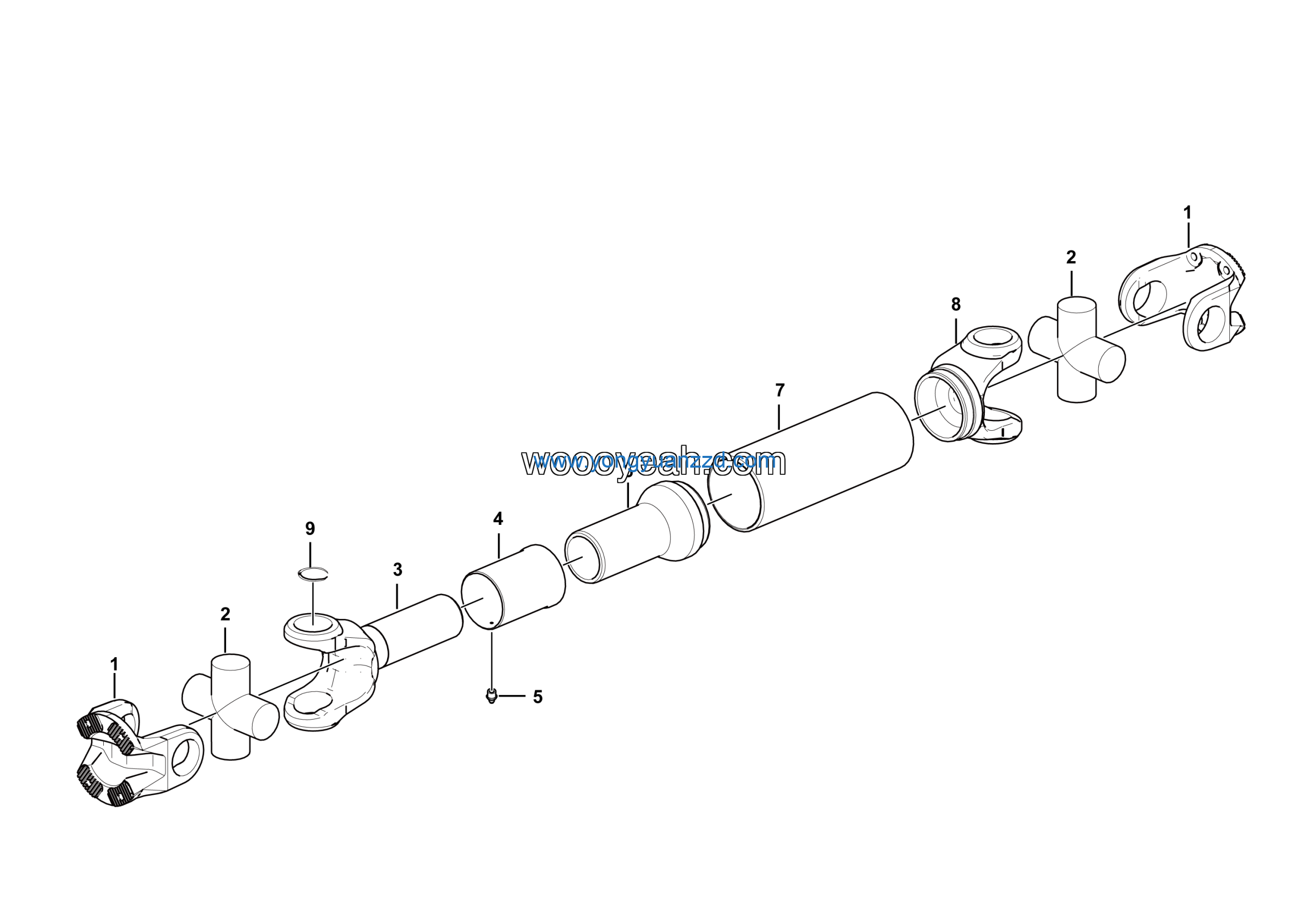

LGMG Off-Highway Dump Truck 2022 – Drive shaft assy – F0900-4110002052
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0M111-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flange fork 68011401111 | 4110001048001 | 1 |
| 2 | Cross shaft assy 680168165 | 4110001048003 | 1 |
| 3 | Spline shaft fork 68011401113 | 4110001048004 | 1 |
| 4 | Sheath pipe assy 395FCZ-160A | 4110702612001 | 1 |
| 5 | Grease nipple M6 | 4110001048006 | 1 |
| 6 | SPLINED HUB | 4110001048007 | 1 |
| 7 | Shaft tube φ140*5 | 4110000956001 | 1 |
| 8 | Universal joint fork 68011401301 | 4110001048009 | 1 |
| 9 | Snap ring 68011401201 | 4110001048002 | 1 |
