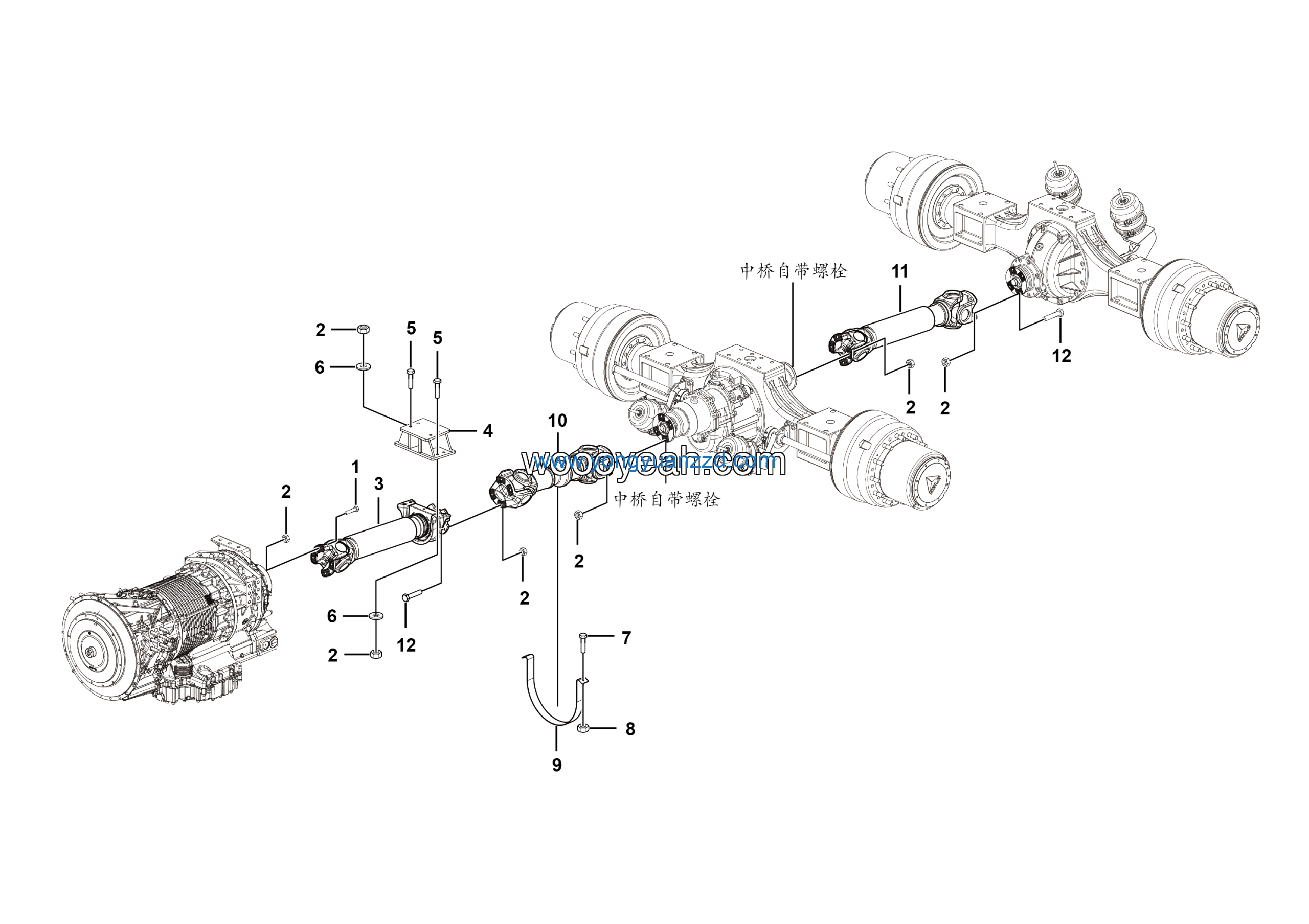

LGMG Off-Highway Dump Truck 2022 – Drive shaft assy – F0901-2709010332
Category: 2022 > Off-Highway Dump Truck > CMT96 > C0960WF44
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Mid transmission shaft LG09-ZCDZ-1300 | 4110702879 | 1 |
| 2 | RR trabsmission shaft | 4110000911 | 1 |
| 3 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 8 |
| 4 | BOLT GB5785-M14*1.5*65flZnyc-12.9-480 | 4011010942 | 4 |
| 5 | BOLT GB6185.2-M14*1.5FLZNYC-10-480 | 4110001648 | 28 |
| 6 | FR transmission shaft LG09-QCDZ-610 | 4110703033 | 1 |
| 7 | Support | 27090104251 | 1 |
| 8 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 8 |
| 9 | Washer GB97.1-14EpZn-300HV | 4015000177 | 8 |
| 10 | Bolt GB5783-M14*35EpZn-8.8 | 4011000191 | 2 |
| 11 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 12 | REAR THE THRUSTING ROD MOUNTING ASSEMBLY | 27090102791 | 1 |
