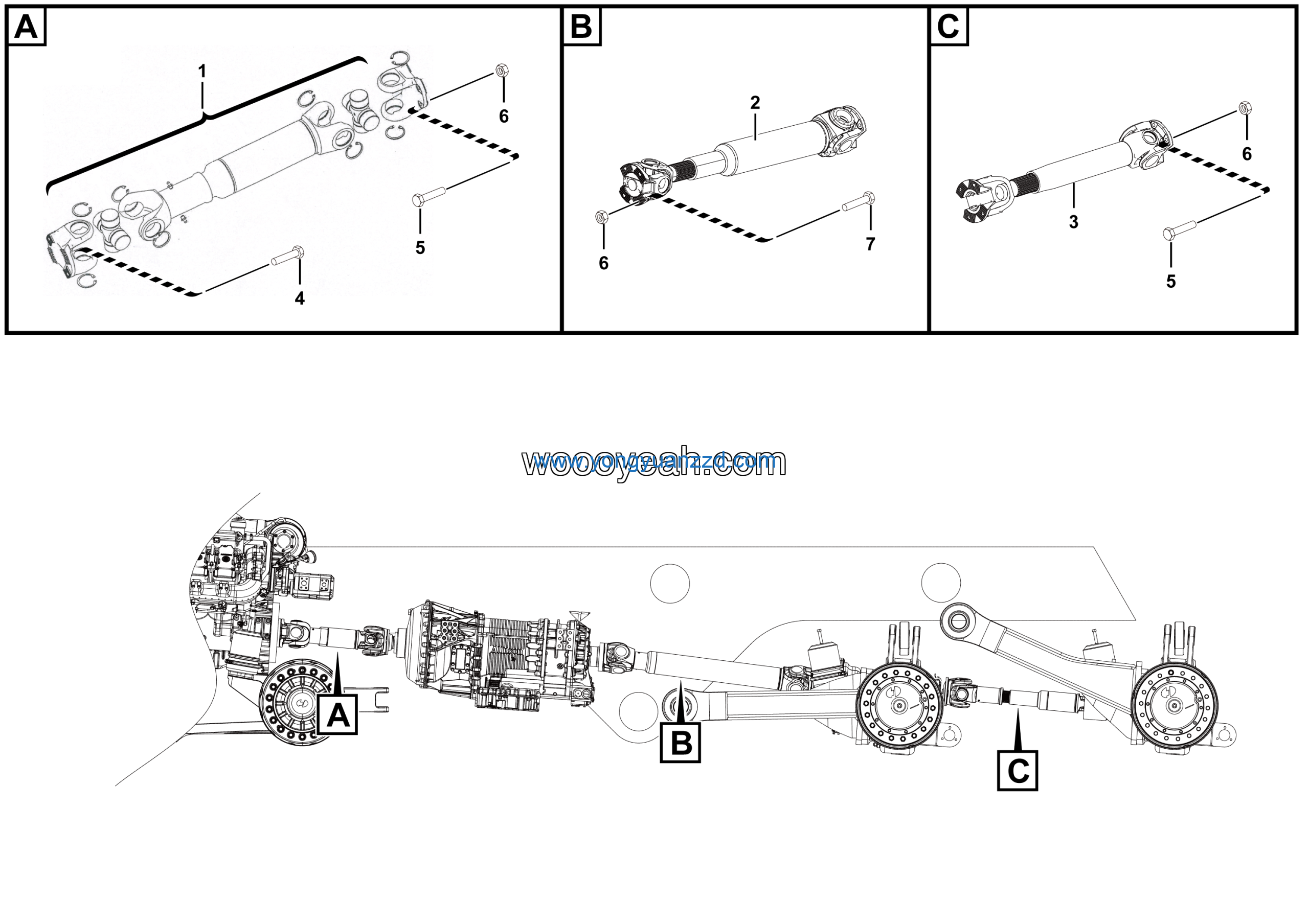

LGMG Off-Highway Dump Truck 2022 – Drive shaft assy – F0901-2709010455.S1B
Category: 2022 > Off-Highway Dump Truck > RT106 > R1060W3A0A000
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | FR transmission shaft LG09-QCDZ-610 | 4110705623 | 1 |
| 2 | Transmission shaft assy | 4110702403 | 1 |
| 3 | RR trabsmission shaft-LG82-HCDZ-945 | 4110705663 | 1 |
| 4 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 4 |
| 5 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 8 |
| 6 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 20 |
| 7 | BOLT GB5785-M14*1.5*65flZnyc-12.9-480 | 4011010942 | 4 |
