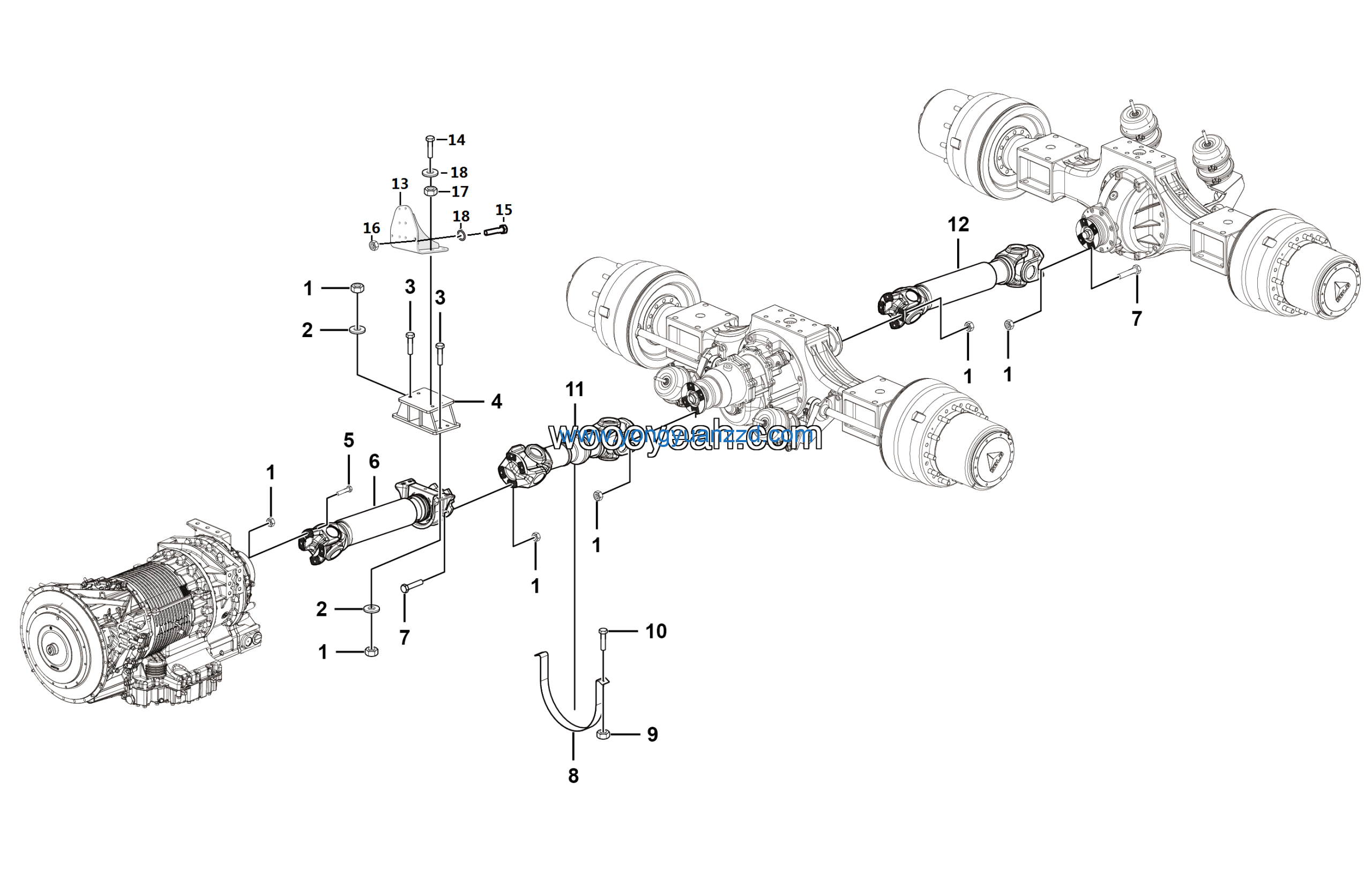

LGMG Off-Highway Dump Truck 2022 – Drive shaft assy – F0902-2709010323
Category: 2022 > Off-Highway Dump Truck > CMT106 > C1060W3E0A106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 2 |
| 2 | Mid transmission shaft LG09-ZCDZ-1300 | 4110702879 | 1 |
| 3 | RR trabsmission shaft | 4110000911 | 1 |
| 4 | Seat | 27090104881 | 1 |
| 5 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 6 |
| 6 | Bolt GB5783-M14*35EpZn-8.8 | 4011000191 | 2 |
| 7 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 8 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 30 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 10 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 6 |
| 11 | Washer GB97.1-14EpZn-300HV | 4015000177 | 10 |
| 12 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 4 |
| 13 | Support | 27090104251 | 1 |
| 14 | BOLT GB5785-M14*1.5*65flZnyc-12.9-480 | 4011010942 | 4 |
| 15 | FR transmission shaft LG09-QCDZ-520 | 4110702878 | 1 |
| 16 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 14 |
| 17 | REAR THE THRUSTING ROD MOUNTING ASSEMBLY | 27090102791 | 1 |
| 18 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
