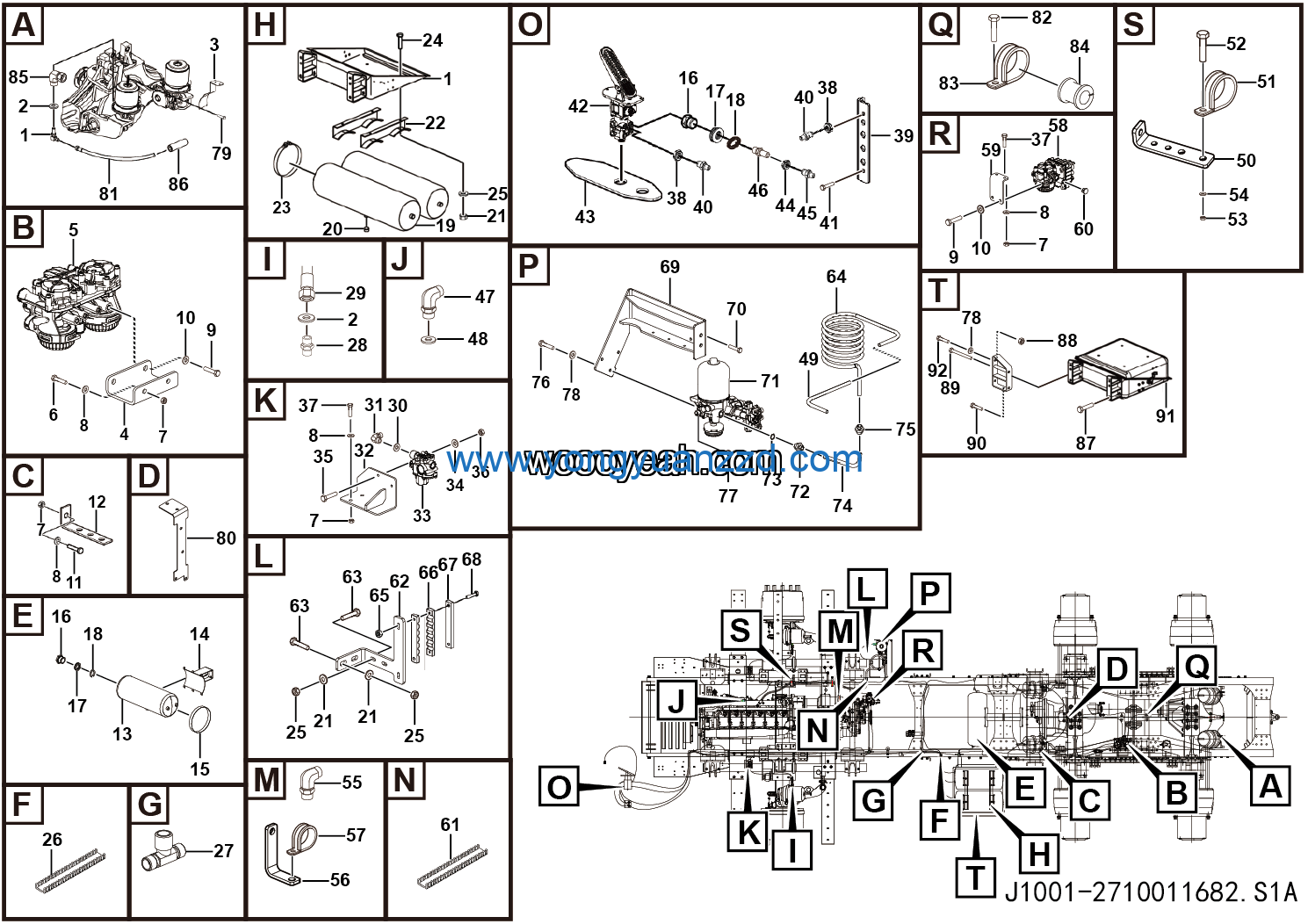

LGMG Off-Highway Dump Truck 2022 – Driving brake assy – J1001-2710011682.S1A
Category: 2022 > Off-Highway Dump Truck > CMT66 > C0660W3E0A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
| 2 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 3 | Bracket 1 | 27100103561 | 2 |
| 4 | Air reservoir 30L（246） | 4120000143 | 1 |
| 5 | 30l reservoir bracket | 27110102131 | 1 |
| 6 | Hose clamp φ246-φ250 | 4120000177 | 2 |
| 7 | Nut seat NG12 | 4120000190 | 8 |
| 8 | Elastic element NG12 | 4120000193 | 8 |
| 9 | Clip spring NG12 | 4120000192 | 8 |
| 10 | Air reservoir 50L | 4120001543 | 2 |
| 11 | Connecter | 27100114051 | 4 |
| 12 | Drain valve | 4120000200 | 3 |
| 13 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 14 | Air reservoir bracket | 27100108131 | 2 |
| 15 | Hose clamp φ315-φ320 | 4120001542 | 4 |
| 16 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 4 |
| 17 | Washer GB97.1-12EpZn-300HV | 4015000168 | 10 |
| 18 | String casing | 27140105021 | 1 |
| 19 | T-connector m14-npt1/8-m14 | 27100106991 | 1 |
| 20 | CONNECTOR | 27100100661 | 4 |
| 21 | Air pipe GPU-13-I-800-SG | 27100104361 | 2 |
| 22 | Washer JB982-16 | 4015000141 | 6 |
| 23 | Copper washer 22 | 27100101101 | 2 |
| 24 | M22-M18 Rectangular joint | 27100100681 | 2 |
| 25 | Plate | 27100116801 | 2 |
| 26 | ABS Solenoid valve 35503000040 | 4120706434 | 2 |
| 27 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 12 |
| 28 | Bolt GB5783-M8*75EpZn-8.8 | 4011000781 | 4 |
| 29 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 8 |
| 30 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 6 |
| 31 | Thin nut M16*1.5 | 4120000234 | 2 |
| 32 | Plate | 27110103122 | 1 |
| 33 | Pipe bracket | 27100107402 | 1 |
| 34 | Straight bulkhead joint NG6/2-M16*1.5 | 4120000233 | 2 |
| 35 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 6 |
| 36 | Elec brake pedal assy | 4120706429 | 1 |
| 37 | Plate | 27100108061 | 1 |
| 38 | Nut M18 | 4120000230 | 3 |
| 39 | M14-NPT1/8 bulkhead union | 27100106211 | 1 |
| 40 | Transition joint assy NG12-M16*1.5 | 4120705999 | 3 |
| 41 | Joint m12-m12 | 27100104301 | 2 |
| 42 | Washer JB982-12 | 4015000327 | 2 |
| 43 | Steel wire hose | 27100114091 | 1 |
| 44 | Plate | 27100111601 | 1 |
| 45 | Steel tube support | 27100105871 | 2 |
| 46 | Clamp | 27100107611 | 2 |
| 47 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 48 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 49 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 50 | Combination joint LGB143-01810 | 4041001063 | 1 |
| 51 | Plate | 27160104461 | 1 |
| 52 | Clamp | 26370001911 | 1 |
| 53 | Single channel EBS valve 35683300010 | 4120706430 | 1 |
| 54 | Plate | 27100116791 | 1 |
| 55 | Dual channel EBS valve 3568340020 | 4120706433 | 1 |
| 56 | Plug NG12-M22*1.5 | 4120000201 | 1 |
| 57 | Fagging | 27140119481 | 1 |
| 58 | Plate | 27100113271 | 1 |
| 59 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 2 |
| 60 | Pipe assembly | 27100113261 | 1 |
| 61 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 62 | Rubber clip | 27100108841 | 2 |
| 63 | Plate | 27100108872 | 1 |
| 64 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 65 | Plate | 27100111862 | 1 |
| 66 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
| 67 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 3 |
| 68 | Air Handling unit | 4120001086 | 1 |
| 69 | M22-m22 rectangular connector | 27100100691 | 1 |
| 70 | Washer JB982-22 | 4015000092 | 1 |
| 71 | Wired hose | 27100107941 | 1 |
| 72 | Adapter M22-M22 | 27380100061 | 1 |
| 73 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 2 |
| 74 | Nut GB6170-M16EpZn-8 | 4013000016 | 2 |
| 75 | Washer GB97.1-16EpZn-300HV | 4015000181 | 12 |
| 76 | Bolt GB5782-M10*85EpZn-8.8 | 4011010016 | 4 |
| 77 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 78 | Intermediate axle air tube bracket | 27100107641 | 1 |
| 79 | Sleeve | 27100107421 | 4 |
| 80 | Bolt GB5783-M8*45-8.8 | 4011010684 | 4 |
| 81 | Pipe clamp LGB167-0219 | 4041001168 | 4 |
| 82 | Cushion sleeve LGB123-0116 | 4041001252 | 4 |
| 83 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 84 | Brake air duct | 27100116831 | 1 |
| 85 | Bolt GB5783-M16*50EpZn-10.9 | 4011000742 | 3 |
| 86 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 8 |
| 87 | Bolt GB5782-M16*200EpZn-10.9 | 4011010020 | 2 |
| 88 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 89 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 2 |
| 90 | Battery box assy 49-DPX-02 | 4190706949 | 1 |
| 91 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 1 |
| 92 | Bolt GB5786-M12*1.5*25EpZn-10.9 | 4011010275 | 4 |
