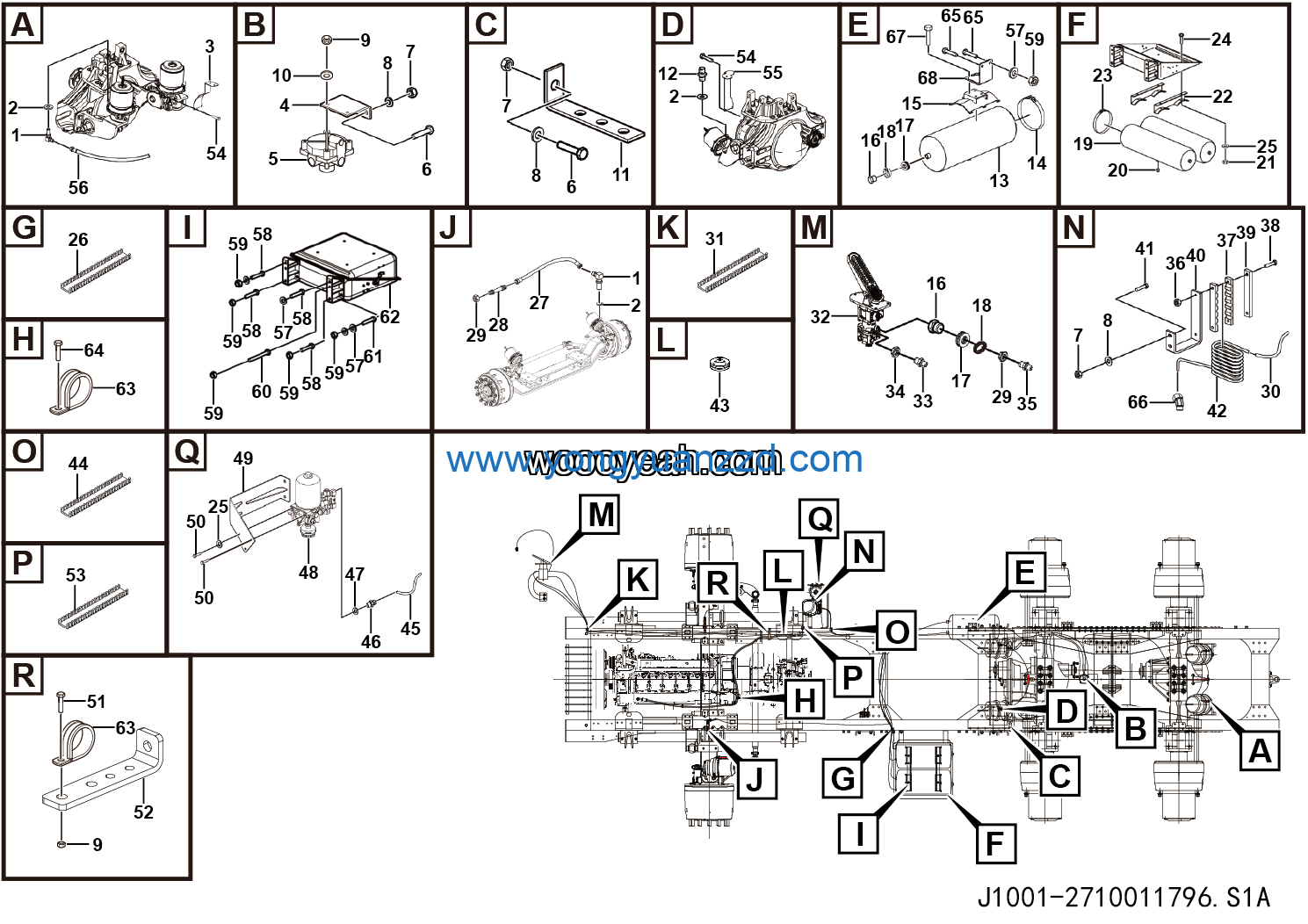

LGMG Off-Highway Dump Truck 2022 – Driving brake assy – J1001-2710011796.S1A
Category: 2022 > Off-Highway Dump Truck > MT60D > M060DW2E0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 2 | Bracket 1 | 27100103561 | 2 |
| 3 | CONNECTOR | 27100100661 | 3 |
| 4 | Air reservoir 30L（275） | 4120000142 | 1 |
| 5 | Hose clamp φ275-φ280 | 4120000178 | 2 |
| 6 | Plate | 27100115381 | 1 |
| 7 | Nut seat NG12 | 4120000190 | 11 |
| 8 | Elastic element NG12 | 4120000193 | 11 |
| 9 | Clip spring NG12 | 4120000192 | 11 |
| 10 | Air reservoir 50L | 4120001543 | 2 |
| 11 | M16-M18 rectangular connector | 27100100641 | 3 |
| 12 | Drain valve | 4120000200 | 3 |
| 13 | Nut GB6170-M12EpZn-8 | 4013000011 | 5 |
| 14 | Air reservoir bracket | 27100108131 | 2 |
| 15 | Hose clamp φ315-φ320 | 4120001542 | 4 |
| 16 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 4 |
| 17 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 18 | Fagging | 27140108681 | 1 |
| 19 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 20 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 21 | Nut M18 | 4120000230 | 5 |
| 22 | Washer JB982-16 | 4015000141 | 6 |
| 23 | Wired hose | 27100111153 | 1 |
| 24 | Sleeve | 27100107511 | 1 |
| 25 | Foot brake valve | 4120000133 | 1 |
| 26 | Straight bulkhead joint NG6/2-M16*1.5 | 4120000233 | 2 |
| 27 | Thin nut M16*1.5 | 4120000234 | 2 |
| 28 | M14-NPT1/8 bulkhead union | 27100106211 | 1 |
| 29 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 30 | Rubber clip | 27100107851 | 2 |
| 31 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 32 | Plate | 27100107862 | 1 |
| 33 | Rear axle pipe bracket | 27100103811 | 1 |
| 34 | Plate | 27100112291 | 1 |
| 35 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 1 |
| 36 | Pipe assembly | 27100111881 | 1 |
| 37 | Thermal insulation sheath | 27100104531 | 1 |
| 38 | Fagging | 27100111891 | 1 |
| 39 | Wired hose | 27100111872 | 1 |
| 40 | M22-m22 rectangular connector | 27100100691 | 2 |
| 41 | Washer JB982-22 | 4015000092 | 1 |
| 42 | Air Handling unit | 4120001086 | 1 |
| 43 | Plate | 27100111862 | 1 |
| 44 | Relay valve bracket | 27100108801 | 1 |
| 45 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 3 |
| 46 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 47 | Steel tube support | 27100105871 | 1 |
| 48 | SIDE PLATE MIDDLE COLUMN PLUG PLATE 1 | 27140128081 | 1 |
| 49 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 50 | Intermediate axle air tube bracket | 27100107641 | 1 |
| 51 | Brake hose assembly | 27100115422 | 1 |
| 52 | Washer GB97.1-16EpZn-300HV | 4015000181 | 13 |
| 53 | Bolt GB5783-M16*50EpZn-10.9 | 4011000742 | 4 |
| 54 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 11 |
| 55 | Relay valve | 4120001087 | 1 |
| 56 | Bolt GB5782-M16*200EpZn-10.9 | 4011010020 | 2 |
| 57 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 2 |
| 58 | Battery box assy MT95 | 4190002270 | 1 |
| 59 | Clamp | 27100107611 | 3 |
| 60 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 61 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 62 | M22-m22 | 27100110161 | 1 |
| 63 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 2 |
| 64 | Plate | 27100115391 | 1 |
| 65 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 66 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 67 | Washer GB97.1-10EpZn-300HV | 4015000162 | 7 |
| 68 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
