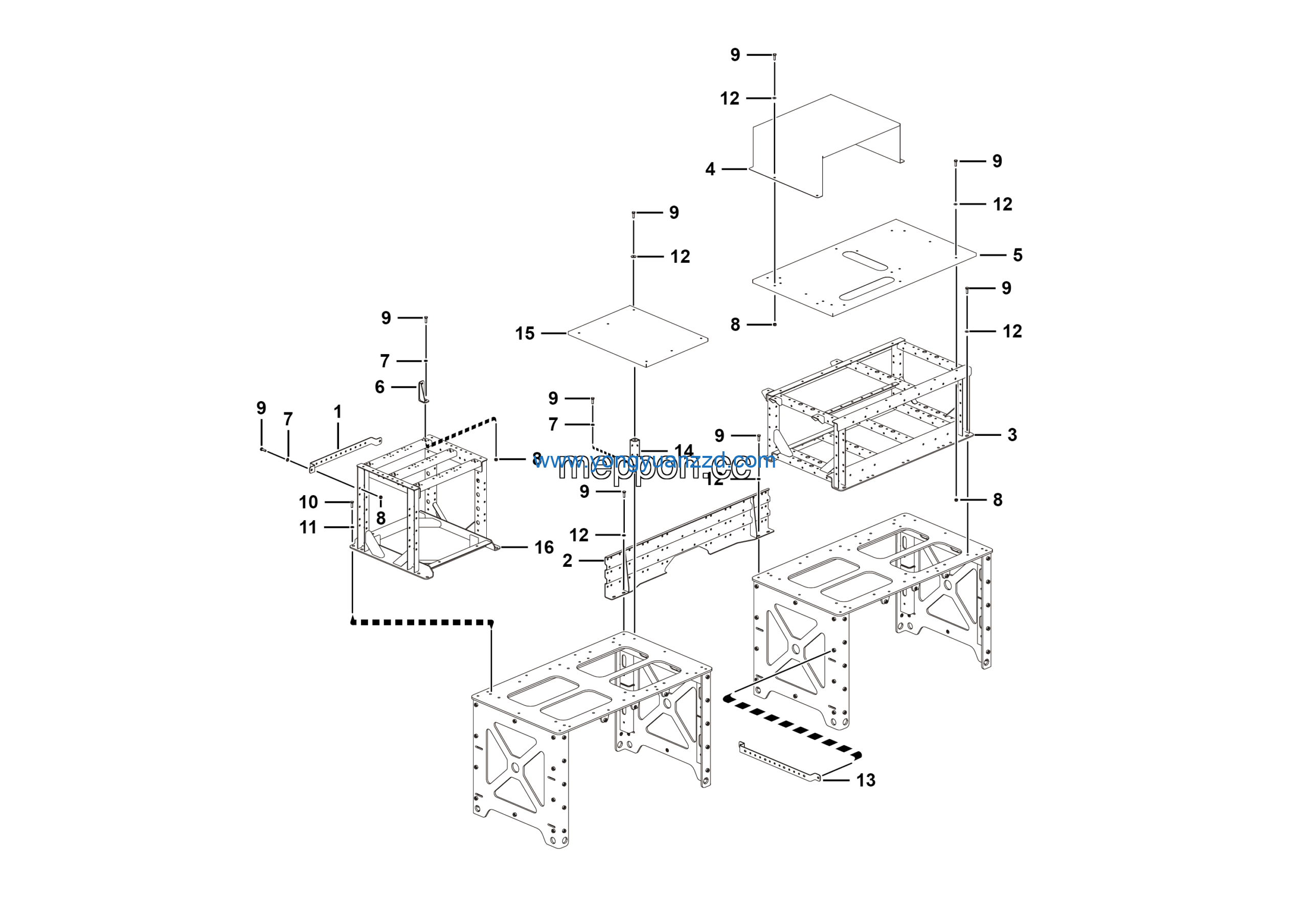

LGMG Off-Highway Dump Truck 2022 – Electric control bracket installation assy – P1401-2714015858
Category: 2022 > Off-Highway Dump Truck > MTE86H > M086HE0A2A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 17 |
| 2 | Washer GB97.1-12EpZn-300HV | 4015000168 | 17 |
| 3 | Washer GB96.1-10EpZn-300HV | 4015000197 | 27 |
| 4 | Harness brkt | 27140159251 | 4 |
| 5 | Protective brkt | 27140159211 | 4 |
| 6 | Mcu protection | 27140159201 | 1 |
| 7 | Plate | 27140159001 | 1 |
| 8 | Plate | 27140159091 | 2 |
| 9 | High pressure harness brkt | 27140159261 | 1 |
| 10 | Controller mounting brkt | 27140159101 | 1 |
| 11 | Plate | 27140159241 | 1 |
| 12 | Pdu cover plate | 27140159191 | 1 |
| 13 | Plate | 27140159071 | 2 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 14 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 32 |
| 16 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 37 |
