LGMG Off-Highway Dump Truck 2022 – Engine assy – A0100-2701012587.S1A
Category: 2022 > Off-Highway Dump Truck > MT106L- > M1060W3E0M004

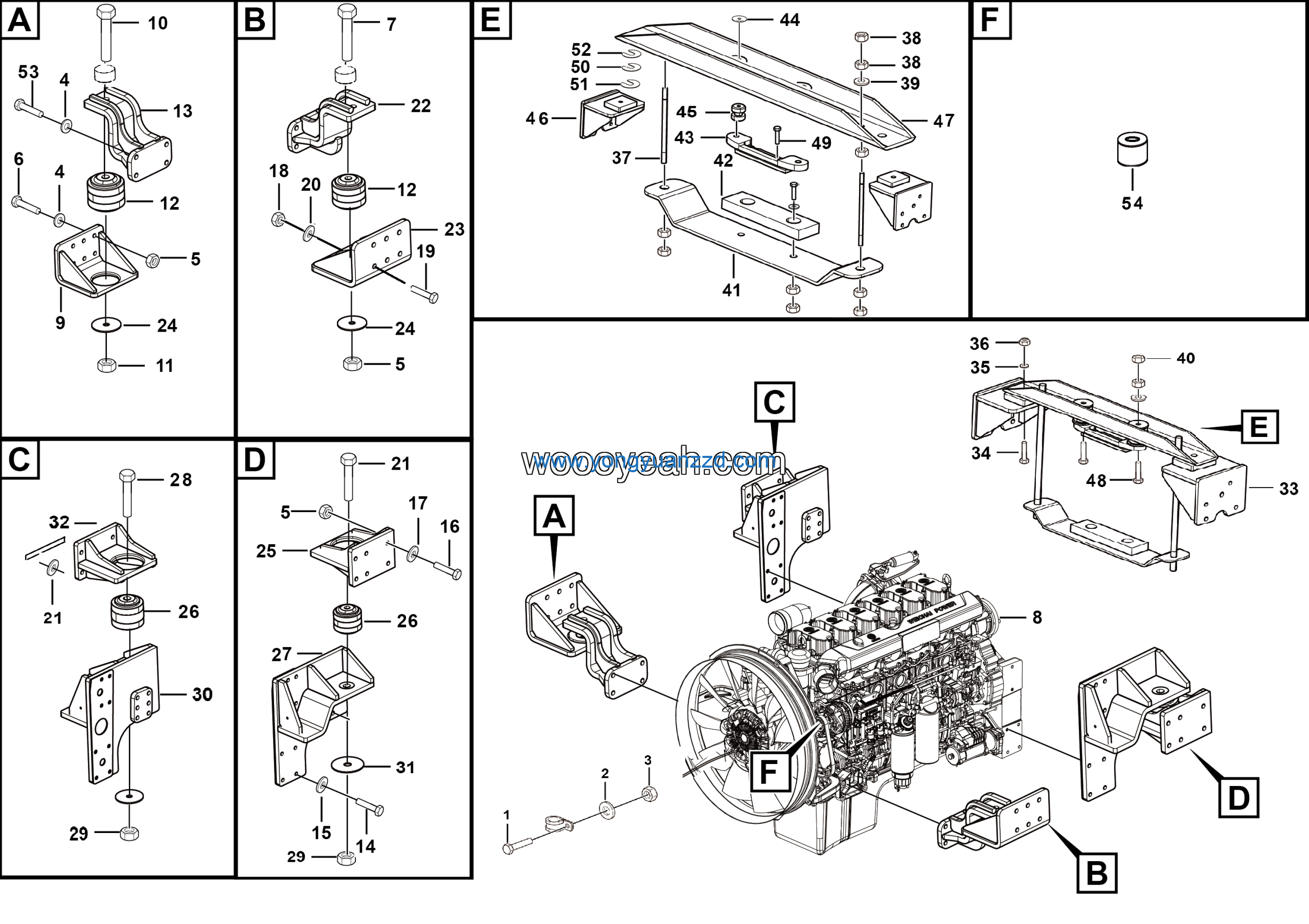

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M22*180flZnyc-12.9-480 | 4011010793 | 2 |
| 2 | Nut GB6185.1-M22flZnyc-12-480 | 4013010282 | 6 |
| 3 | FR mounted shock absorber | 4110702313 | 4 |
| 4 | RIGHT LEG | 27010121251 | 1 |
| 5 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 16 |
| 6 | Washer GB97.1-14flZnyc-300HV-480 | 4015010341 | 16 |
| 7 | Bolt GB5782-M16*90flZnyc-12.9-480 | 4011010646 | 12 |
| 8 | Washer GB1230-16EpZn-45 | 4015000001 | 12 |
| 9 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 5 |
| 10 | Bolt GB5782-M14*70flZnyc-12.9-480 | 4011010561 | 5 |
| 11 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 12 | Washer GB1230-14EpZn-45 | 4015000358 | 19 |
| 13 | Washer GB96.1-14EpZn-300HV | 4015000188 | 4 |
| 14 | LEFT LEG | 27010121241 | 1 |
| 15 | Left front seat | 27010120861 | 1 |
| 16 | Front rubber baes plate | 27010115971 | 2 |
| 17 | Seat | 27010121371 | 1 |
| 18 | RR suspension shock absorber | 4110702314 | 4 |
| 19 | LEFT LEG | 27010121272 | 1 |
| 20 | Bolt GB5782-M27*185flZnyc-12.9-480 | 4011010397 | 2 |
| 21 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 2 |
| 22 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 23 | RIGHT LEG | 27010121282 | 1 |
| 24 | Rear rubber baes plate | 27010116141 | 2 |
| 25 | Support | 27010121381 | 1 |
| 26 | Support | 27010121351 | 1 |
| 27 | Bolt GB5782-M20*60flZnyc-12.9-480 | 4011010959 | 2 |
| 28 | Washer GB96.1-20EpZn-300HV | 4015000206 | 2 |
| 29 | Nut GB6185.1-M20flZnyc-12-480 | 4013010256 | 2 |
| 30 | Stud | 27010115201 | 2 |
| 31 | Nut GB6170-M22EpZn-8 | 4013000138 | 10 |
| 32 | Washer GB97.1-22EpZn-300HV | 4015000184 | 2 |
| 33 | Nut GB6185.1-M10EpZn-10 | 4013010133 | 1 |
| 34 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 8 |
| 35 | Support | 27010123861 | 1 |
| 36 | Plate | 27050103981 | 1 |
| 37 | Intermediate shoe | 27050104121 | 1 |
| 38 | Damper plate | 27050103882 | 4 |
| 39 | Auxiliary support shock absorber 44003-13 | 4190001505 | 2 |
| 40 | Support | 27010121361 | 1 |
| 41 | Upper connect plate assembly | 27010115171 | 1 |
| 42 | Bolt GB5782-M16*130flZnyc-12.9-480 | 4011010567 | 2 |
| 43 | Bolt GB5783-M16*45EpZn-8.8 | 4011000205 | 2 |
| 44 | Washer GB97.1-16EpZn-300HV | 4015000181 | 35 |
| 45 | Adjustment gasket | 27010115492 | 1 |
| 46 | Adjustment gasket | 27010115502 | 1 |
| 47 | Adjustment gasket | 27010115512 | 1 |
| 48 | Bolt GB5783-M16*40flZnyc-12.9-480 | 4011010676 | 8 |
| 49 | Bomp | 27010111571 | 2 |
| 50 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 26 |
| 51 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 18 |
| 52 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 1 |
| 53 | Engine WP13G530E310 | 4110705043 | 1 |
| 54 | Right front seat | 27010120891 | 1 |
