LGMG Off-Highway Dump Truck 2022 – Engine assy – A0100-2701012917
Category: 2022 > Off-Highway Dump Truck > MT60D > M060DW2E0M004

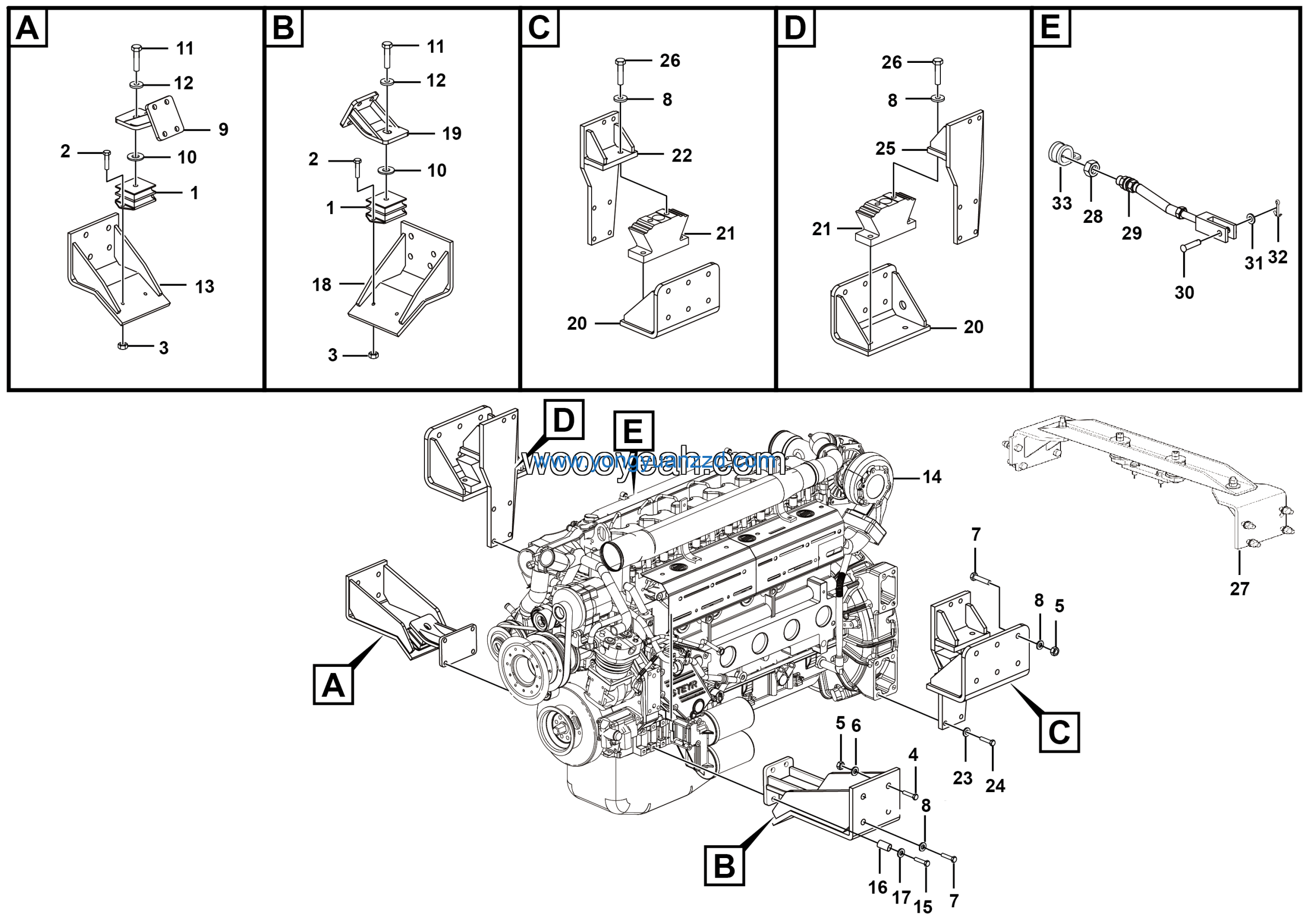

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Adjusting pad | 27010129451 | 2 |
| 2 | Bolt GB5783-M16*30EpZn-10.9 | 4011000732 | 2 |
| 3 | Washer GB96.1-16EpZn-300HV | 4015000279 | 2 |
| 4 | ENGINE RIGHT FRONT ANCHORAGE | 27010104271 | 1 |
| 5 | Engine WD12.420 | 4110702377 | 1 |
| 6 | Bolt GB5782-M12*55flZnyc-12.9-480 | 4011010550 | 8 |
| 7 | Sleeve | 27010104781 | 8 |
| 8 | Washer GB1230-12EpZn-45 | 4015000288 | 8 |
| 9 | ENGINE LEFT FRONT ANCHORAGE | 27010104221 | 1 |
| 10 | Engine left front anchorage | 27010115761 | 1 |
| 11 | FR suspension shock absorber R14 | 4110705942 | 2 |
| 12 | Seat | 27010112951 | 2 |
| 13 | RR engine mount cushion | 4110000296 | 2 |
| 14 | ENGINE LEFT REAR FRAME | 27010115561 | 1 |
| 15 | Washer GB1230-14EpZn-45 | 4015000358 | 12 |
| 16 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 12 |
| 17 | ENGINE RIGHT RAME | 27010115591 | 1 |
| 18 | Bolt GB5786-M16*1.5*45flZnyc-12.9-480 | 4011010535 | 8 |
| 19 | Transmission support assembly | 27010115611 | 1 |
| 20 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
| 21 | Throttle cable assy | 4110001883 | 1 |
| 22 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 23 | Pin GB882-B6*16EpZn-35 | 4016010111 | 1 |
| 24 | Washer GB97.1-6EpZn-300HV | 4015000207 | 1 |
| 25 | Pin GB91-1.6*16EpZn-Q235A | 4016000107 | 1 |
| 26 | Pipe clamp | 26370001211 | 1 |
| 27 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 28 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 4 |
| 29 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 20 |
| 30 | Washer GB96.1-16EpZn-300HV | 4015000279 | 2 |
| 31 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 16 |
| 32 | Washer GB97.1-16EpZn-300HV | 4015000181 | 18 |
| 33 | Engine right front anchorage | 27010115791 | 1 |
