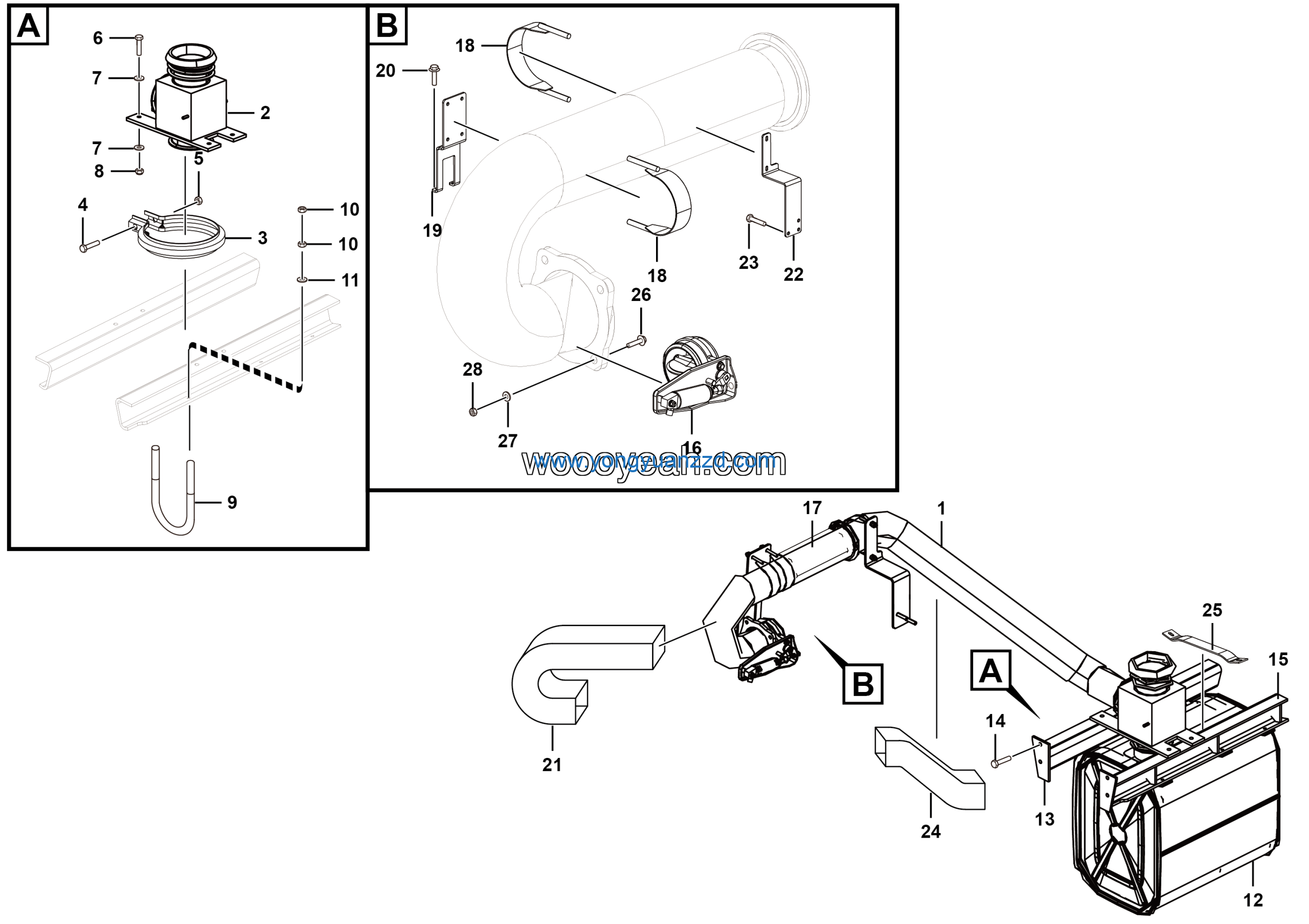

LGMG Off-Highway Dump Truck 2022 – Exhaust and heating system assy – A2401-2724010811.S1A
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 12 |
| 2 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 3 | Muffler | 4110703641 | 1 |
| 4 | Plate | 27010110661 | 1 |
| 5 | Bolt GB5783-M12*55EpZn-8.8 | 4011000254 | 6 |
| 6 | Plate | 27010110671 | 1 |
| 7 | Exhaust brake butterfly valve | 4110000157 | 1 |
| 8 | Pipe | 27240105651 | 1 |
| 9 | PLATE | 27240102051 | 3 |
| 10 | Pipe | 27240105591 | 1 |
| 11 | Pipe | 27240105641 | 1 |
| 12 | Bolt GB16674.1-M8*25EpZn-8.8 | 4011000455 | 3 |
| 13 | Upr exhaust pipe insulation cotton LG24-GRM01 | 4110704970 | 1 |
| 14 | Bracket, fixing lwr exhaust pipe | 27240107981 | 1 |
| 15 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 3 |
| 16 | Exhaust pipe insulation cotton assy | 4110703058 | 1 |
| 17 | Plate | 27010110711 | 3 |
| 18 | Bolt GB16674-M12*120EpZn-8.8 | 4011011420 | 4 |
| 19 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 20 | Nut GB6170-M12EpZn-8 | 4013000011 | 8 |
| 21 | Exhaust conversion box | 4190003584 | 1 |
| 22 | Clamp | 4110000768 | 3 |
| 23 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 3 |
| 24 | Nut GB6170-M10EpZn-8 | 4013000007 | 15 |
| 25 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 26 | Washer GB96.1-12EpZn-300HV | 4015000186 | 13 |
| 27 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 9 |
| 28 | TENSIONING LEVER | 27010101611 | 3 |
