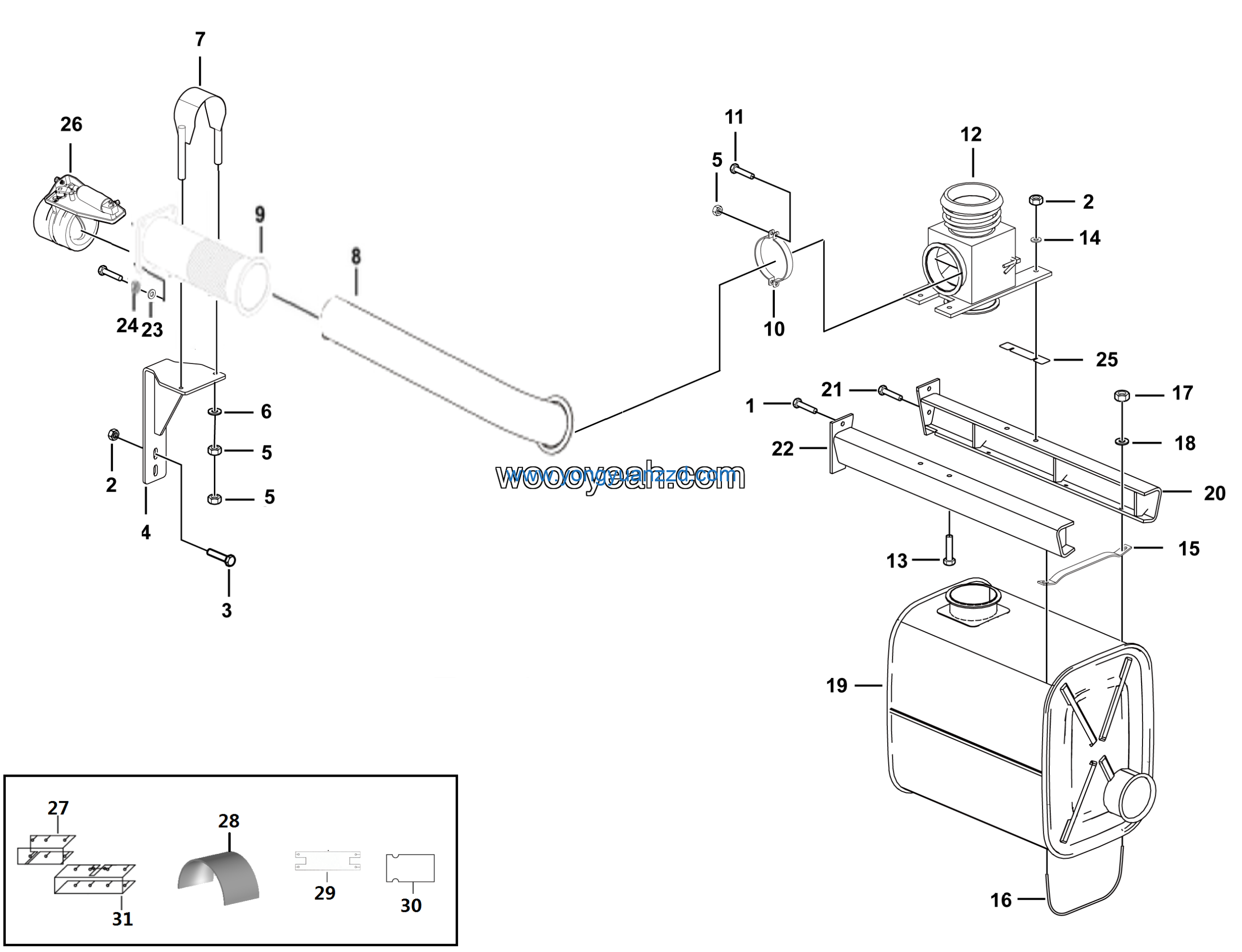

LGMG Off-Highway Dump Truck 2022 – Exhaust system assy – A0400-2724010826
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086MWA31
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamp | 4110000768 | 3 |
| 2 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 3 |
| 3 | Exhaust conversion box | 4110702922 | 1 |
| 4 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 5 | Washer GB96.1-12EpZn-300HV | 4015000186 | 10 |
| 6 | Plate | 27010110711 | 3 |
| 7 | TENSIONING LEVER | 27010101611 | 3 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 12 |
| 9 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 10 | Muffler assy | 4110703638 | 1 |
| 11 | Bolt GB5783-M12*55EpZn-8.8 | 4011000254 | 2 |
| 12 | Plate | 27010110671 | 1 |
| 13 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 4 |
| 14 | Plate | 27010110661 | 1 |
| 15 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 16 | Nut GB6170-M12EpZn-8 | 4013000011 | 8 |
| 17 | Adjust plate | 27240104901 | 1 |
| 18 | Exhaust brake butterfly valve | 4110000157 | 1 |
| 19 | Exhaust manifold insulation cotton LG24 GR 001 | 4110705910 | 1 |
| 20 | Turbocharger insulation cotton LG24-GR-002 | 4110705911 | 1 |
| 21 | Exhaust pipe insulation cotton LG24-GR-003 | 4110705912 | 1 |
| 22 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 10 |
| 23 | Exhaust pipe insulation cotton LG24 GR 004 | 4110705913 | 1 |
| 24 | Exhaust manifold insulation cotton LG24 GR 005 | 4110705914 | 1 |
| 25 | Bolt GB16674-M12*120EpZn-8.8 | 4011011420 | 4 |
| 26 | Frame | 27240104871 | 1 |
| 27 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 28 | Washer GB97.1-10EpZn-300HV | 4015000162 | 10 |
| 29 | Exhaust pipe strap | 27240102331 | 1 |
| 30 | Lower exhaust pipe | 4110703095 | 1 |
| 31 | Air pipe | 27240106361 | 1 |
