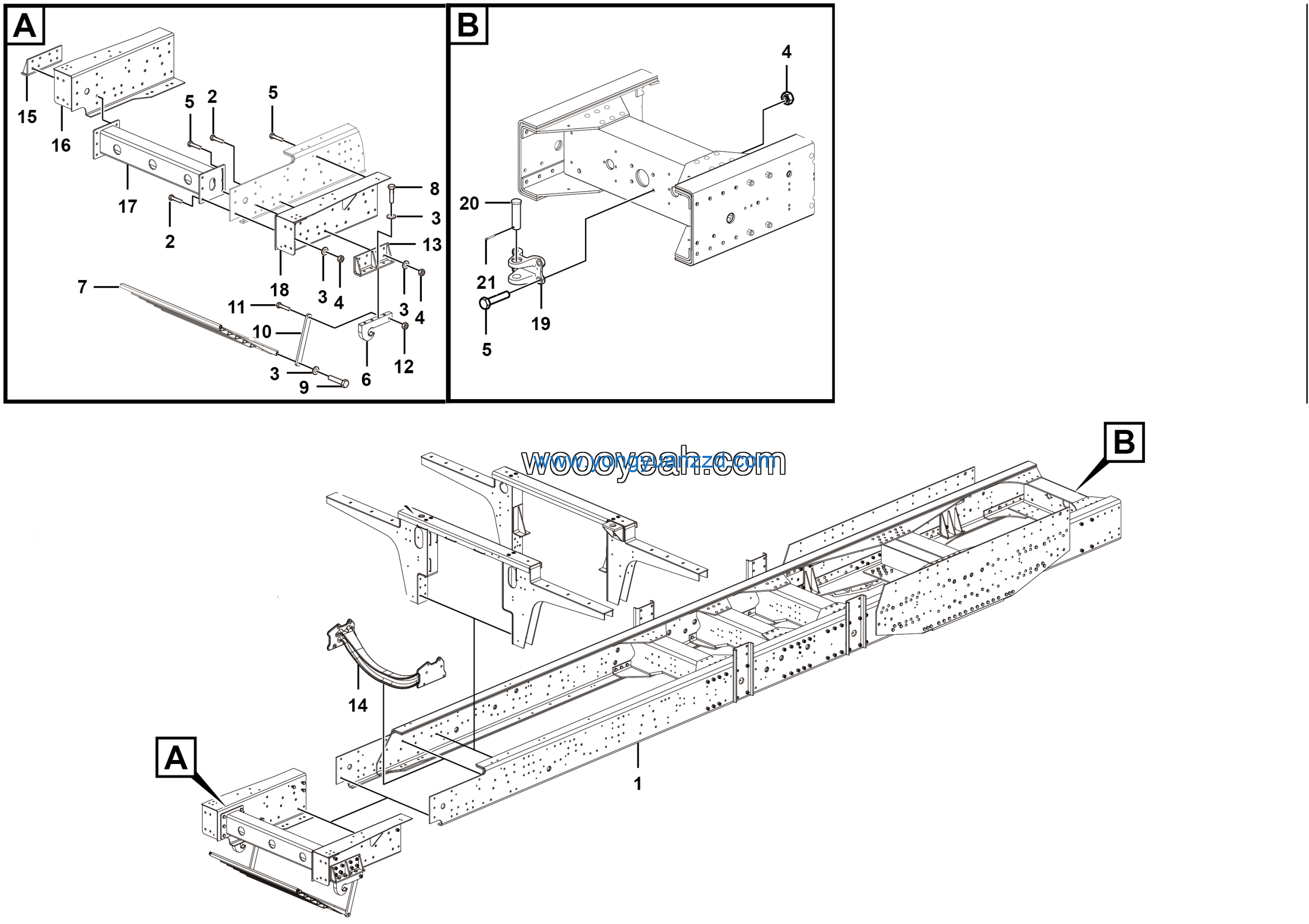

LGMG Off-Highway Dump Truck 2022 – Frame assy – I1401-2714013271
Category: 2022 > Off-Highway Dump Truck > CMT106 > C1060W3E0A008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Connecting rod | 27140123531 | 2 |
| 2 | BOLT GB5785-M16*1.5*75EpZn-8.8 | 4011010461 | 2 |
| 3 | Nut GB6185.2-M16*1.5EpZn-8 | 4013010168 | 2 |
| 4 | Left side bracket | 27140123491 | 1 |
| 5 | Right side bracke | 27140123481 | 1 |
| 6 | hose-1700 | 27140132791 | 1 |
| 7 | SATE | 27140132811 | 1 |
| 8 | Sate | 27140132771 | 1 |
| 9 | Steering assembly | 27140132841 | 1 |
| 10 | Rear traction seat | 27140104822 | 1 |
| 11 | Plate | 27140132725 | 1 |
| 12 | Pin | 27140105842 | 1 |
| 13 | Pin GB91-6.3*71EpZn-Q235A | 4016010125 | 1 |
| 14 | Bolt GB5786-M16*1.5*50flZnyc-12.9-480 | 4011010555 | 28 |
| 15 | Washer GB97.1-16EpZn-300HV | 4015000181 | 44 |
| 16 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 36 |
| 17 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 8 |
| 18 | Front pull hook | 27140119692 | 2 |
| 19 | Front guard | 27140123541 | 1 |
| 20 | Bolt GB5786-M16*1.5*35flZnyc-12.9-480 | 4011010534 | 8 |
| 21 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 4 |
