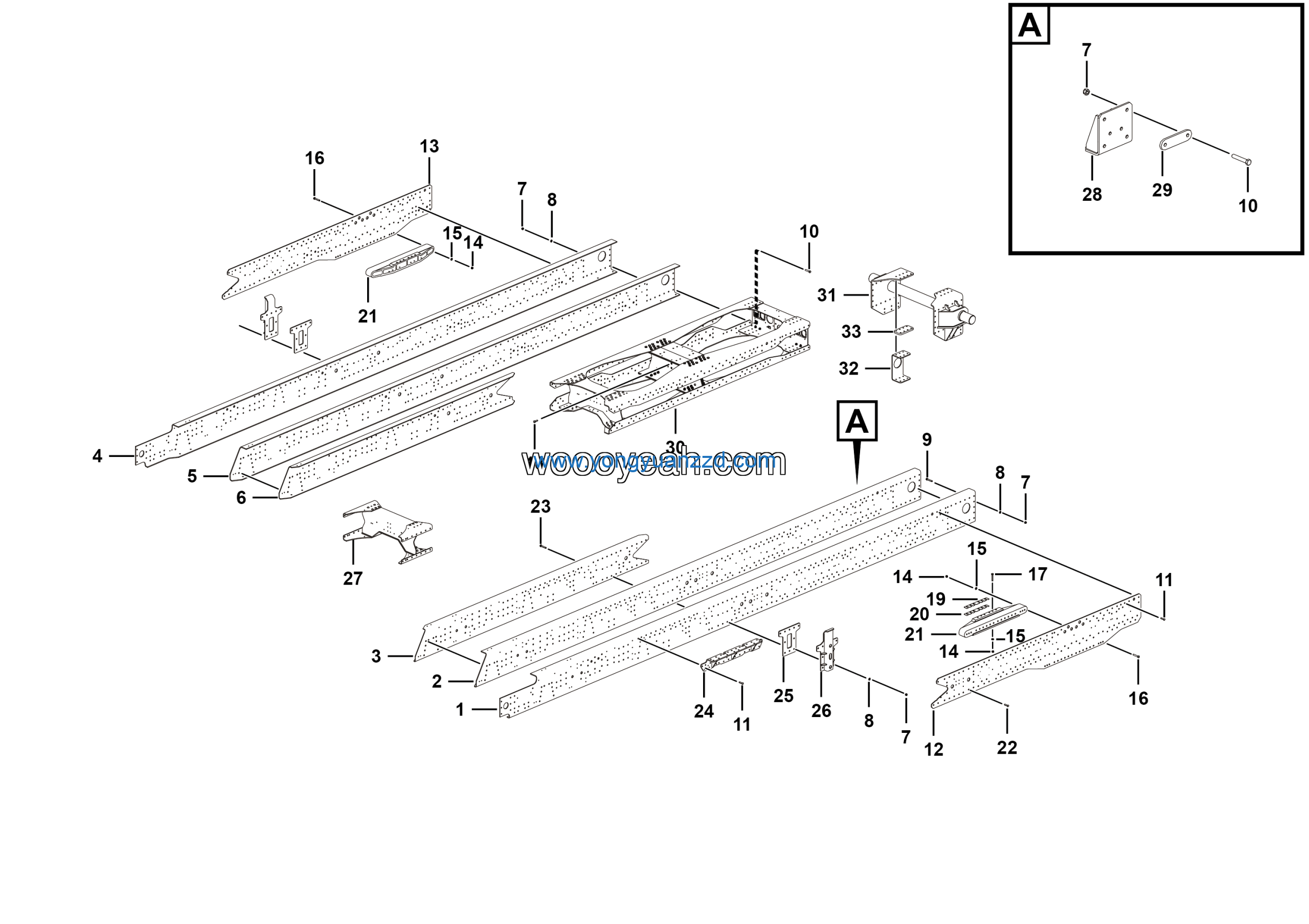

LGMG Off-Highway Dump Truck 2022 – Frame – I1401-2714015940
Category: 2022 > Off-Highway Dump Truck > CMT108 > C1080W3A0M302
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB5785-M16*1.5*75-12.9 | 4011010391 | 52 |
| 2 | RIVET GB867-16*60 | 4019000137 | 210 |
| 3 | Left connect plate | 27140155981 | 1 |
| 4 | Connectuion plate rh | 27140159441 | 1 |
| 5 | NUT GB6185-M18*1.5EpZn-12 | 4013010252 | 48 |
| 6 | Washer GB1230-18EpZn-45 | 4015010219 | 48 |
| 7 | Bolt GB5786-M18*1.5*55-12.9 | 4011010739 | 36 |
| 8 | Bolt GB5785-M18*1.5*80-12.9 | 4011010700 | 12 |
| 9 | BOLT GB5786-M16*1.5*50-12.9 | 4011010738 | 32 |
| 10 | Trimmed gasket | 27140124522 | 2 |
| 11 | Left carling | 27140155921 | 1 |
| 12 | Trimmed gasket | 27140124532 | 2 |
| 13 | Middle seat | 27140124731 | 2 |
| 14 | RIVET GB867-16*50 | 4019000133 | 4 |
| 15 | Bolt GB5785-M16*1.5*90-12.9 | 4011010471 | 32 |
| 16 | Seat | 27140152201 | 2 |
| 17 | Plate | 27140137741 | 2 |
| 18 | Limet beam assembly | 27140138861 | 2 |
| 19 | Beam assembly | 27140138891 | 1 |
| 20 | Beam | 27140138181 | 2 |
| 21 | Plate | 27140138171 | 2 |
| 22 | Left reinforce carling | 27140155931 | 1 |
| 23 | Balance shaft reinforce transverse beam assembly | 27140138831 | 1 |
| 24 | Beam | 27140137981 | 1 |
| 25 | Plate | 27140138161 | 2 |
| 26 | Plate | 27140138151 | 2 |
| 27 | Left reinforce carling | 27140155941 | 1 |
| 28 | S/mbr rh | 27140159411 | 1 |
| 29 | Reinf beam rh | 27140159421 | 1 |
| 30 | Reinf beam inr rh | 27140159431 | 1 |
| 31 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 150 |
| 32 | Washer GB1230-16-45 | 4015010101 | 64 |
| 33 | Bolt GB5786-M16*1.5*60-12.9 | 4011010219 | 34 |
