LGMG Off-Highway Dump Truck 2022 – Front drive shaft assy – F0903-4110000976
Category: 2022 > Off-Highway Dump Truck > – > M096DW3A0M008

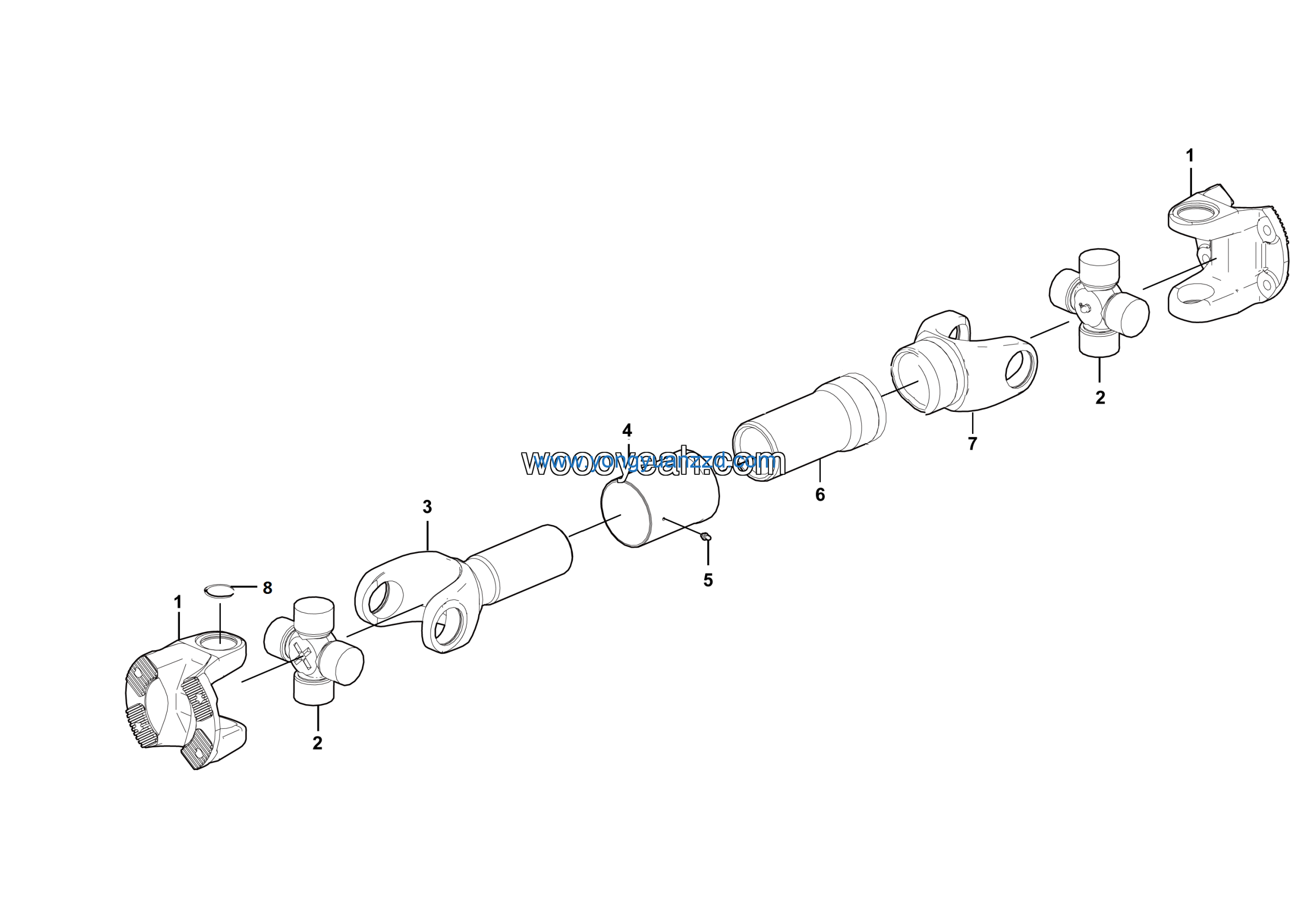

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flange fork 6564110011 | 4110000402010 | 2 |
| 2 | Cross shaft assy 65668165B | 4110000402003 | 2 |
| 3 | Spline shaft fork 6564110105-320 | 4110000976001 | 1 |
| 4 | Sheath pipe assy 395FCZ-120 | 4110000976002 | 1 |
| 5 | Grease nipple M6 | 4110001048006 | 1 |
| 6 | Spline hub 6564110008-225 | 4110000976005 | 1 |
| 7 | Cardan fork 6564112505L | 4110000402009 | 1 |
| 8 | Clip spring 6564110073 | 4110000402002 | 8 |
