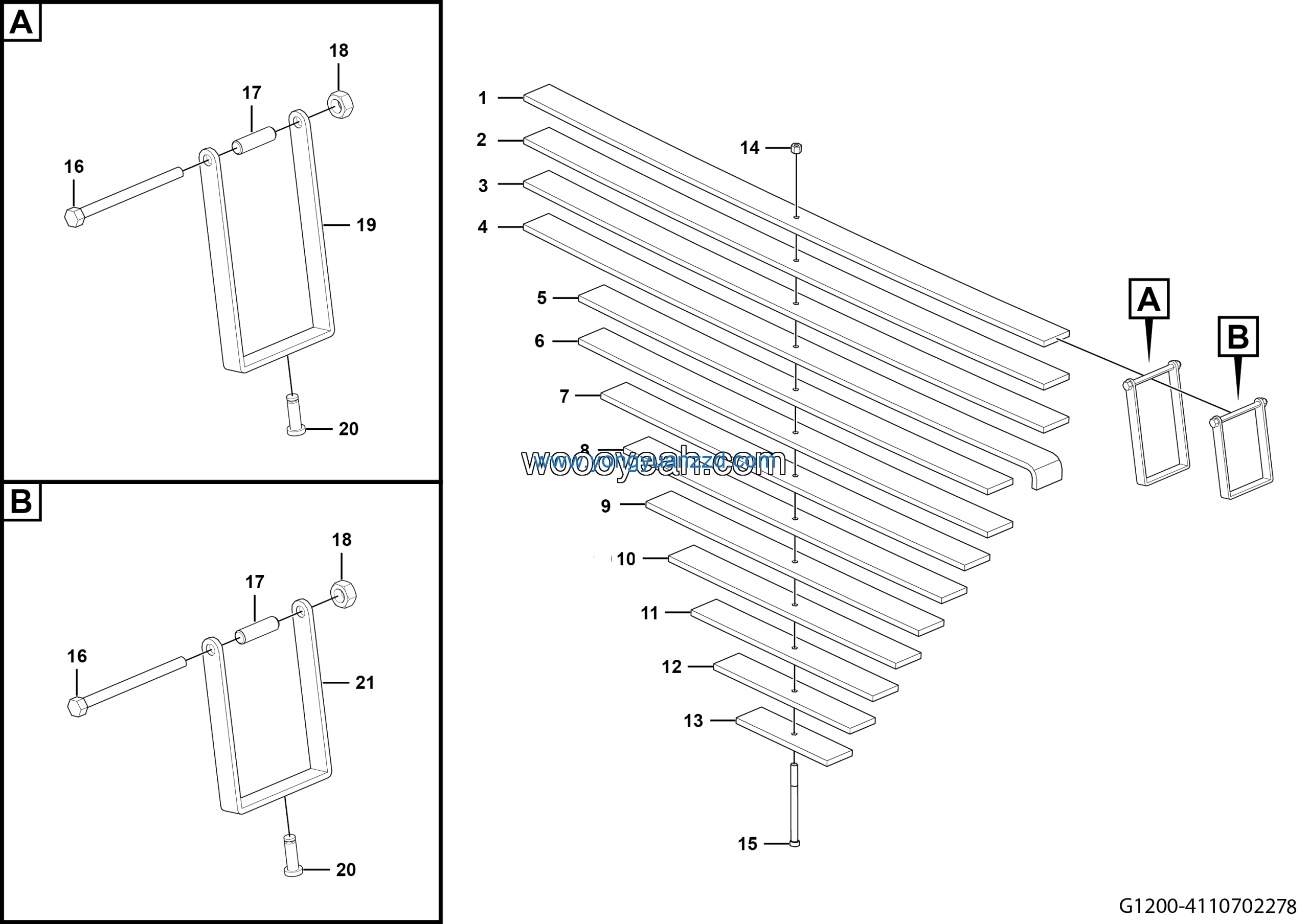

LGMG Off-Highway Dump Truck 2022 – Front leaf spring assy – G1200-4110702278
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HWD94
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 10th leaf of front leaf spring | 4110702278010 | 1 |
| 2 | 11th leaf of front leaf spring | 4110702278011 | 1 |
| 3 | 12th leaf of front leaf spring | 4110702278012 | 1 |
| 4 | 13th leaf of front leaf spring | 4110702278013 | 1 |
| 5 | Center nut | 4110702278014 | 1 |
| 6 | Center bolt | 4110702278015 | 1 |
| 7 | Bolt M10*130 | 4110702278016 | 4 |
| 8 | Bushing | 4110702278017 | 4 |
| 9 | Self-locking nut GB/T 889.1-M10 | 4110702278018 | 4 |
| 10 | No longer used- | 4110702278019 | 2 |
| 11 | Leaf of front leaf spring | 4110702278001 | 1 |
| 12 | Rivet | 4110702278020 | 4 |
| 13 | Clamp | 4110702278021 | 2 |
| 14 | Leaf of front leaf spring | 4110702278002 | 1 |
| 15 | No longer used- | 4110702278003 | 1 |
| 16 | 4th leaf of front leaf spring | 4110702278004 | 1 |
| 17 | 5th leaf of FR leaf spring | 4110702278005 | 1 |
| 18 | 6th leaf of FR leaf spring | 4110702278006 | 1 |
| 19 | 7th leaf of front leaf spring | 4110702278007 | 1 |
| 20 | 8th leaf of front leaf spring | 4110702278008 | 1 |
| 21 | 9th leaf of front leaf spring | 4110702278009 | 1 |
