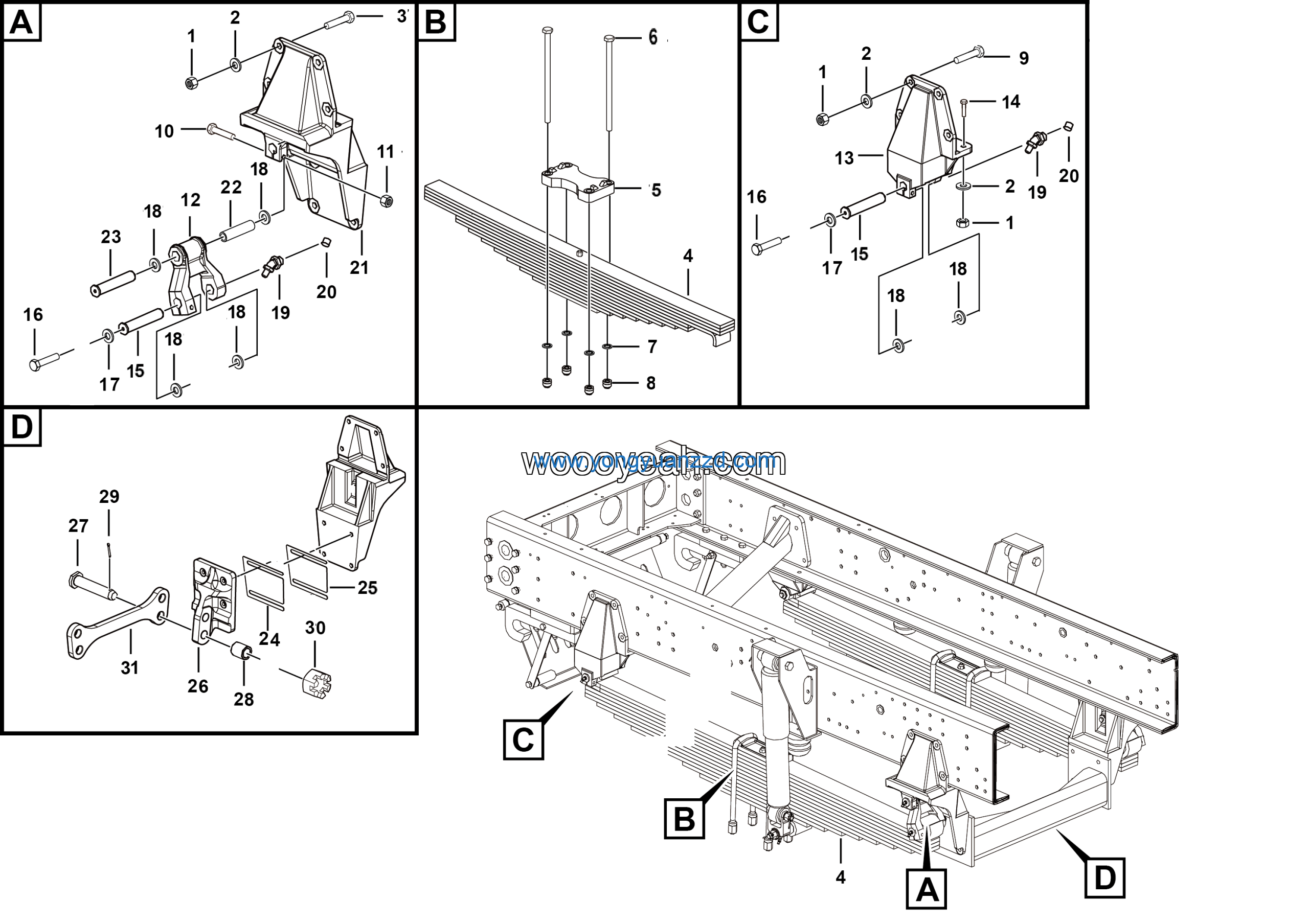

LGMG Off-Highway Dump Truck 2022 – Front leaf spring installation assy – G1201-2712012318
Category: 2022 > Off-Highway Dump Truck > MT60 > M0600WEA5
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5785-M12*1.25*80flZnyc-12.9-480 | 4011010596 | 6 |
| 2 | Nut GB6185.2-M12*1.5flZnyc-12-480 | 4013010260 | 6 |
| 3 | Front spring shackle | 27120106861 | 2 |
| 4 | Front leaf spring front support | 27120106811 | 2 |
| 5 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 12 |
| 6 | Spring pin | 27120107641 | 4 |
| 7 | Screw GB70.1-M10*20EpZn-12.9 | 4014010110 | 6 |
| 8 | Washer | 27120118031 | 6 |
| 9 | Washer | 27120103553 | 12 |
| 10 | Grease nipple JB7940.1-M10*1 | 4030000065 | 6 |
| 11 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 28 |
| 12 | Butter nozzle cap JXHF-00006 | 4120000015 | 6 |
| 13 | Front leaf spring rear support | 27120106851 | 2 |
| 14 | Sleeve | 27120107071 | 2 |
| 15 | tanhuangxiao | 27120107651 | 2 |
| 16 | Adjustment gasket | 27120116411 | 2 |
| 17 | Adjustment gasket | 27120117822 | 2 |
| 18 | Second beam seat | 27120116911 | 2 |
| 19 | Pin | 27120113581 | 4 |
| 20 | Sleeve | 27120113901 | 4 |
| 21 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 22 | Washer GB1230-16-45 | 4015010101 | 28 |
| 23 | Nut GB6178-M36EpZn-10 | 4013010114 | 4 |
| 24 | Second beam pole | 27120116921 | 2 |
| 25 | Bolt GB5785-M16*1.5*75flZnyc-12.9-480 | 4011010587 | 8 |
| 26 | FR leaf spring assy | 4110703012 | 2 |
| 27 | Front leaf spring plate | 27120106831 | 2 |
| 28 | Front spring u-bolt | 27120122901 | 4 |
| 29 | Washer GB1230-20EpZn-45 | 4015000002 | 8 |
| 30 | NUT GB56-M20*1.5flZnyc-12-480 | 4013010261 | 8 |
| 31 | Bolt GB5786-M16*1.5*55flZnyc-12.9-480 | 4011010640 | 8 |
