LGMG Off-Highway Dump Truck 2022 – Front leaf spring installation assy – G1201-2712017127.S1A

Category:

LGMG Off-Highway Dump Truck 2022 – Front leaf spring installation assy – G1201-2712017127.S1A

Category: 2022 > Off-Highway Dump Truck > MT60 > M060DW2E0M106

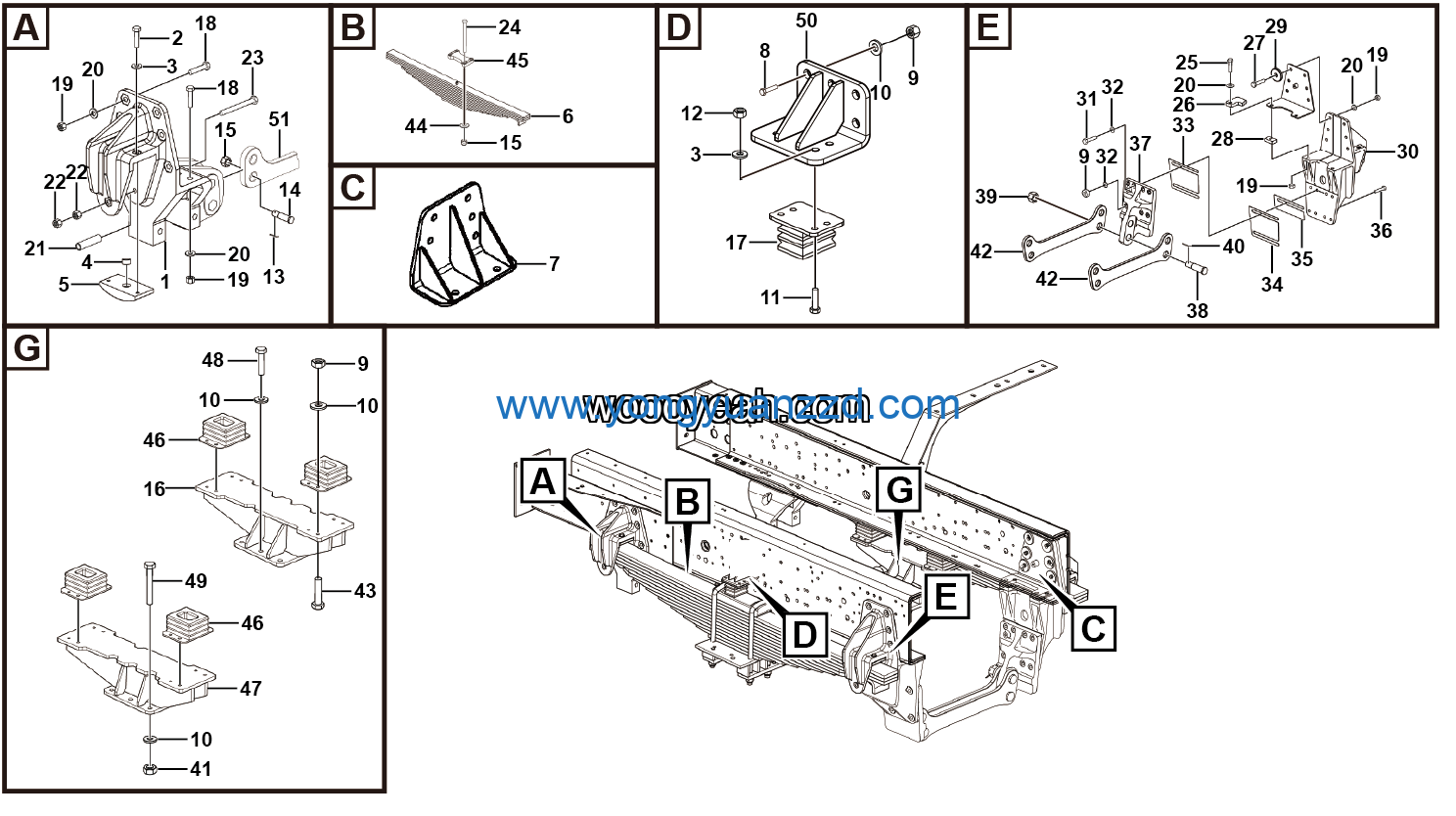

Parts List:

No. Part Name Part Number Qty
1 Washer GB97.1-16EpZn-300HV 4015000181 30
2 Bolt GB5783-M12*40EpZn-8.8 4011000091 8
3 Nut GB6185.1-M12EpZn-8 4013010120 8
4 Pin GB91-6.3*71EpZn-Q235A 4016010125 4
5 Pin40*80 27120123391 4
6 Self-locking nut with the shoulder 27120103611 8
7 Brkt axle rh 27120171402 1
8 Frame side limit block 4110002084 2
9 Bolt GB5785-M18*1.5*85flZnyc-12.9-480 4011010505 4
10 Nut GB6185.2-M18*1.5flZnyc-12-480 4013010239 32
11 Front leaf sring front support saddle 27120116851 2
12 Washer 18 27120105412 32
13 Bolt protection tube 27120100211 4
14 Nut GB6170-M16flZnyc-12-480 4013010254 8
15 Bolt 27120100221 4
16 Bolt 27120171291 8
17 Bolt GB5786-M16*1.5*50flZnyc-12.9-480 4011010555 12
18 Plate 27120117061 2
19 Bolt GB5785-M18*1.5*70flZnyc-12.9-480 4011010497 28
20 Plate 27120171301 2
21 Snap ring 27120114721 4
22 Bolt GB5786-M12*1.25*40EpZn-8.8 4011010169 8
23 Front leaf sring rear support saddle 27120117761 2
24 Bolt GB5786-M16*1.5*60flZnyc-12.9-480 4011010585 4
25 Washer GB1230-16EpZn-45 4015000001 28
26 Adjusting shim 27120114771 2
27 Adjusting shim 27120114781 2
28 Adjustment gasket 27120117822 2
29 Bolt GB5783-M16*50EpZn-8.8 4011000269 4
30 Second beam seat 27120122491 2
31 Pin 27120117331 4
32 Nut GB6178-M36EpZn-10 4013010114 4
33 Washer GB97.1-12EpZn-300HV 4015000168 16
34 Pin GB91-6.3*63EpZn-Q235A 4016000113 4
35 Nut GB6185.2-M16*1.5flZnyc-12-480 4013010255 26
36 Second pole 27120124321 2
37 Bolt GB5783-M16*55EpZn-8.8 4011000612 4
38 Washer 24 27120118761 8
39 Front plate spring plate 27120116871 2
40 Lower limit block of the frame 4110001108 4
41 Brkt axle lh 27120171392 1
42 BOLT GB5786-M16*1.5*40flZnyc-12.9-480 4011010582 8
43 Bolt GB5785-M16*1.5*80flZnyc-12.9-480 4011010592 12
44 Cushion block 27120113681 4
45 Side limit brkt welding 27120171311 2
46 First cross beam 27120116881 1
47 Wearing piece 27120114992 4
48 FR leaf spring assy LG12-13*100*4*18/16 4110705793 2
49 Seat 27120117051 2
50 Bolt GB5785-M16*1.5*140flZnyc-12.9-480 4011010583 2
51 Nut GB6185.1-M16EpZn-8 4013010122 8
