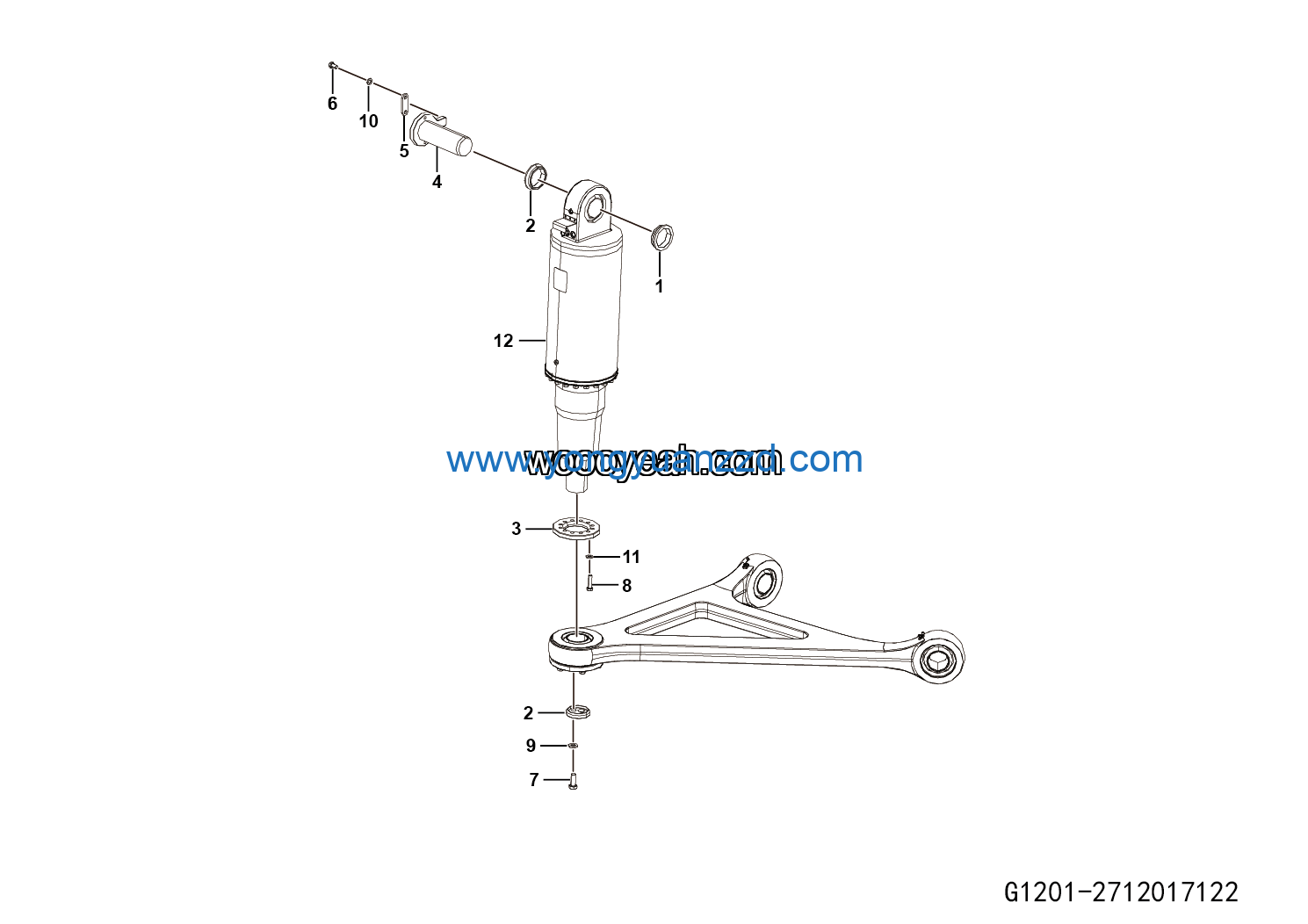

LGMG Off-Highway Dump Truck 2022 – Front oil and gas spring assy – G1201-2712017122
Category: 2022 > Off-Highway Dump Truck > RT136 > R1260W3A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 2 | Washer GB1230-12EpZn-45 | 4015000288 | 25 |
| 3 | FR oil & gas spring assy 170/200-220 | 4110705000 | 2 |
| 4 | Spacer 70×20 | 27120169311 | 4 |
| 5 | Flange | 27120169371 | 2 |
| 6 | Flange | 27120170391 | 2 |
| 7 | Pin | 27120170951 | 2 |
| 8 | Pin plate | 27120171101 | 2 |
| 9 | Bolt GB5783-M12*20EpZn-8.8 | 4011000087 | 4 |
| 10 | Bolt GB5783-M16*40flZnyc-12.9-480 | 4011010676 | 4 |
| 11 | Bolt GB5783-M12*45flZnyc-12.9-480 | 4011010923 | 25 |
| 12 | Washer GB1230-16EpZn-45 | 4015000001 | 4 |
