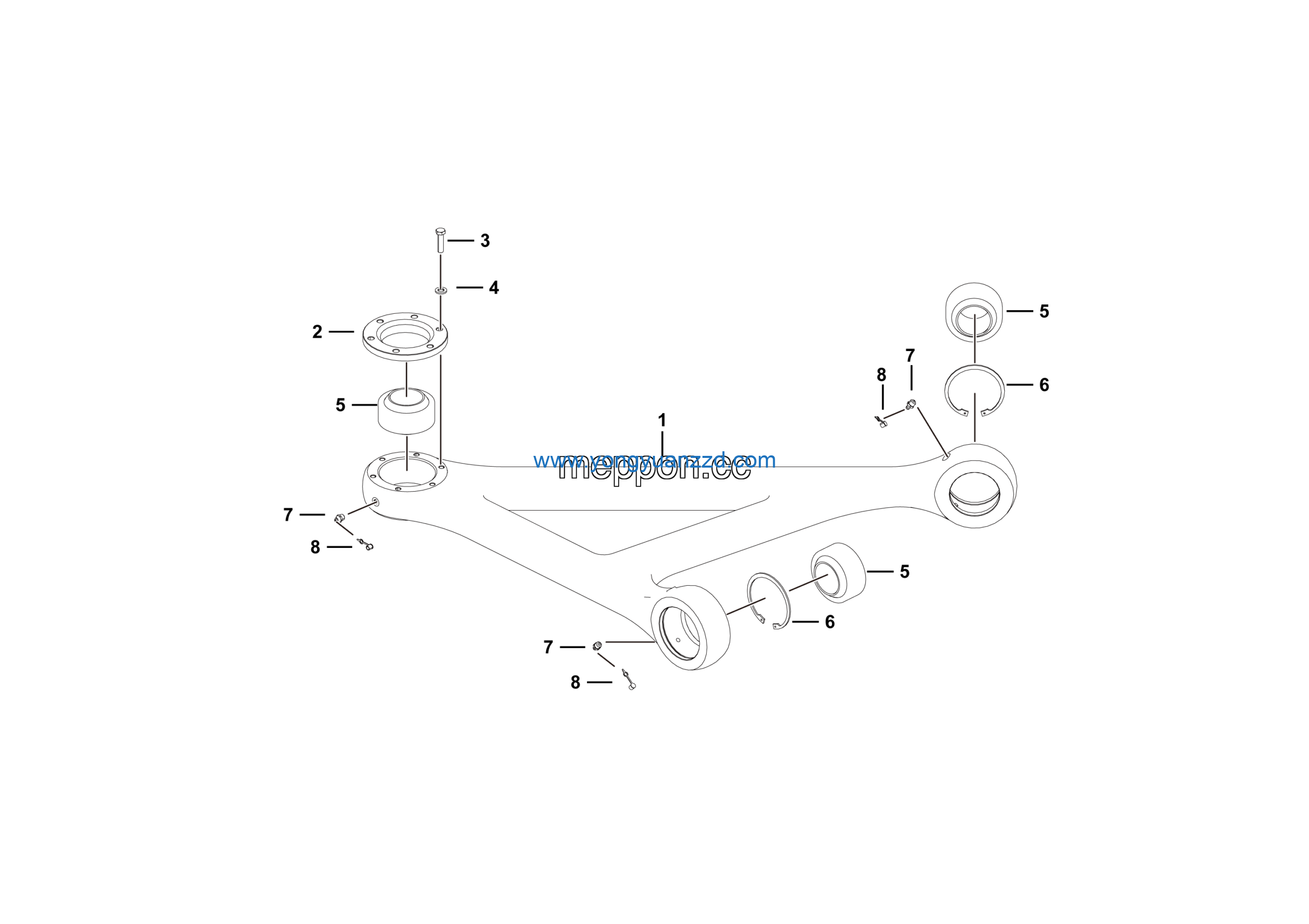

LGMG Off-Highway Dump Truck 2022 – Front suspension RH lower arm installation assy – G1200-2712016929.S1A
Category: 2022 > Off-Highway Dump Truck > RT126 > R1260W3A0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lower suspension arm | 27120169201 | 1 |
| 2 | Bearing flange | 27120169301 | 1 |
| 3 | Bolt GB5783-M12*45flZnyc-12.9-480 | 4011010923 | 6 |
| 4 | Washer GB1230-12EpZn-45 | 4015000288 | 6 |
| 5 | Bearing GB9163-GEG70ES-2RS | 4021010011 | 3 |
| 6 | Snap ring GB893-120-65Mn | 4015010553 | 2 |
| 7 | Grease nipple JB7940.1-M10*1 | 4030000065 | 3 |
| 8 | Butter nozzle cap JXHF-00006 | 4120000015 | 3 |
