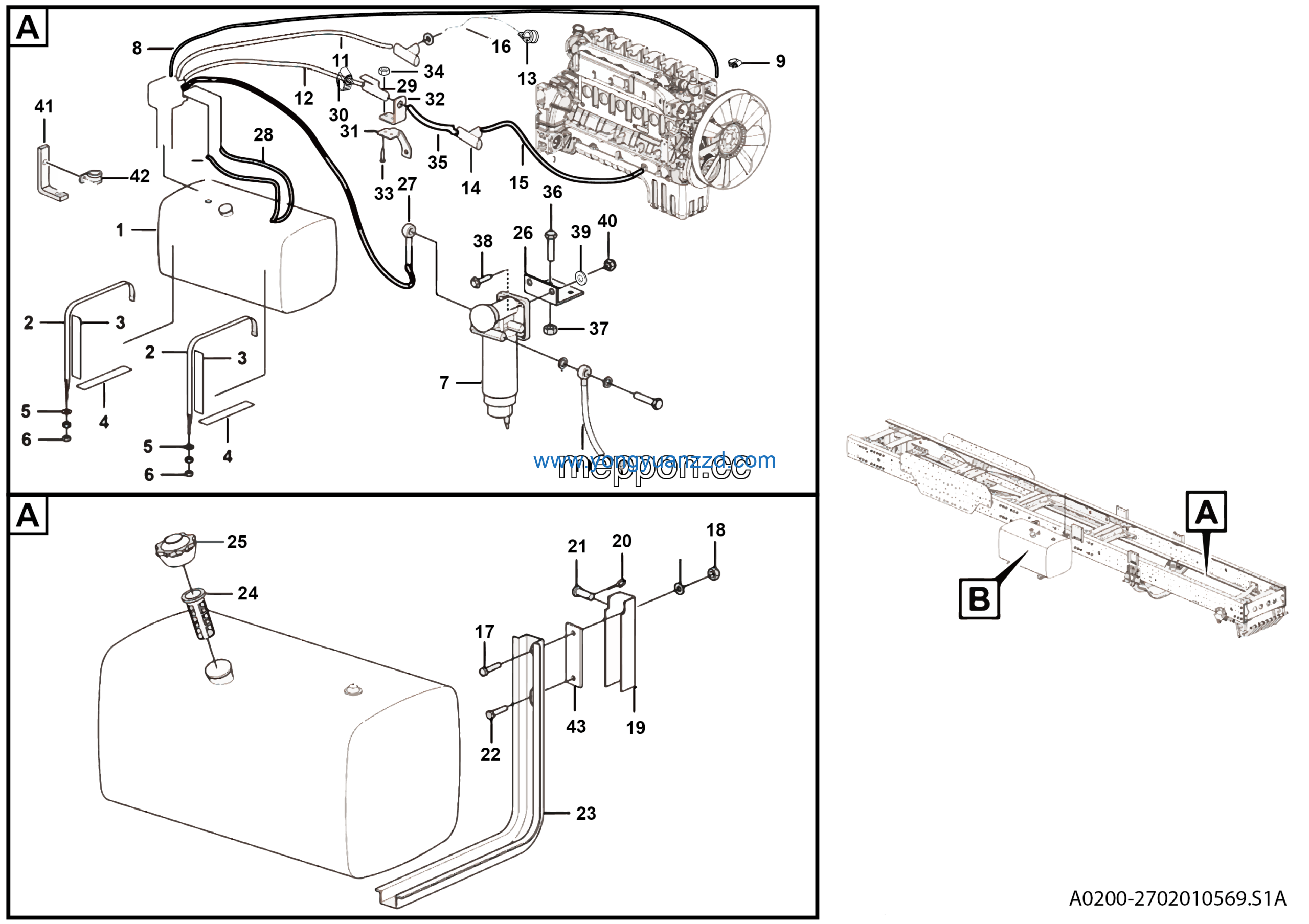

LGMG Off-Highway Dump Truck 2022 – Fuel tank assy – A0100-2702010569.S1A-G1
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M010
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe2 | 27020105842 | 1 |
| 2 | Pipe | 27020105171 | 1 |
| 3 | Pipe | 27020105161 | 1 |
| 4 | Hose clamp JB8870-D32 | 4017000011 | 8 |
| 5 | Three direction pipe | 27020104481 | 2 |
| 6 | Connecting pipe | 27020107651 | 1 |
| 7 | Pipe | 27020107671 | 1 |
| 8 | Bolt GB5782-M16*90EpZn-8.8 | 4011000069 | 3 |
| 9 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 10 | Fixed plate | 27020101021 | 3 |
| 11 | Dual chamber fuel tank 650L | 4190707532 | 1 |
| 12 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
| 13 | Pin | 4110000120 | 3 |
| 14 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 3 |
| 15 | Fuel tank bracket assy | 4110000118 | 3 |
| 16 | Fuel sieve | 4110000046 | 2 |
| 17 | Aluminium oil box cover | 4049010004 | 2 |
| 18 | Support | 27020105801 | 1 |
| 19 | Pipe | 27020105831 | 1 |
| 20 | Pipe | 27020104661 | 2 |
| 21 | Valve assembly | 27210103841 | 1 |
| 22 | Cable tie assy | 4110000119 | 3 |
| 23 | Hose clamp JB8870-D32 | 4017000011 | 8 |
| 24 | Ball support | 27210104091 | 1 |
| 25 | Support ⅱ | 27020104571 | 1 |
| 26 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 2 |
| 27 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 7 |
| 28 | Pipe ⅰ | 27020104461 | 1 |
| 29 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 2 |
| 30 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 31 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 6 |
| 32 | Washer GB97.1-10EpZn-300HV | 4015000162 | 7 |
| 33 | Flap | 4110000121 | 3 |
| 34 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 35 | Plate | 27160104461 | 2 |
| 36 | Pipe clamp | 26370001951 | 4 |
| 37 | Backing plate | 27020101971 | 2 |
| 38 | Flap | 4110000122 | 6 |
| 39 | Washer GB97.1-16EpZn-300HV | 4015000181 | 9 |
| 40 | Nut GB6170-M16EpZn-8 | 4013000016 | 6 |
| 41 | Engine fuel filter | 4110702781 | 1 |
| 42 | Pipe | 27020105821 | 1 |
| 43 | Hose clamp JB8870-D20 | 4017000010 | 10 |
