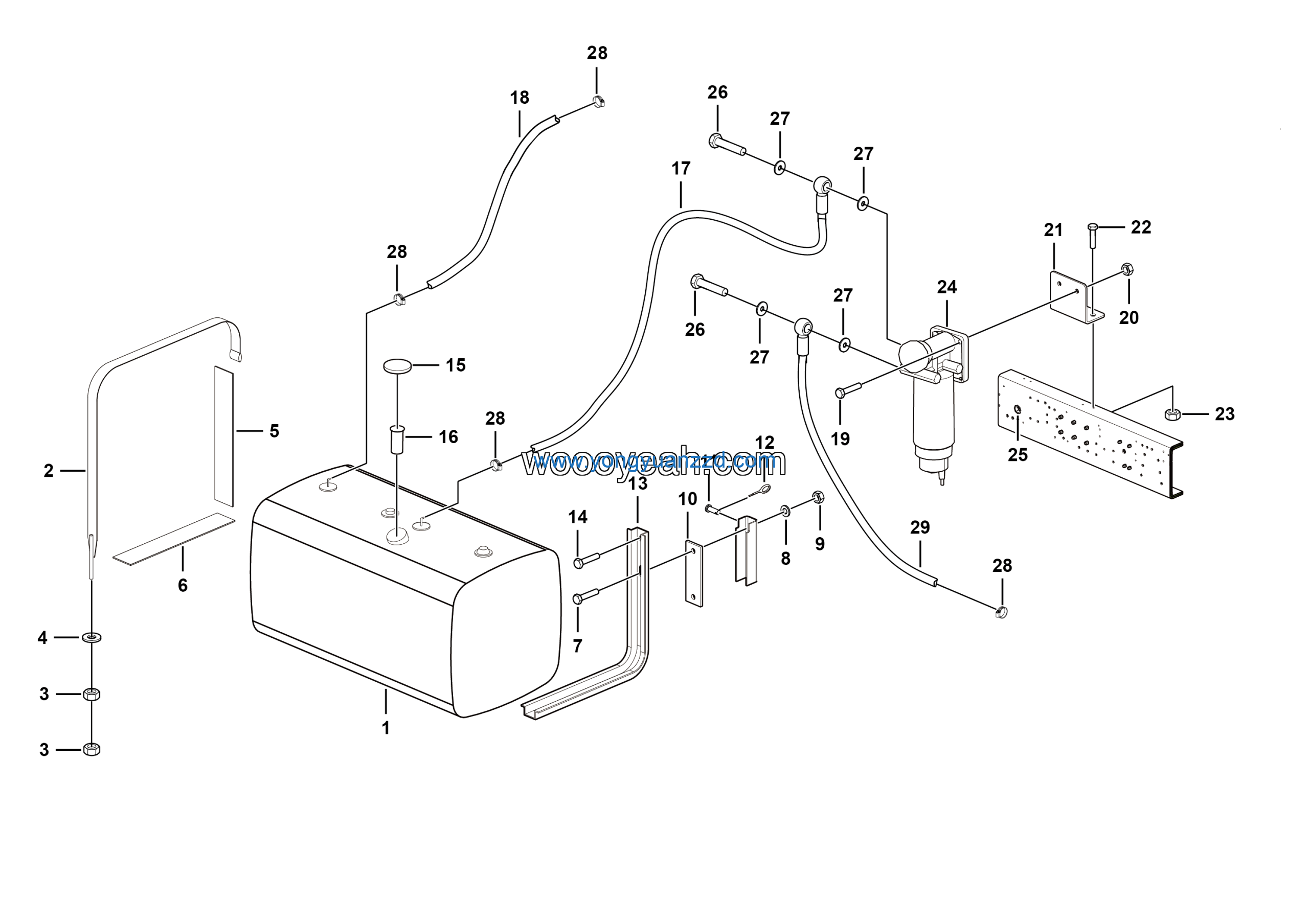

LGMG Off-Highway Dump Truck 2022 – Fuel tank assy – A0203-2702010311
Category: 2022 > Off-Highway Dump Truck > MT60D > M060DWA07
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fixed plate | 27020101021 | 2 |
| 2 | Pin | 4110000120 | 2 |
| 3 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 2 |
| 4 | Fuel tank bracket assy | 4110000118 | 2 |
| 5 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 1 |
| 6 | Aluminium oil box cover | 4049010004 | 1 |
| 7 | Fuel sieve | 4110000046 | 1 |
| 8 | Fuel pipe | 27020104321 | 1 |
| 9 | Fuel pipe ii | 27020102631 | 1 |
| 10 | Bolt GB16674.1-M12*45EpZn-8.8 | 4011000467 | 2 |
| 11 | Fuel tank | 4110000583 | 1 |
| 12 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 13 | Support | 27020104141 | 1 |
| 14 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 16 | Engine fuel filter | 4110702781 | 1 |
| 17 | String casing | 27140105021 | 2 |
| 18 | Bolt JB999-M16*1.5*35EpZn-35 | 4011000318 | 2 |
| 19 | Washer JB1002-16-T2 | 4015000120 | 5 |
| 20 | Hose clamp JB8870-D20 | 4017000010 | 4 |
| 21 | Fuel pipe | 27020104321 | 1 |
| 22 | Cable tie assy | 4110000119 | 2 |
| 23 | Nut GB6170-M16EpZn-8 | 4013000016 | 4 |
| 24 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 25 | Flap | 4110000121 | 2 |
| 26 | Flap | 4110000122 | 4 |
| 27 | Bolt GB5783-M16*70EpZn-10.9 | 4011010204 | 1 |
| 28 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 29 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 4 |
