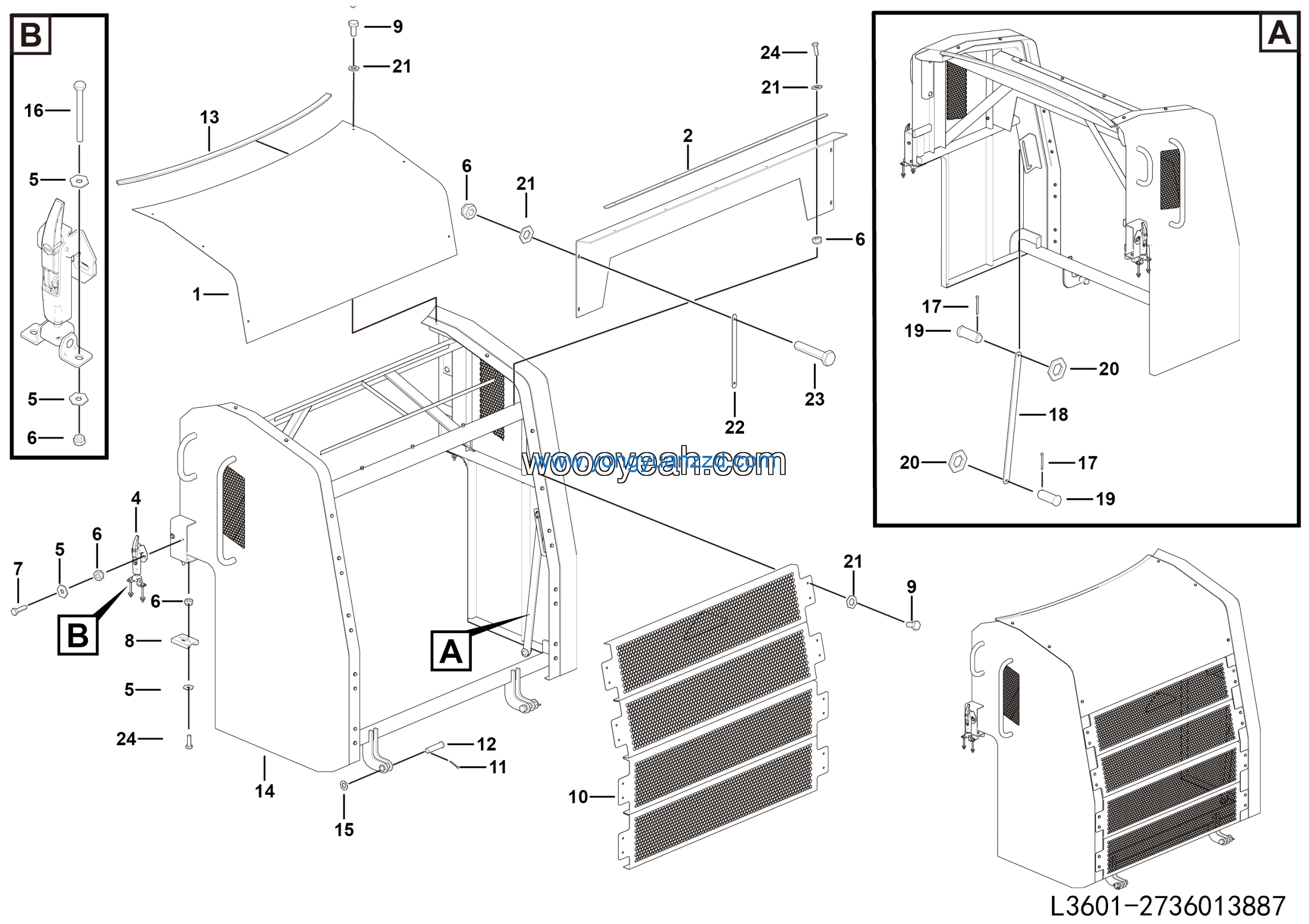

LGMG Off-Highway Dump Truck 2022 – Hood mounting assy – L3601-2736013887
Category: 2022 > Off-Highway Dump Truck > RTH106 > R1060Y3A0A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | FIRST CROSSWISE BEAM RIGHT CONNECT PLATE | 27360117161 | 3 |
| 2 | Pin GB91-5*40EpZn-Q235A | 4016000127 | 2 |
| 3 | Pin GB882-B24*90EpZn-35 | 4016010151 | 2 |
| 4 | PLATE | 27360117151 | 1 |
| 5 | Cover plate welding | 27360138881 | 1 |
| 6 | Washer GB97.1-24EpZn-300HV | 4015000167 | 2 |
| 7 | Bolt GB5782-M8*85EpZn-8.8 | 4011000303 | 4 |
| 8 | Pin GB91-3.2*26EpZn-Q235A | 4016000179 | 2 |
| 9 | Rod bending | 27360130651 | 1 |
| 10 | Pin GB882-B16*40EpZn-35 | 4016010153 | 2 |
| 11 | Cover plate welding | 27360134431 | 1 |
| 12 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 13 | Washer GB97.1-8EpZn-300HV | 4015000072 | 31 |
| 14 | Plate | 27360109021 | 2 |
| 15 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 4 |
| 16 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 9 |
| 17 | Plate | 27360108931 | 1 |
| 18 | Plate | 27360117171 | 1 |
| 19 | Lock chain DK636-1（ShengJiu） | 4190704689 | 2 |
| 20 | Washer GB96.1-8EpZn-300HV | 4015000256 | 16 |
| 21 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 21 |
| 22 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 23 | Plate | 27360131911 | 2 |
| 24 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 23 |
