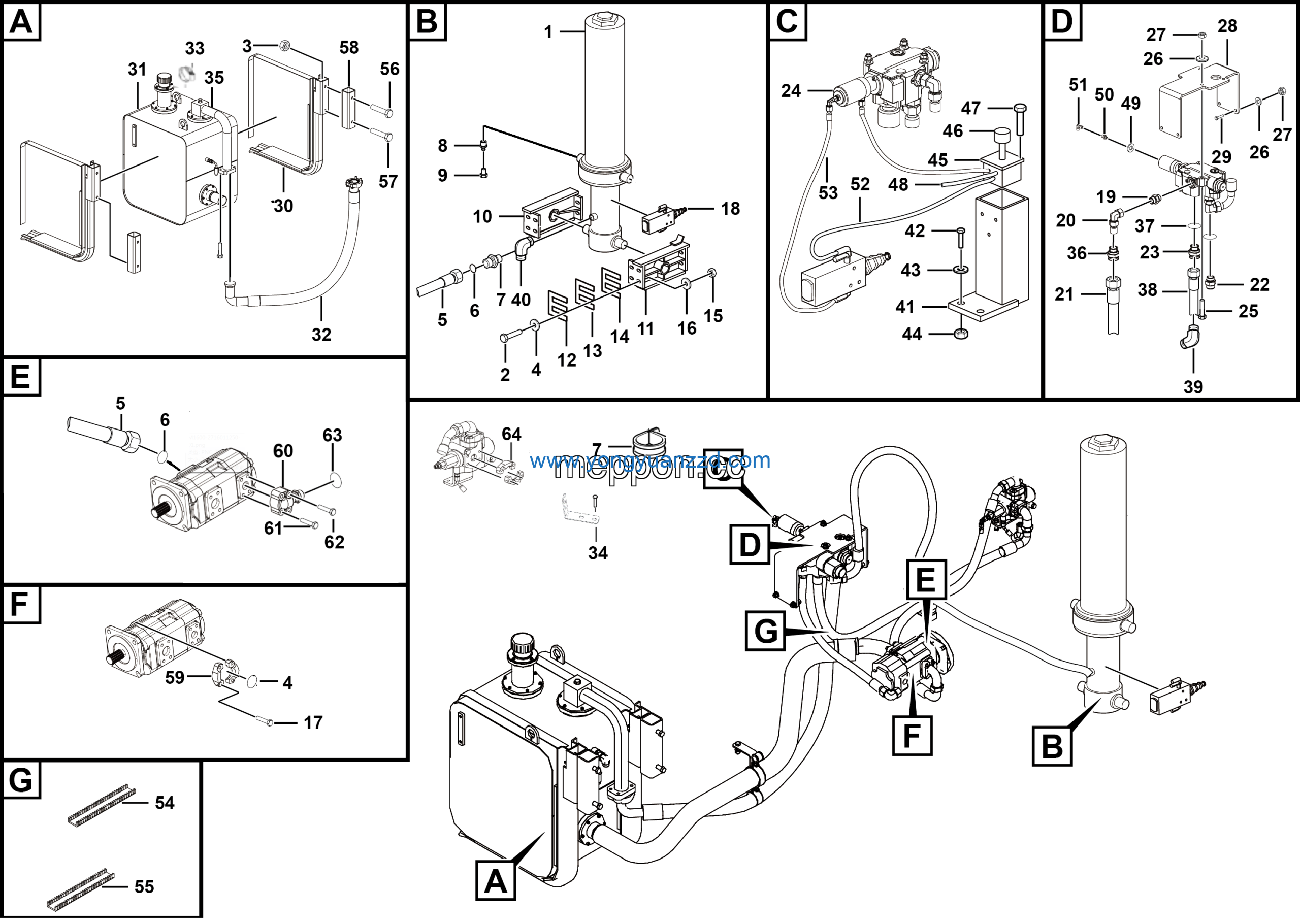

LGMG Off-Highway Dump Truck 2022 – Hydraulic lifting system – M1600-2716012138
Category: 2022 > Off-Highway Dump Truck > MT106 > M1060W3A0A008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Frame bracket KKZZ-DHJXZ-LGA | 4120709019 | 1 |
| 2 | Frame bracket KKZZ-DHJXZ-LGA-01 | 4120709020 | 1 |
| 3 | Trimmed gasket | 27160106411 | 1 |
| 4 | Trimmed gasket | 27160106421 | 1 |
| 5 | Trimmed gasket | 27160106431 | 1 |
| 6 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 16 |
| 7 | Washer GB1230-16EpZn-45 | 4015000001 | 32 |
| 8 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 4 |
| 9 | Limit valve | 4120001018 | 1 |
| 10 | Straight joint 1CH-30-33 | 4120001887 | 1 |
| 11 | Lifting cylinder 4TG-F191*5090 | 4120708221 | 1 |
| 12 | Combination joint LGB143-03019 | 4041001262 | 2 |
| 13 | High pressure hose -1650 | 27160105702 | 1 |
| 14 | Nipple | 27160120241 | 1 |
| 15 | Connector | 27160116192 | 1 |
| 16 | Lifting valve | 4120002439 | 1 |
| 17 | Bolt GB5782-M12*65EpZn-8.8 | 4011000261 | 3 |
| 18 | Washer GB97.1-12EpZn-300HV | 4015000168 | 10 |
| 19 | Nut GB6170-M12EpZn-8 | 4013000011 | 12 |
| 20 | Lifting valva bracket | 27160116722 | 1 |
| 21 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 22 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 16 |
| 23 | Hydraulic oil tank bracket assembly | 27160120881 | 2 |
| 24 | Hydraulic oil tank assembly | 27160120921 | 1 |
| 25 | Pipe | 27160121021 | 1 |
| 26 | Hose clamp JB8870-D70 | 4017000017 | 4 |
| 27 | Plate | 27160121001 | 1 |
| 28 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 5 |
| 29 | Straight joint LGB120-03633 | 4041000577 | 2 |
| 30 | O-ring LGB168-12931 | 4041000765 | 2 |
| 31 | Hose | 27160112541 | 1 |
| 32 | Pipe | 27160120991 | 1 |
| 33 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 4 |
| 34 | JOINT LGB143-03625 | 4041001211 | 2 |
| 35 | Bracket | 27160100061 | 1 |
| 36 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 37 | Washer GB97.1-10EpZn-300HV | 4015000162 | 7 |
| 38 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 39 | Control air valve | 4120001017 | 1 |
| 40 | Pneumatic valve mounting kit | 4120001024 | 1 |
| 41 | Bolt GB16674.1-M6*12EpZn-8.8 | 4011010234 | 3 |
| 42 | Pipe | 27160115691 | 1 |
| 43 | Vertical nipple | 27130111131 | 2 |
| 44 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 1 |
| 45 | Copper washer 10 | 27100101091 | 2 |
| 46 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 47 | Pipe | 27160113251 | 1 |
| 48 | Pipe | 27160113241 | 1 |
| 49 | PIPE | 27400104391 | 1 |
| 50 | GUARD | 27160106271 | 1 |
| 51 | Bolt GB5782-M16*120EpZn-10.9 | 4011000622 | 2 |
| 52 | Bolt GB5782-M16*110EpZn-10.9 | 4011000730 | 2 |
| 53 | Tube | 27160109731 | 2 |
| 54 | Split flange LGB117-312551 | 4041000027 | 1 |
| 55 | High pressure hose -850 | 27160112492 | 1 |
| 56 | Outlet oil block | 27150109031 | 1 |
| 57 | Bolt GB16674.1-M10*50EpZn-8.8 | 4011000309 | 2 |
| 58 | Bolt GB16674.1-M10*55EpZn-8.8 | 4011000473 | 2 |
| 59 | O-ring GB3452.1-37.5*3.55G | 4030000029 | 1 |
| 60 | Flange fittings | 27150109871 | 1 |
| 61 | O-ring GB3452.1-32.5*2.65G | 4030000276 | 1 |
| 62 | PLATE | 27030112151 | 1 |
| 63 | Butter nozzle | 4120001010 | 3 |
| 64 | Butter nozzle cap JXHF-00006 | 4120000015 | 3 |
