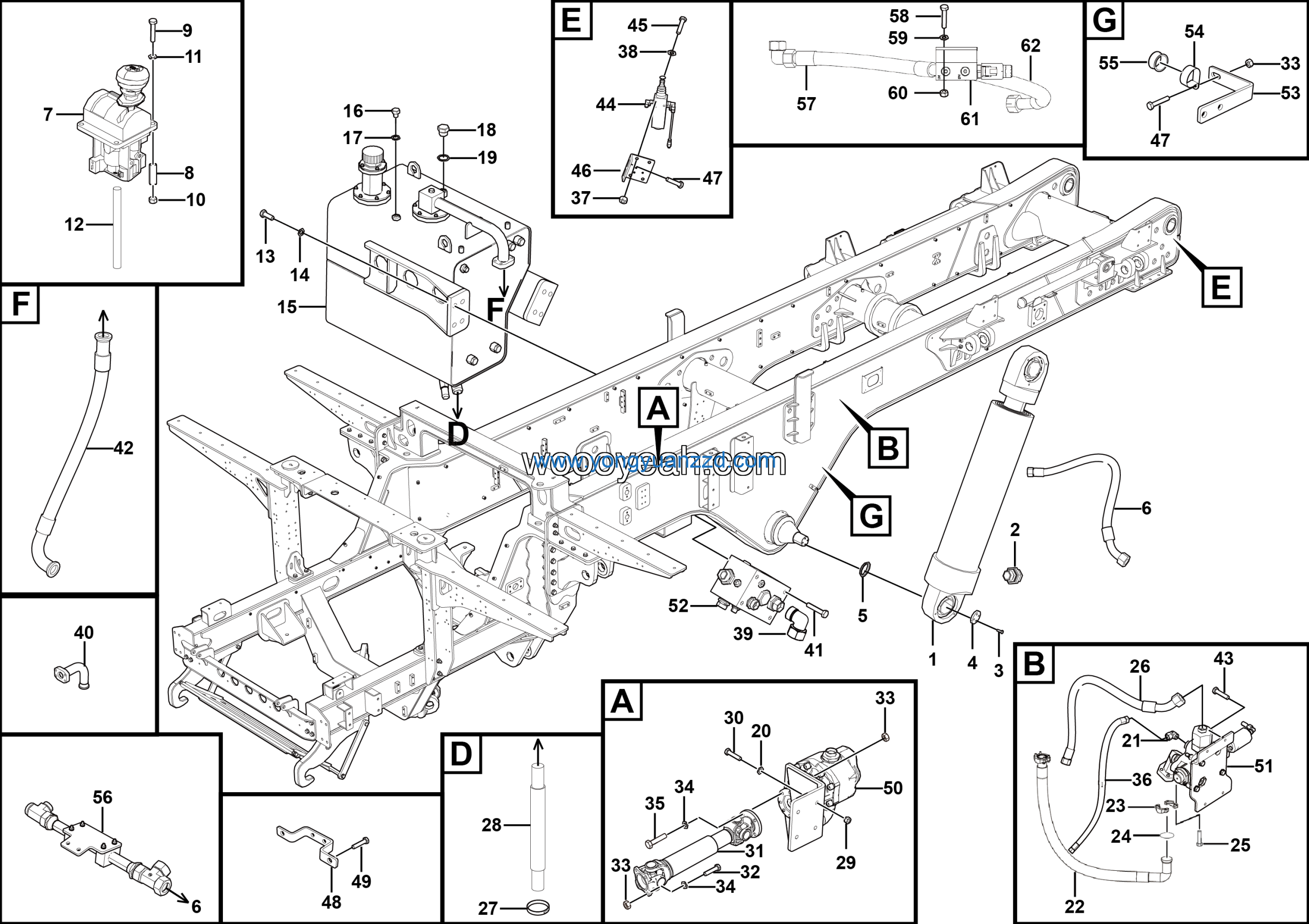

LGMG Off-Highway Dump Truck 2022 – Hydraulic lifting system – M1601-2716012134.S1A
Category: 2022 > Off-Highway Dump Truck > RTH106 > R1060Y3A0A000
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | No longer used | 4013000118 | 4 |
| 2 | Washer GB97.1-5EpZn-300HV | 4015000110 | 4 |
| 3 | Gas line | 4120001022 | 1 |
| 4 | Bolt GB5783-M20*50flZnyc-12.9-480 | 4011010679 | 8 |
| 5 | Washer GB97.1-20EpZn-300HV | 4015000176 | 8 |
| 6 | Hydraulic oil tank assembly | 27160119572 | 1 |
| 7 | Nut LGB135-01422 | 4041000774 | 1 |
| 8 | O-ring LGB168-11124 | 4041000767 | 1 |
| 9 | Plug LGB135-02732 | 4041001057 | 3 |
| 10 | O-ring LGB168-12331 | 4041000779 | 3 |
| 11 | Lifting cylinder PFS174-5-3172 | 4120708066 | 2 |
| 12 | Washer GB97.1-12EpZn-300HV | 4015000168 | 11 |
| 13 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 14 | JOINT LGB143-03625 | 4041001211 | 1 |
| 15 | TUBE LGB161-014164 | 4041001639 | 1 |
| 16 | FLANGE LGB117-314651 | 4041000010 | 5 |
| 17 | O-ring GB3452.1-47.5*3.55G | 4030000130 | 5 |
| 18 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 20 |
| 19 | High pressure hose assembly | 27160108231 | 1 |
| 20 | Double head double layer clamp 50-60 | 4120000953 | 4 |
| 21 | Pipe | 27160119591 | 1 |
| 22 | Straight joint 1CG-36-16 | 4120000759 | 2 |
| 23 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 24 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 4 |
| 25 | Power takeoff transmisson shaft LG16-CDZ-440 | 4110705039 | 1 |
| 26 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 27 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 9 |
| 28 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 29 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 30 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 31 | Hose assembly | 27160108571 | 1 |
| 32 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 4 |
| 33 | Bolt GB5783-M12*45flZnyc-12.9-480 | 4011010923 | 8 |
| 34 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 35 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 36 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 37 | PIPE | 27160113431 | 1 |
| 38 | Joint | 27160119911 | 1 |
| 39 | Bolt GB5783-M10*105EpZn-8.8 | 4011010136 | 4 |
| 40 | pipe | 4041010838 | 1 |
| 41 | Combination joint LGB143-03019 | 4041001262 | 1 |
| 42 | HOSE | 4041010835 | 1 |
| 43 | Limit valve | 4120001018 | 1 |
| 44 | Plate | 27160120022 | 2 |
| 45 | Bolt GB5782-M6*55EpZn-8.8 | 4011010517 | 3 |
| 46 | Plate | 27160119862 | 1 |
| 47 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 11 |
| 48 | Plate | 27160119981 | 1 |
| 49 | BOLT GB5783-M10*20EPZN-8.8 | 4110000081 | 4 |
| 50 | Pipe clamp LGB167-0740 | 4041000868 | 4 |
| 51 | Lift pump installation assembly | 2716012121 | 1 |
| 52 | Lift valve installation assembly | 2716012123 | 1 |
| 53 | Solenoid ball valve installation assembly | 27160121251 | 1 |
| 54 | Oil return block installation assembly | 2716012126 | 1 |
| 55 | Spacer | 27160120031 | 2 |
| 56 | Plate | 27160119902 | 3 |
| 57 | Pipe clamp LGB167-0740 | 4041000868 | 2 |
| 58 | Cushion sleeve LGB123-0740 | 4041000869 | 2 |
| 59 | Lifting steel pipe assembly | 27160121331 | 1 |
| 60 | Hose-1250 | 27160116101 | 2 |
| 61 | Control air valve | 4120001017 | 1 |
| 62 | Pneumatic valve mounting kit | 4120001024 | 1 |
| 63 | Bolt GB5783-M5*25EpZn-8.8 | 4011000592 | 4 |
