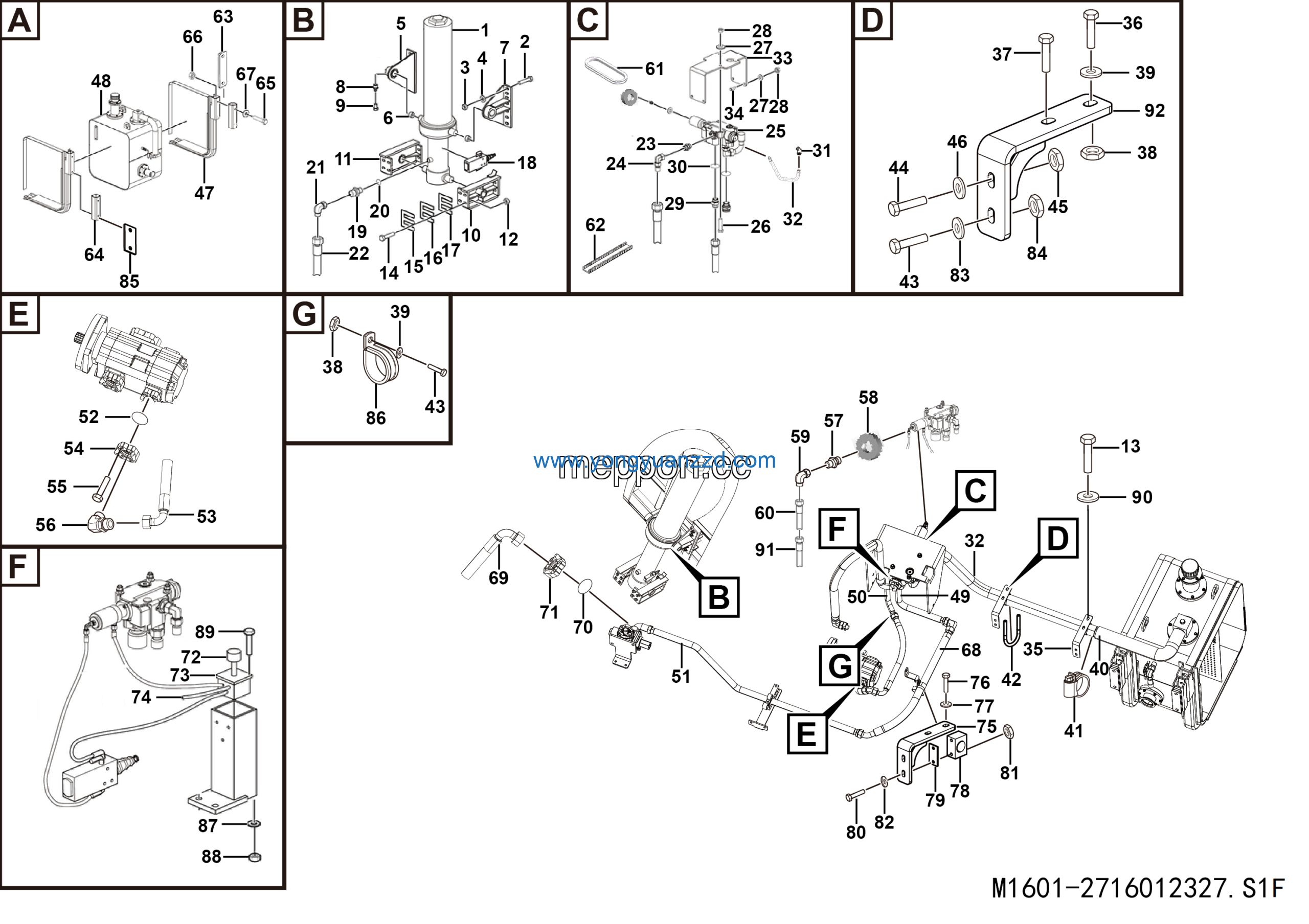

LGMG Off-Highway Dump Truck 2022 – Hydraulic lifting system – M1601-2716012327.S1F
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A2M003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Frame bracket（RH） | 4120710299 | 1 |
| 2 | Frame bracket（LH） | 4120710300 | 1 |
| 3 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 16 |
| 4 | Bolt GB5782-M8*95EpZn-8.8 | 4011000536 | 2 |
| 5 | Bolt QC340-M18*1.5*60EpZn-10.9 | 4011011616 | 16 |
| 6 | Trimmed gasket | 27160106411 | 1 |
| 7 | Trimmed gasket | 27160106421 | 1 |
| 8 | Trimmed gasket | 27160106431 | 1 |
| 9 | Limit valve | 4120001018 | 1 |
| 10 | Nipple | 27160120241 | 1 |
| 11 | Lifting cylinder 4TG-F196*5060ZZ-02 | 4120708553 | 1 |
| 12 | O-ring GB3452.1-32.5*2.65G | 4030000276 | 1 |
| 13 | JOINT LGB143-03625 | 4041001211 | 3 |
| 14 | Hose | 27160112541 | 1 |
| 15 | Straight joint 1CH-30-33 | 4120001887 | 1 |
| 16 | Combination joint LGB143-03019 | 4041001262 | 1 |
| 17 | Lifting valve | 4120002439 | 1 |
| 18 | Bolt GB5782-M12*65EpZn-8.8 | 4011000261 | 3 |
| 19 | Washer GB97.1-12EpZn-300HV | 4015000168 | 12 |
| 20 | Nut GB6170-M12EpZn-8 | 4013000011 | 12 |
| 21 | Straight joint LGB120-03633 | 4041000577 | 2 |
| 22 | Bolt GB5782-M18*65flZnyc-12.9-480 | 4011010912 | 14 |
| 23 | O-ring LGB168-12931 | 4041000765 | 2 |
| 24 | Connector | 27160116192 | 1 |
| 25 | Pipe | 27160118752 | 1 |
| 26 | Plate | 27160128531 | 1 |
| 27 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 5 |
| 28 | Plate | 27160121821 | 1 |
| 29 | Bolt GB5783-M10*80EpZn-8.8 | 4011000860 | 4 |
| 30 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 31 | Nut GB6170-M10EpZn-8 | 4013000007 | 13 |
| 32 | Washer GB97.1-10EpZn-300HV | 4015000162 | 11 |
| 33 | Nut GB6185.1-M18flZnyc-12-480 | 4013010321 | 14 |
| 34 | Pipe | 27160118771 | 1 |
| 35 | Hose clamp JB8870-D70 | 4017000017 | 4 |
| 36 | U bolt | 27160121841 | 2 |
| 37 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 5 |
| 38 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 2 |
| 39 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 40 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 41 | Hydraulic oil tank bracket assembly | 27160108901 | 2 |
| 42 | Hydraulic oil tank assembly | 27160116562 | 1 |
| 43 | Hose p25-sws-lm36-110 | 27160121911 | 1 |
| 44 | Washer GB1230-18EpZn-45 | 4015010219 | 14 |
| 45 | Input oil pipe | 27150114471 | 1 |
| 46 | Hose p25-swe45-lm36-065 | 27160121901 | 1 |
| 47 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 1 |
| 48 | Flange joint | 27150110651 | 1 |
| 49 | Split flange LGB117-310491 | 4041000026 | 1 |
| 50 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 8 |
| 51 | Combination joint LGB143-13019 | 4041001650 | 1 |
| 52 | Vertical nipple | 27130111131 | 2 |
| 53 | Copper washer 10 | 27100101091 | 2 |
| 54 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 55 | Bracket | 27160121391 | 1 |
| 56 | Pipe | 27160113251 | 2 |
| 57 | PIPE | 27400104391 | 1 |
| 58 | GUARD | 27160106271 | 1 |
| 59 | Hydraulic tank plate | 27160115241 | 3 |
| 60 | Tube | 27160109731 | 2 |
| 61 | Bolt GB5782-M16*150EpZn-10.9 | 4011000734 | 4 |
| 62 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 4 |
| 63 | Washer GB97.1-16EpZn-300HV | 4015000181 | 1 |
| 64 | Pipe | 27160121861 | 1 |
| 65 | Flange fittings | 27150109871 | 1 |
| 66 | BUSHING LGB302-70*65B3 | 4043015519 | 2 |
| 67 | O-ring GB3452.1-37.5*3.55G | 4030000029 | 1 |
| 68 | Split flange LGB117-312551 | 4041000027 | 1 |
| 69 | Control air valve | 4120001017 | 1 |
| 70 | Pneumatic valve mounting kit | 4120001024 | 1 |
| 71 | Lifting pipe | 27160124621 | 1 |
| 72 | Clamps | 27160121791 | 1 |
| 73 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 1 |
| 74 | Washer GB96.1-10EpZn-300HV | 4015000197 | 5 |
| 75 | Clamp TLPG-430 | 4120704063 | 1 |
| 76 | Plate | 27160121801 | 1 |
| 77 | Bracket | 27160121401 | 1 |
| 78 | Bolt GB5782-M6*60EpZn-8.8 | 4011000949 | 2 |
| 79 | Nut GB6185.1-M6EpZn-8 | 4013010117 | 2 |
| 80 | Washer GB96.1-6EpZn-300HV | 4015000198 | 2 |
| 81 | Washer GB96.1-12EpZn-300HV | 4015000186 | 4 |
| 82 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 83 | Plate | 27020105041 | 1 |
| 84 | Pipe clamp, for fixing control valve harness | 26370001961 | 1 |
| 85 | Washer GB97.1-5EpZn-300HV | 4015000110 | 4 |
| 86 | Nut GB6170-M5EpZn-8 | 4013010029 | 4 |
| 87 | Bolt GB5783-M5*25EpZn-8.8 | 4011000592 | 4 |
| 88 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 89 | Plate | 27140154161 | 4 |
| 90 | Lifting pipe | 27160124611 | 1 |
| 91 | Oil return suport | 27160126251 | 1 |
| 92 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
