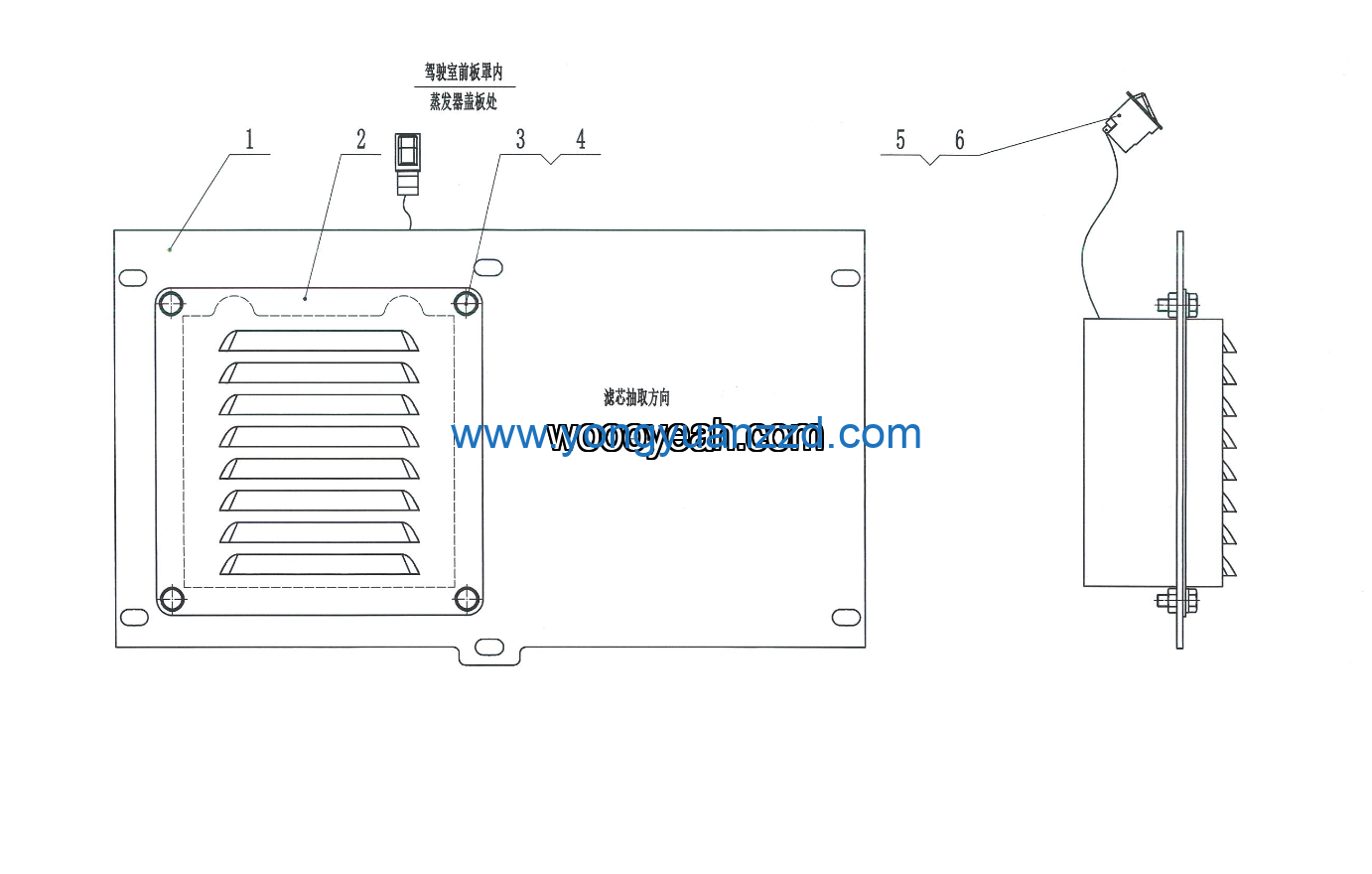

LGMG Off-Highway Dump Truck 2022 – Installation module of fresh air system – N1301-2713012535
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HW3A0A013
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Evaporator cover plate WS33002550317 | 4190704424 | 1 |
| 2 | Fresh air sys assy | 4190704008 | 1 |
| 3 | Bolt GB5783-M6*16EpZn-8.8 | 4011000289 | 4 |
| 4 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 5 | Wire | 27130130321 | 1 |
| 6 | Fresh air sys rocker switch JK939C | 4130701609 | 1 |
