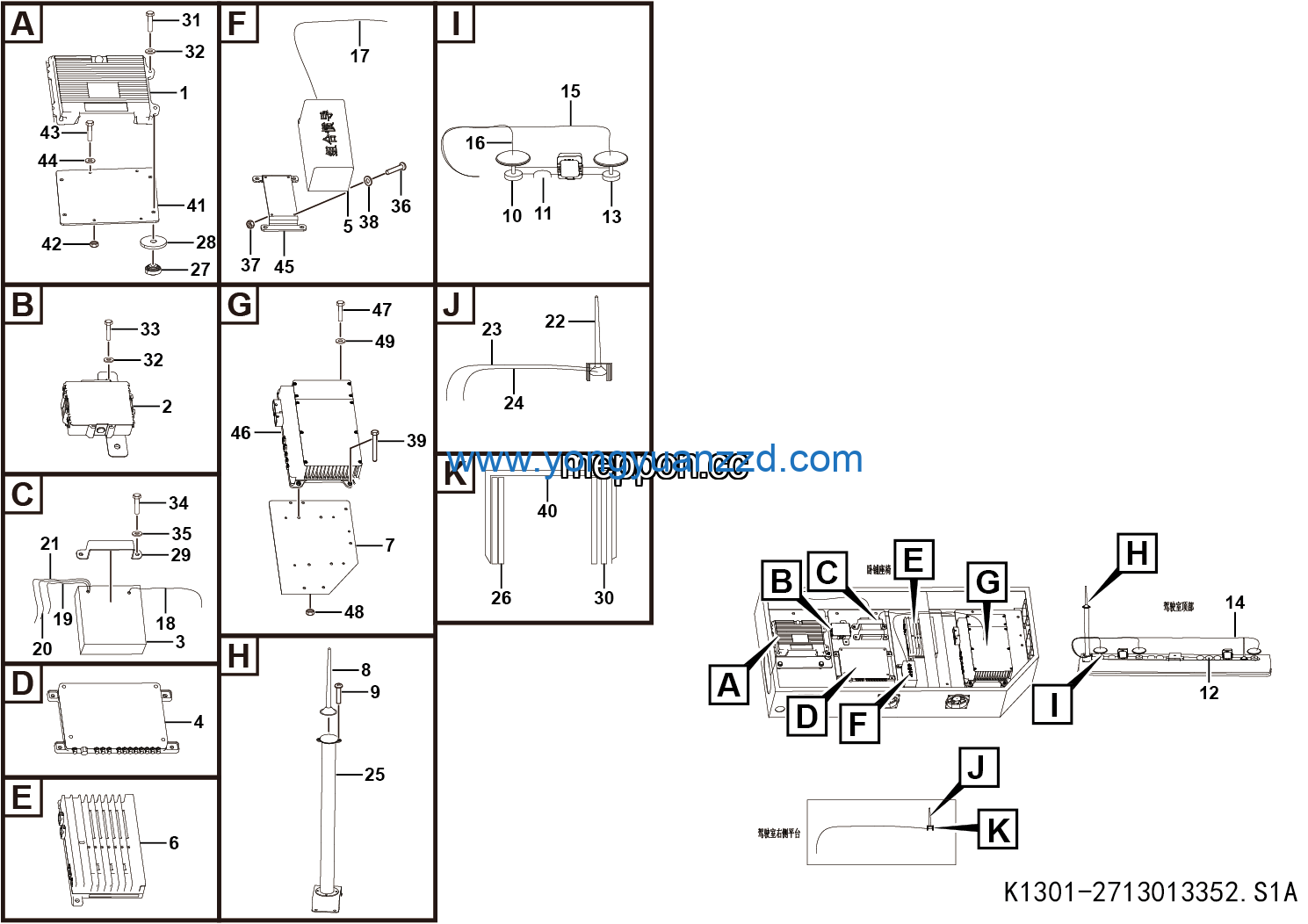

LGMG Off-Highway Dump Truck 2022 – Intelligent driving equipment assy – K1301-2713013352.S1A
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Satellite navigation antenna assy | 4130704783 | 1 |
| 2 | GPS+BDS | 4130704796 | 1 |
| 3 | Antenna 5G | 4130704797 | 1 |
| 4 | GPS antenna assy | 4130704793 | 1 |
| 5 | Satellite navigation radio frequency wire | 4130704784 | 1 |
| 6 | GPS antenna | 4130704794 | 1 |
| 7 | Satellite navigation radio frequency wire | 4130704785 | 1 |
| 8 | Integrated navigation harness | 4130704782 | 1 |
| 9 | Gigabit cable 0.5m | 4130704789 | 1 |
| 10 | Vehicle ethernet 1 | 4130704788 | 1 |
| 11 | VCU assy | 4130704811 | 1 |
| 12 | Gigabit cable 1m | 4130704790 | 1 |
| 13 | Gigabit cable 2m | 4130704791 | 1 |
| 14 | Fiberglass antenna 5G | 4130704798 | 1 |
| 15 | Fiberglass antenna adapter cable 5G 1 | 4130704799 | 1 |
| 16 | Fiberglass antenna adapter cable 5G 2 | 4130704800 | 1 |
| 17 | Support | 27130132931 | 1 |
| 18 | Rubber backing plate Ⅰ | 4190707618 | 1 |
| 19 | Radar shock absorber | 4190707613 | 4 |
| 20 | Rubber shock pad | 27130132921 | 4 |
| 21 | Switch pressure plate | 4190707617 | 2 |
| 22 | Ultrasonic radar controller | 4130704803 | 1 |
| 23 | Rubber backing plate Ⅱ | 4190707619 | 1 |
| 24 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 4 |
| 25 | Washer GB97.1-6EpZn-300HV | 4015000207 | 30 |
| 26 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 22 |
| 27 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 28 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 29 | Screw GB818-M3*20EpZn-4.8 | 4014000183 | 1 |
| 30 | Nut GB6170-M3EpZn-8 | 4013000159 | 4 |
| 31 | Washer GB97.1-3EpZn-300HV | 4015000200 | 8 |
| 32 | Bolt GB5783-M6*40EpZn-8.8 | 4011000440 | 8 |
| 33 | Industrial switch 12V | 4130704787 | 1 |
| 34 | Fixed pipe clamp | 4190707620 | 1 |
| 35 | Vcu | 27130133541 | 1 |
| 36 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 37 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 38 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 39 | Bracket | 27130133551 | 1 |
| 40 | 24/12VDCDC | 4130705006 | 1 |
| 41 | Bolt GB5783-M4*20EpZn-8.8 | 4011000615 | 4 |
| 42 | Nut GB6170-M4EpZn-8 | 4013000025 | 4 |
| 43 | Washer GB96.1-4EpZn-300HV | 4015000302 | 4 |
| 44 | V2X Module | 4130704792 | 1 |
| 45 | Integrated navigation | 4130704781 | 1 |
| 46 | Adapter box MDC-MTB | 4130704840 | 1 |
| 47 | MDC300 | 4130704786 | 1 |
| 48 | Antenna V2X-V2V | 4130704795 | 1 |
| 49 | Screw GB846-ST4.2*16-C-H | 4014000247 | 4 |
