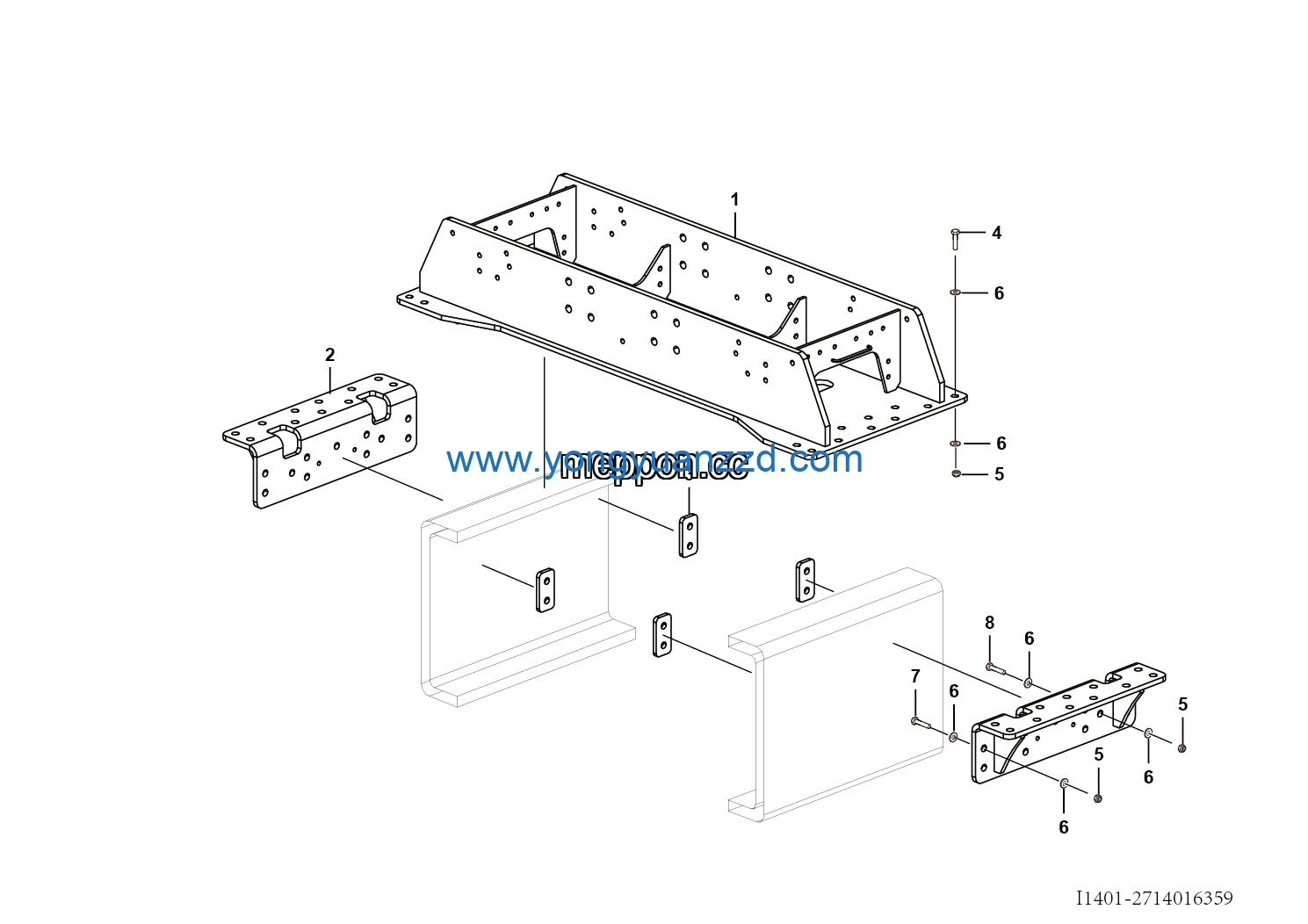

LGMG Off-Highway Dump Truck 2022 – Lift support mounting assy – I1401-2714016359
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lifting support | 27140161661 | 1 |
| 2 | Seat | 27140156541 | 2 |
| 3 | Plate | 27140116981 | 4 |
| 4 | Bolt GB5786-M16*1.5*55flZnyc-12.9-480 | 4011010640 | 22 |
| 5 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 44 |
| 6 | Washer GB1230-16EpZn-45 | 4015000001 | 88 |
| 7 | Bolt GB5785-M16*1.5*80flZnyc-12.9-480 | 4011010592 | 8 |
| 8 | Bolt GB5785-M16*1.5*70flZnyc-12.9-480 | 4011010598 | 14 |
