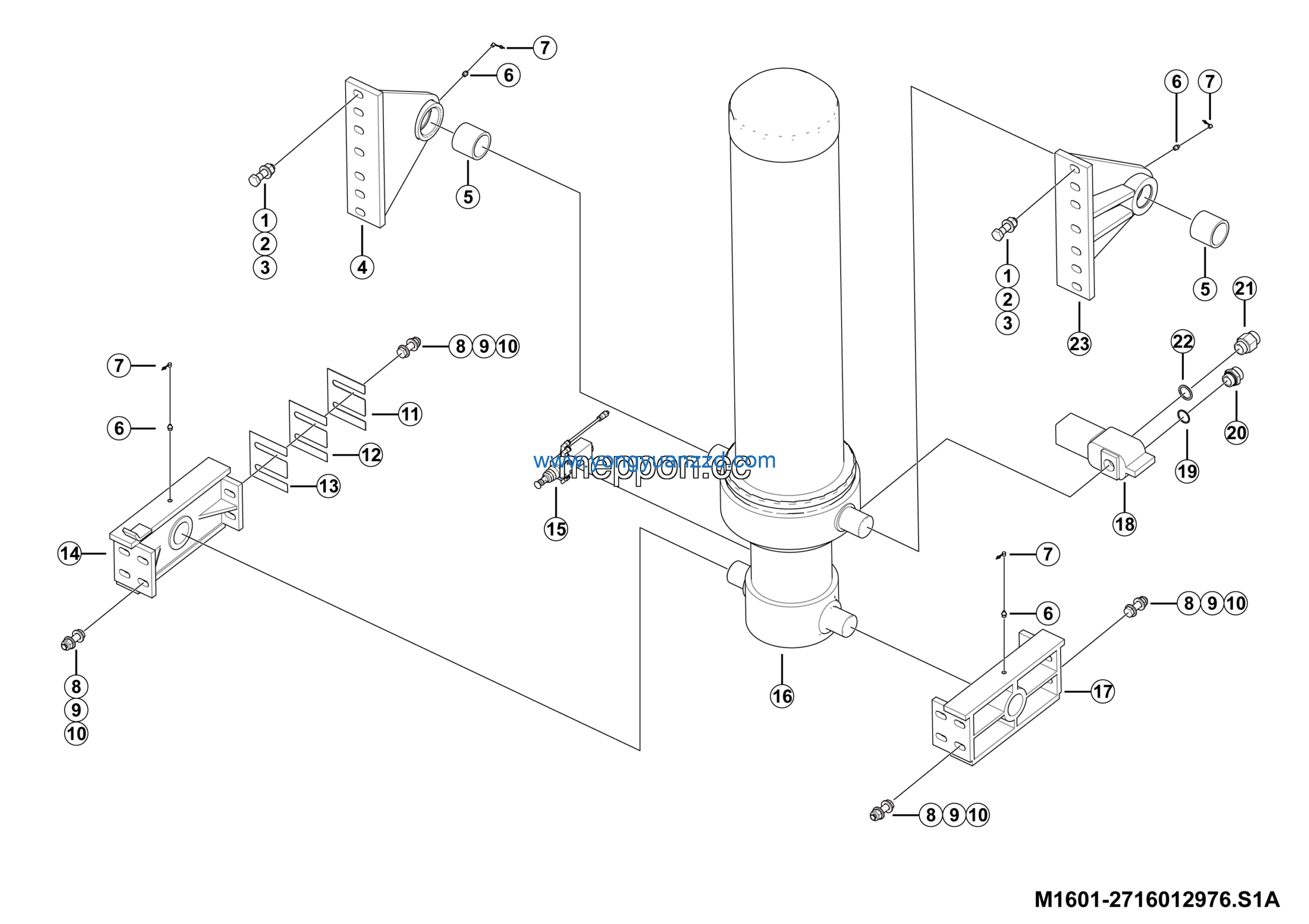

LGMG Off-Highway Dump Truck 2022 – LIFTING CYLINDER ASSEMBLY – M1601-2716012976.S1A
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HWE67
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 16 |
| 2 | Trimmed gasket | 27160106431 | 1 |
| 3 | Trimmed gasket | 27160106421 | 1 |
| 4 | Trimmed gasket | 27160106411 | 1 |
| 5 | Frame bracket | 27160106881 | 1 |
| 6 | Limit valve | 4120001018 | 1 |
| 7 | Lifting cylinder 4TG-FV180*4750ZZ-A | 4120001750 | 1 |
| 8 | Frame bracket | 4120001008 | 1 |
| 9 | Lifting valve | 4120002126 | 1 |
| 10 | O-ring GB3452.1-32.5*2.65G | 4030000276 | 1 |
| 11 | Bolt GB5782-M18*65flZnyc-12.9-480 | 4011010912 | 14 |
| 12 | Joint g1-m36 | 27160109621 | 1 |
| 13 | Check valve | 4120002308 | 1 |
| 14 | Washer JB982-33 | 4015000143 | 1 |
| 15 | Left bracket | 27160111831 | 1 |
| 16 | Washer GB1230-18EpZn-45 | 4015010219 | 14 |
| 17 | Nut GB6185.1-M18flZnyc-12-480 | 4013010321 | 14 |
| 18 | Right bracket | 27160111811 | 1 |
| 19 | Shaft sleeve LGB302-60*65B3 | 4043010018 | 2 |
| 20 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 21 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 22 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 16 |
| 23 | Washer GB1230-16EpZn-45 | 4015000001 | 30 |
