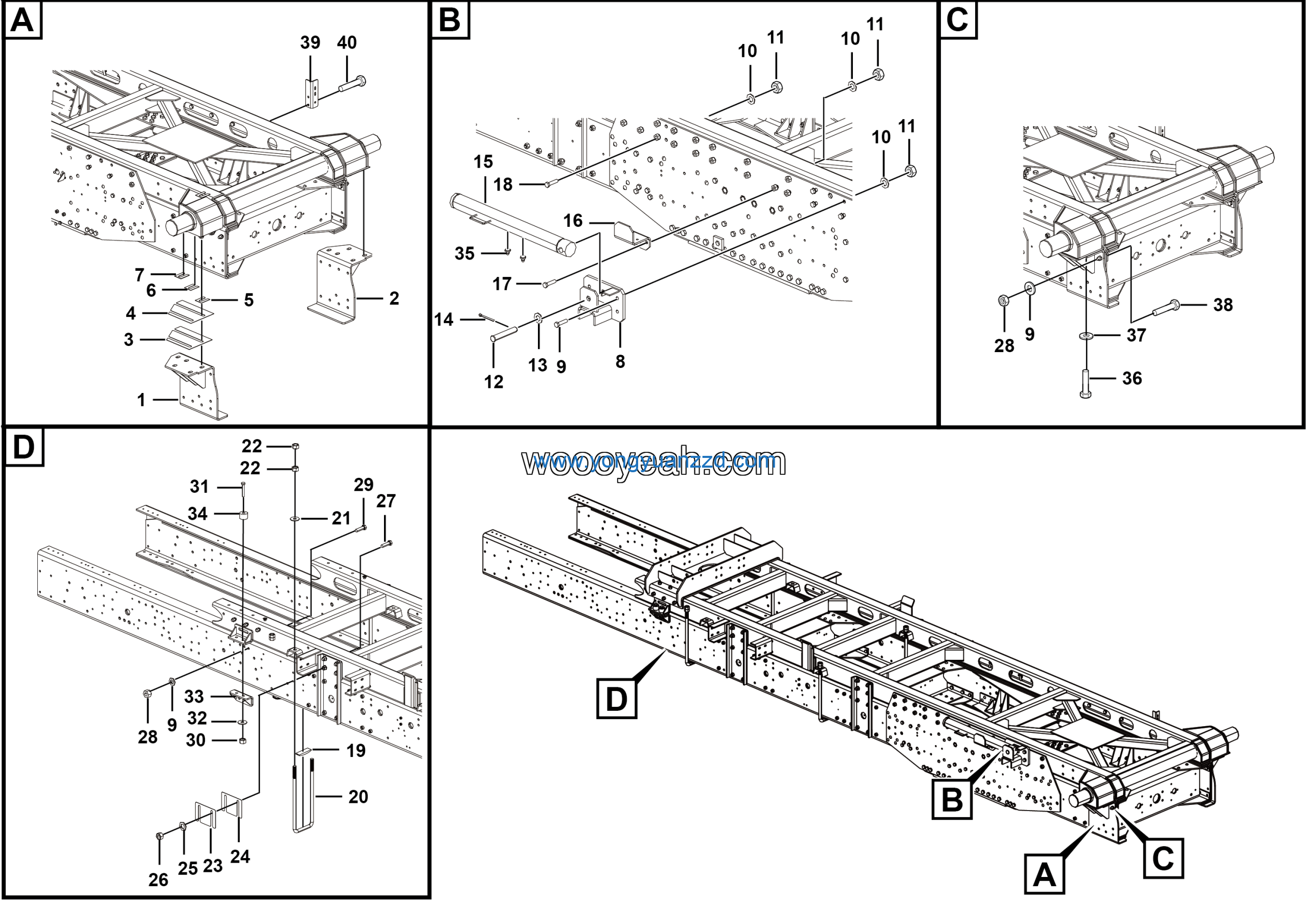

LGMG Off-Highway Dump Truck 2022 – Main & sub frame connecting assy – I1500-2740010285
Category: 2022 > Off-Highway Dump Truck > MT86M > ?M086MWA30
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-16EpZn-300HV | 4015000181 | 132 |
| 2 | Nut GB6170-M16EpZn-8 | 4013000016 | 48 |
| 3 | Hose assembly | 27400103401 | 1 |
| 4 | WASHER GB97.1-34EpZn-300HV | 4015010301 | 1 |
| 5 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 1 |
| 6 | BEAM | 27400103481 | 1 |
| 7 | Assembly | 27170117352 | 1 |
| 8 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 2 |
| 9 | Bolt GB5783-M16*45EpZn-8.8 | 4011000205 | 42 |
| 10 | Plate | 27400104181 | 8 |
| 11 | PLATE | 27400101914 | 1 |
| 12 | PLATE | 27400103492 | 8 |
| 13 | Washer GB97.1-24EpZn-300HV | 4015000167 | 16 |
| 14 | PLATE | 27400103501 | 16 |
| 15 | Adjustment gasket | 27400102122 | 6 |
| 16 | Adjustment gasket | 27400102132 | 6 |
| 17 | Washer GB97.1-18EpZn-300HV | 4015000182 | 48 |
| 18 | Nut GB6171-M18*1.5flZnyc-12-480 | 4013010257 | 24 |
| 19 | Bolt GB5785-M18*1.5*50flZnyc-12.9-480 | 4011010829 | 24 |
| 20 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 14 |
| 21 | Bolt GB5783-M16*55flZnyc-12.9-480 | 4011010617 | 6 |
| 22 | Plate | 27400101894 | 1 |
| 23 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 24 | BOLT GB5785-M16*1.5*100flZnyc-12.9-480 | 4011010594 | 4 |
| 25 | No longer used | 4015000305 | 8 |
| 26 | Seat | 27170133151 | 2 |
| 27 | Block | 27170133181 | 4 |
| 28 | Fastening bolt damping block | 27170140901 | 2 |
| 29 | BOLT GB5783-M20*35flZnyc-12.9-480 | 4011010687 | 10 |
| 30 | Washer GB1230-20EpZn-45 | 4015000002 | 10 |
| 31 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 8 |
| 32 | PLATE | 27170128381 | 1 |
| 33 | Plate | 27400102023 | 2 |
| 34 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 35 | Plate | 27400102041 | 2 |
| 36 | Plate | 27170117521 | 2 |
| 37 | Adjusting shim | 27170117261 | 2 |
| 38 | Plate | 27170117511 | 2 |
| 39 | PLATE | 27400103411 | 1 |
| 40 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 5 |
