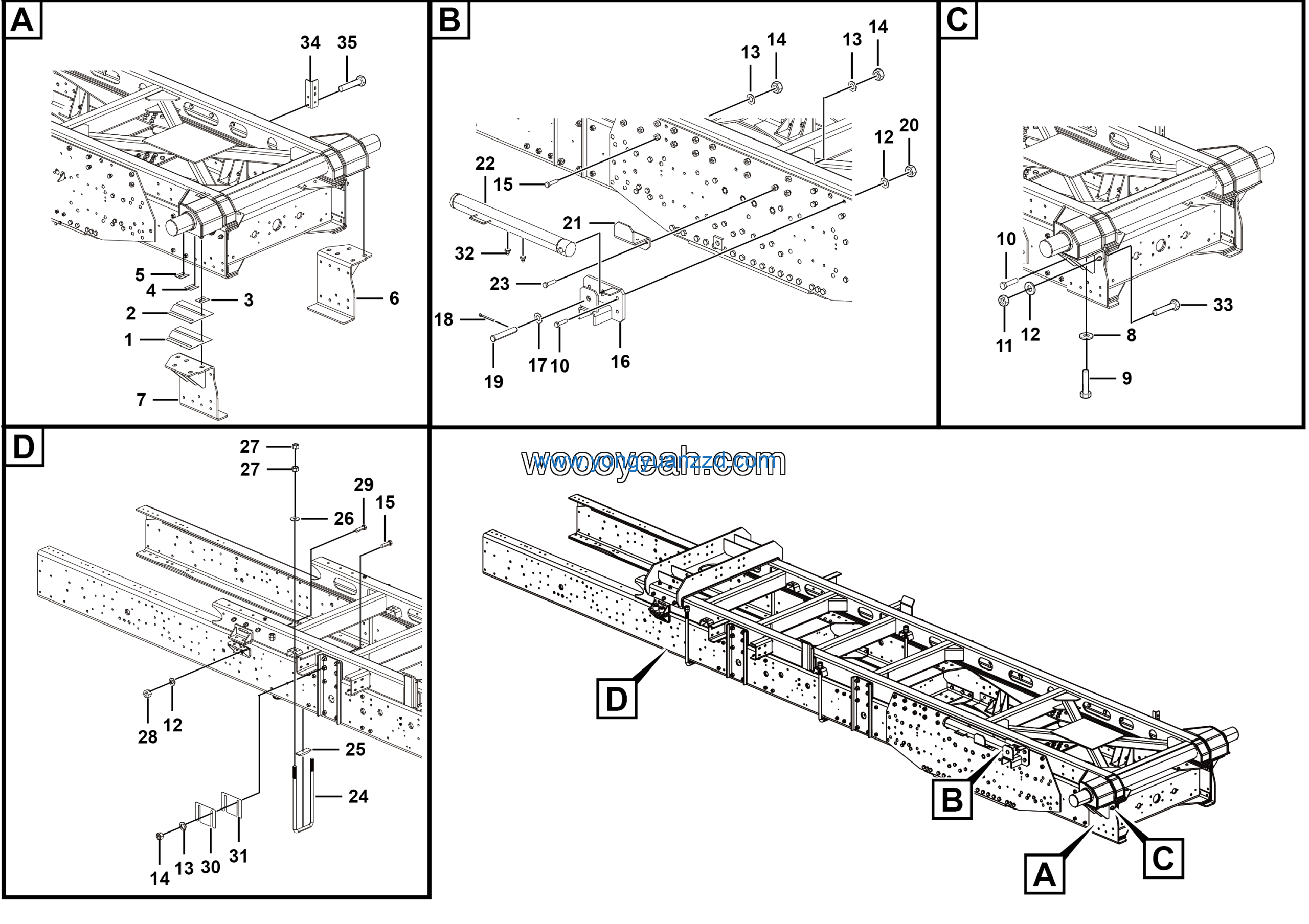

LGMG Off-Highway Dump Truck 2022 – Main & sub frame connecting assy – I1500-2740010329
Category: 2022 > Off-Highway Dump Truck > MT50D > M050DW3A0M003-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 6 |
| 2 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 8 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 36 |
| 4 | Washer GB97.1-14EpZn-300HV | 4015000177 | 76 |
| 5 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 38 |
| 6 | Bolt GB5783-M14*40flZnyc-12.9-480 | 4011010750 | 36 |
| 7 | Seat | 27170125392 | 1 |
| 8 | Washer GB97.1-30EpZn-300HV | 4015000119 | 1 |
| 9 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 1 |
| 10 | Pin GB882-B28*160EpZn-35 | 4016010117 | 1 |
| 11 | SQACER SHIM | 27400100891 | 2 |
| 12 | Nut GB6170-M16EpZn-8 | 4013000016 | 4 |
| 13 | Assembly | 27170117352 | 1 |
| 14 | HOSE ASSEMBLY | 27170125411 | 1 |
| 15 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 2 |
| 16 | BOLT | 27400100841 | 6 |
| 17 | Plate | 27400100941 | 6 |
| 18 | Washer GB97.1-20EpZn-300HV | 4015000176 | 12 |
| 19 | Nut GB6171-M20*2-10 | 4013010165 | 24 |
| 20 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 12 |
| 21 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 6 |
| 22 | SQACER SHIM | 27400100931 | 2 |
| 23 | Adjusting plate 2 | 27400100311 | 2 |
| 24 | Adjusting plate 1 | 27400100301 | 2 |
| 25 | Fastening bolt damping block | 27170140901 | 2 |
| 26 | Bolt GB5783-M16*55flZnyc-12.9-480 | 4011010617 | 6 |
| 27 | PLATE | 27170128381 | 1 |
| 28 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 29 | Plate | 27170117511 | 2 |
| 30 | Adjusting shim | 27170117261 | 2 |
| 31 | Plate | 27170117521 | 2 |
| 32 | Plate | 27400100901 | 1 |
| 33 | Plate | 27400100851 | 1 |
| 34 | Washer GB1230-16EpZn-45 | 4015000001 | 10 |
| 35 | Bolt GB5783-M16*35EpZn-8.8 | 4011000095 | 10 |
