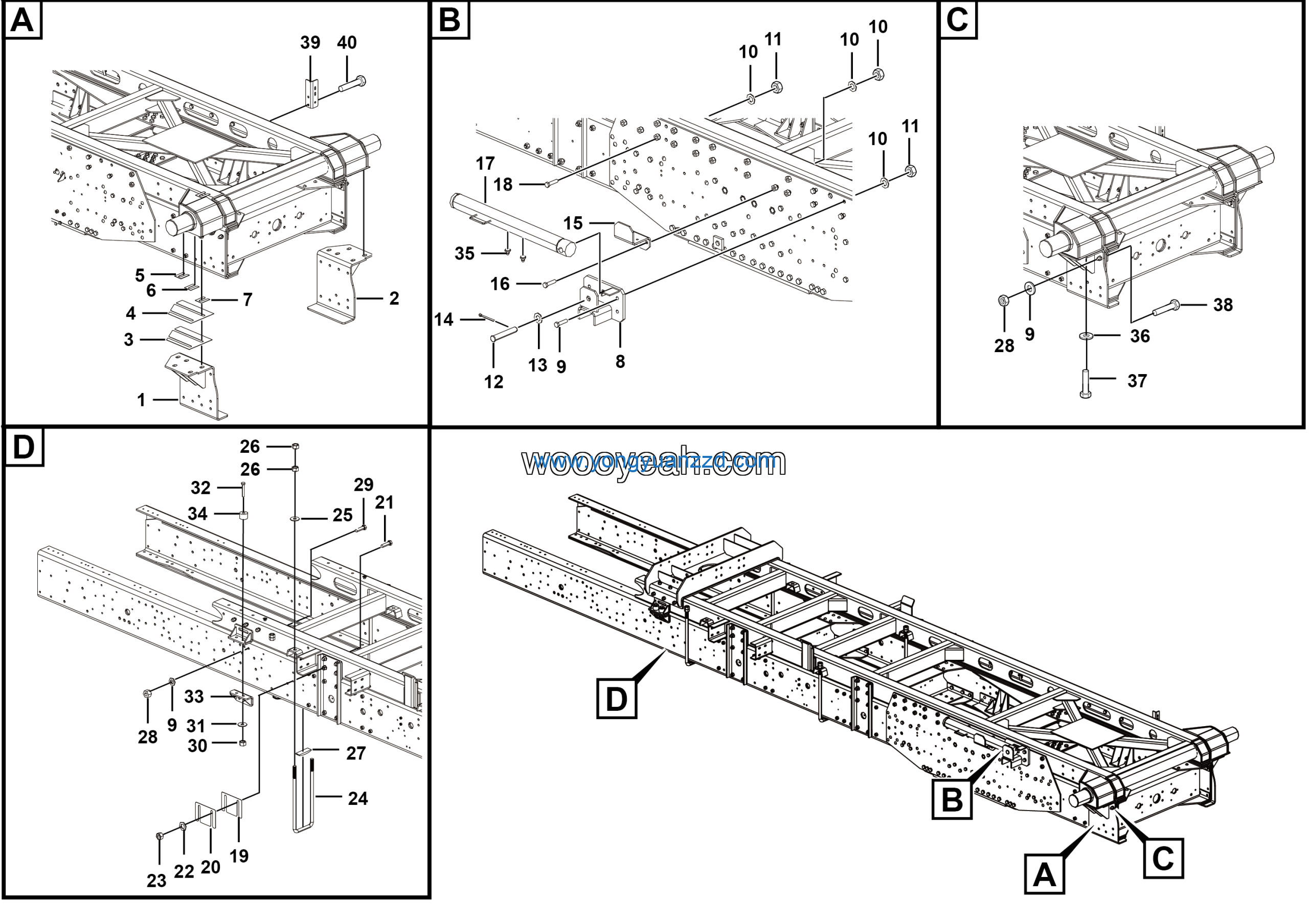

LGMG Off-Highway Dump Truck 2022 – Main & sub frame connecting assy – I1501-2740010274
Category: 2022 > Off-Highway Dump Truck > MT60 > M060DW2E0M005
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-16EpZn-300HV | 4015000181 | 102 |
| 2 | Nut GB6170-M16EpZn-8 | 4013000016 | 37 |
| 3 | Pin GB882-B28*160EpZn-35 | 4016010117 | 1 |
| 4 | Washer GB97.1-30EpZn-300HV | 4015000119 | 1 |
| 5 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 1 |
| 6 | Assembly | 27170117352 | 1 |
| 7 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 2 |
| 8 | ASSEMBLY | 27170117461 | 1 |
| 9 | Bolt GB5783-M16*45EpZn-8.8 | 4011000205 | 31 |
| 10 | Adjustment gasket | 27400102132 | 4 |
| 11 | Base assembly | 27400106491 | 1 |
| 12 | Adjustment gasket | 27400102122 | 4 |
| 13 | Bolt GB5783-M18*50EpZn-8.8 | 4011000364 | 16 |
| 14 | Washer GB97.1-18EpZn-300HV | 4015000182 | 32 |
| 15 | NUT GB6170-M18EpZn-8 | 4013000018 | 16 |
| 16 | Beam | 27400101392 | 4 |
| 17 | Washer GB97.1-20EpZn-300HV | 4015000176 | 8 |
| 18 | Nut GB6171-M20*2-10 | 4013010165 | 16 |
| 19 | Bear plate | 27400105281 | 4 |
| 20 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 14 |
| 21 | Bolt GB5783-M16*55flZnyc-12.9-480 | 4011010617 | 6 |
| 22 | Base assembly | 27400106461 | 1 |
| 23 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 24 | No longer used | 4015000305 | 8 |
| 25 | BOLT GB5785-M16*1.5*100flZnyc-12.9-480 | 4011010594 | 4 |
| 26 | Seat | 27170133151 | 2 |
| 27 | Block | 27170133181 | 4 |
| 28 | Fastening bolt damping block | 27170140901 | 2 |
| 29 | Washer GB1230-20EpZn-45 | 4015000002 | 10 |
| 30 | BOLT GB5783-M20*35flZnyc-12.9-480 | 4011010687 | 10 |
| 31 | Bolt GB5782-M16*65flZnyc-12.9-480 | 4011010556 | 8 |
| 32 | PLATE | 27170128381 | 1 |
| 33 | Plate | 27170117521 | 2 |
| 34 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 35 | Adjusting shim | 27170117261 | 2 |
| 36 | Plate | 27170117511 | 2 |
| 37 | Plate | 27400102023 | 2 |
| 38 | Plate | 27400102041 | 2 |
| 39 | Seat | 27170125392 | 1 |
| 40 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 4 |
