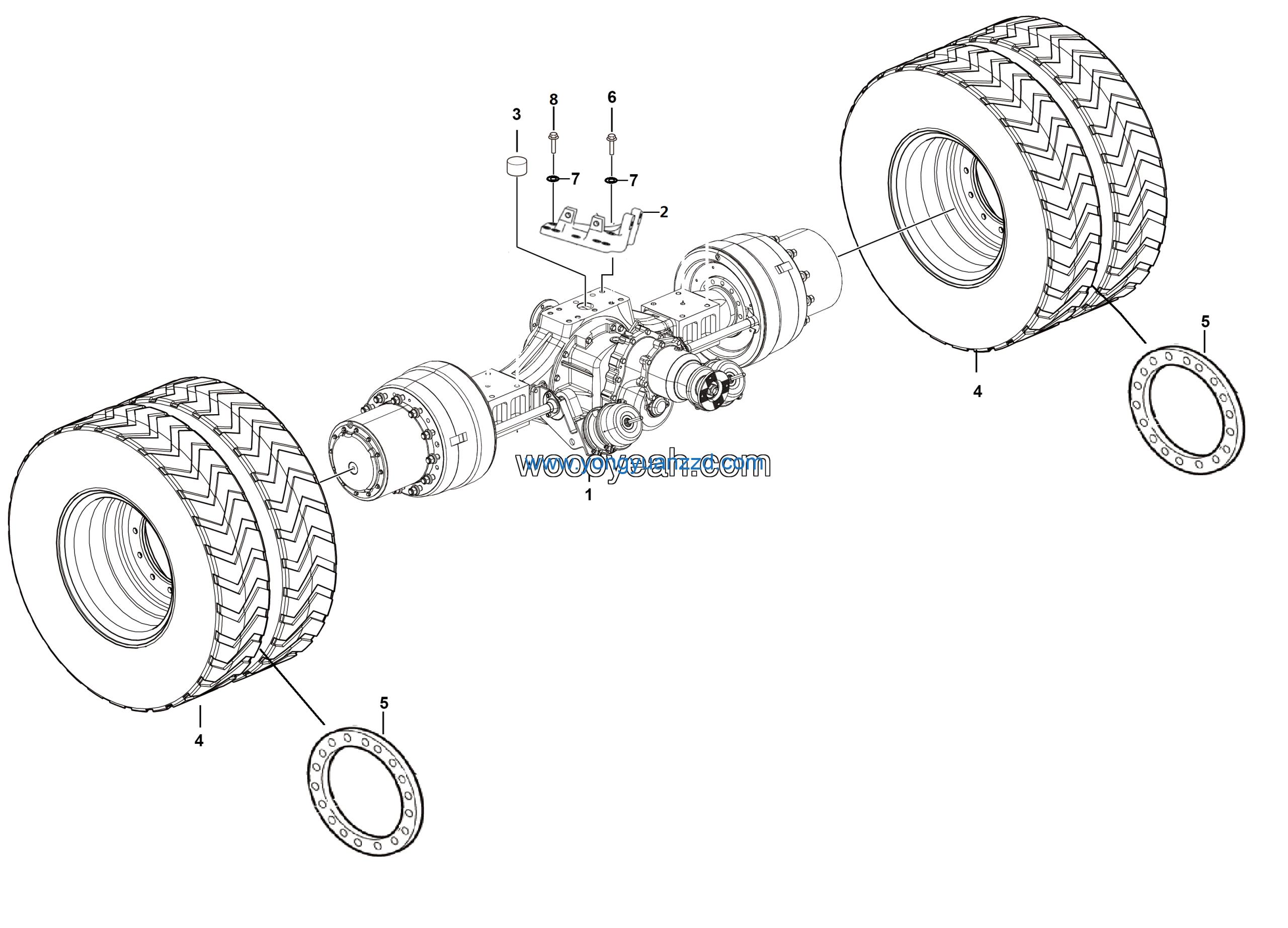

LGMG Off-Highway Dump Truck 2022 – Mid axle mounting assy HD40T（i=16.641） – E0701-2707010548.S1A
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Mid axle assy HD40T（i=16.641） | 4110703133 | 1 |
| 2 | Support saddle | 27070104541 | 1 |
| 3 | Locating pin | 27070101441 | 1 |
| 4 | Wheel assembly | 27060105381 | 4 |
| 5 | Dummy plate | 27070104401 | 2 |
| 6 | BOLT GB5785-M24*2*80-12.9 | 4110001615 | 10 |
| 7 | Washer | 27120111491 | 11 |
| 8 | BOLT GB5785-M24*2*150-8.8 | 4011000117 | 1 |
