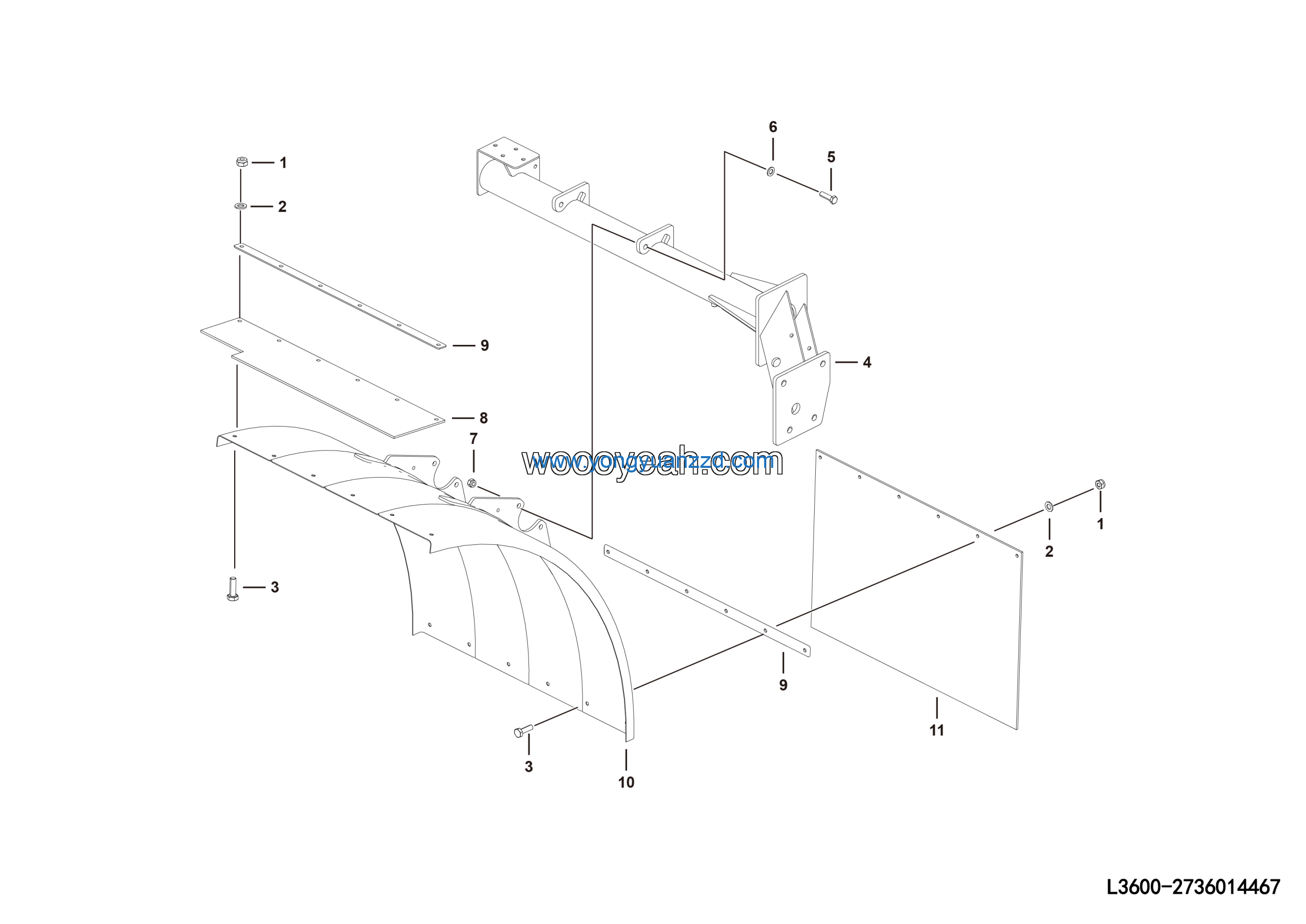

LGMG Off-Highway Dump Truck 2022 – Mudguard tile assy（RH） – L3600-2736014467
Category: 2022 > Off-Highway Dump Truck > MT106M > M106MW3A2M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Structural part | 27360144701 | 1 |
| 2 | Mudflap | 27360109252 | 1 |
| 3 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 4 | Washer GB97.1-8EpZn-300HV | 4015000072 | 12 |
| 5 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 12 |
| 6 | Structural part | 27360144681 | 1 |
| 7 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 9 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 10 | Rubber | 27360143151 | 1 |
| 11 | Hold-down plate | 27360112711 | 2 |
