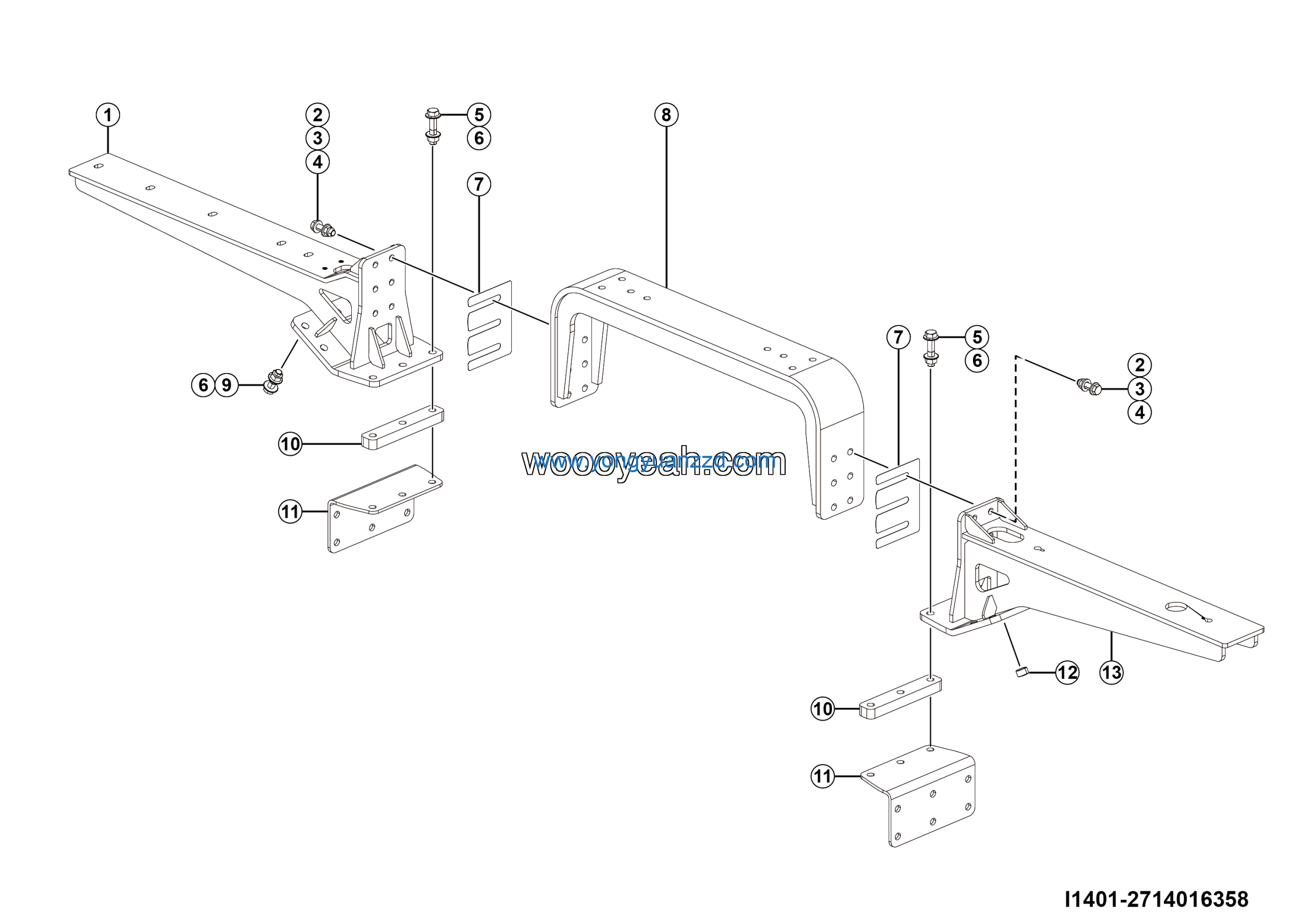

LGMG Off-Highway Dump Truck 2022 – Oil and gas bearing beam assy – I1401-2714016358
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A2A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27140162971 | 2 |
| 2 | Plate | 27120170881 | 2 |
| 3 | Cushion block | 27120113681 | 1 |
| 4 | Plate | 27140156701 | 1 |
| 5 | Frame weldment rh | 27140159541 | 1 |
| 6 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 12 |
| 7 | Washer GB1230-16EpZn-45 | 4015000001 | 24 |
| 8 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 12 |
| 9 | Bolt QC340.2-M18*1.5*80EpZn-10.9 | 4011011612 | 6 |
| 10 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 18 |
| 11 | Plate | 27140157121 | 8 |
| 12 | Plate | 27140157081 | 1 |
| 13 | Bolt QC340.2-M18*1.5*70EpZn-10.9 | 4011011599 | 12 |
